Random forest and spatial cross-validation performance in predicting species abundance distributions
Environmental Systems Research volume 13, Article number: 23 (2024)
Abstract
Random forests (RF) have been widely used to predict spatial variables. Several studies have shown that spatial cross-validation (CV) methods consistently cause RF to yield larger prediction errors compared to standard CV methods. This study examined the impact of species characteristics and data features on the performance of the standard RF and spatial CV approaches for predicting species abundance distribution. It compared the standard 5-fold CV, design-based validation, and three different spatial CV methods, such as spatial buffering, environmental blocking, and spatial blocking. Validation samples were randomly selected for design-based validation without replacement. We evaluated their predictive performance (accuracy and discrimination metrics) using artificial species abundance data generated by a linear function of a constant term (\(\beta _0\)) and a random error term following a zero-mean Gaussian process with a covariance matrix determined by an exponential correlation function. The model was tuned over multiple simulations to consider different mean levels of species abundance, spatial autocorrelation variation, and species detection probability. Here we found that the standard RF had poor predictive performance when spatial autocorrelation was high and the species probability of detection was low. Design-based validation and standard K-fold CV were found to be the most effective strategies for evaluating RF performance compared to spatial CV methods, even in the presence of high spatial autocorrelation and imperfect detection for random samples. For weakly or moderately clustered samples, they yielded good modelling efficiency but overestimated RF’s predictive power, while they overestimated modelling efficiency, predictive power, and accuracy for strongly clustered samples with high spatial autocorrelation. Globally, the checkerboard pattern in the allocation of blocks to folds in blocked spatial CV was found to be the most effective CV approach for clustered samples, whatever the degree of clustering, spatial autocorrelation, or species abundance class. The checkerboard pattern in spatial CV was found to be the best method for random or systematic samples with spatial autocorrelation, but less effective than non-spatial CV approaches. Failing to take data features into account when validating models can lead to unrealistic predictions of species abundance and related parameters and, therefore, incorrect interpretations of patterns and conclusions. Further research should explore the benefits of using blocked spatial K-fold CV with checkerboard assignment of blocks to folds for clustered samples with high spatial autocorrelation.
Introduction
Measuring abundance and distribution is a primary goal of ecologists, conservationists and managers (Royle and Dorazio 2009). Understanding population dynamics, community structure and the effects of management depends on the knowledge of species abundance and distribution, as well as related parameters, which can shed light on less obvious aspects of a community (McGill et al. 2007; Kellner and Swihart 2014; Baldridge et al. 2016; Su 2018). Abundance trends can serve as an early indicator of population collapse (Clements et al. 2017; Ceballos et al. 2020; Hastings et al. 2020). Therefore, to better inform spatial conservation planning, one needs to improve species monitoring and abundance prediction (Pauly and Froese 2010; Mi et al. 2017).
Recent developments in big data analysis have led to the development of several high-computational statistical methods with the potential for ecological data mining, enabling the use of machine learning (ML) techniques, to make reliable predictions from noisy and incomplete datasets (Cutler et al. 2007). One of the most popular ML techniques is the Random Forest (RF) (Breiman 2001; Saha et al. 2023). RF is already widely used in ecological research and outperforms most commonly used methods (Lawler et al. 2006; Prasad et al. 2006; Cutler et al. 2007; MartÃn et al. 2021). Unlike many conventional statistical analysis techniques, RF makes no distributional assumptions and can handle complex and nonlinear relationships between abundance and its environmental factors. It is also able to handle scenarios where the number of predictors significantly exceeds the number of observations (Kuhn and Johnson 2013; Scornet 2016; Zurell et al. 2016; Zhang et al. 2020).
Temporal and spatial processes often cause autocorrelation in ecological data, leading to model errors and overfitting (Legendre and Fortin 1989; Miller et al. 2007; Roberts et al. 2017). The independence problem is theoretically solved by models that take into account the dependence structure, and this should allow model fit assessment and model selection using conventional parametric techniques. In practice, however, due to specification errors, structural overfitting, and other problems, parametric model evaluations may not perform as well as they should (Dormann et al. 2007; Miller et al. 2007). Reliable non-parametric approaches are required for ML models performance assessment, which represents a critical stage in the modelling process (Roberts et al. 2017).
In ecology, this typically involves the measurement of how well predictions match field observations (Franklin 2010; Peterson et al. 2012; Guisan et al. 2017). Ideally, prediction errors and model validation should be computed using independent data. However, in most cases, such independent data are not available (Araújo et al. 2005; Franklin 2010; Radosavljevic and Anderson 2014). Therefore, cross-validation (CV) is used to estimate the predicted error on a single dataset (Hastie et al. 2009).
Many studies show that the dependence structure can compromise the independence of the validation dataset, leading to overly optimistic estimates of prediction error (Wenger and Olden 2012; Bahn and McGill 2013; Roberts et al. 2017; Meyer et al. 2019; Ploton et al. 2020). Spatial dependence in modelling is a complex issue due to factors such as model misspecification, omission of important covariates and processes such as localised dispersal or social behaviour (Fletcher and Fortin 2018). It is important in ecological modelling and conservation because predictive models often rely on random and independent observations, violating the relationship between distance and similarity in geography and ecological theory (Tobler 1979; Legendre and Fortin 1989; Miller et al. 2007). Incorporating spatial dependence into models may enhance understanding of effects of different explanatory variables, resulting in better statistical inference and subsequent ecological interpretation of patterns observed (Miller et al. 2007; Fletcher and Fortin 2018).
In recent years, there has been a debate about the best way to separate training and validation datasets (Bahn and McGill 2013; Radosavljevic and Anderson 2014; Wenger and Olden 2012). Stone (1974), argued that random data partitioning does not generate independent validation datasets when dependence structures are present in the data because calibration points are not statistically independent from validation points. Consequently, many CV techniques have been developed and are now used in ecological studies to obtain supposedly unbiased error and parameter estimates (Shao 1993; Kohavi 1995; Rykiel 1996).
To correct for the bias in error estimates produced by these approaches, adjustments based on spatially separated training and testing datasets have been proposed to assess whether the model performs as well at closer as at more distant sites (Telford and Birks 2009; Amesbury et al. 2013). Their main focus is to increase the independence of CV by appropriately partitioning the data into blocks and accounting for the dependence structure to prevent overfitting (Dormann et al. 2007; Trachsel and Telford 2016). However, only a small number of studies have clearly shown that the estimates obtained from blocked CV are quite close to the ’true’ error that would be expected for a data set that is truly independent (Roberts et al. 2017).
Numerous studies have shown that spatial CV approaches consistently produce higher prediction errors compared to the standard random CV (Araújo et al. 2005; Veloz 2009; Arlot and Celisse 2010; Lieske and Bender 2011; Roberts and Hamann 2012; Wenger and Olden 2012; Bahn and McGill 2013; Radosavljevic and Anderson 2014; Wadoux et al. 2021). Although spatial block CV addresses spatial autocorrelation, a new validation problem may arise if block structures follow environmental gradients, which could prevent the use of large regions of predictor space (Snee 1977). As a result, to predict the hold-out data, the model must extrapolate beyond the ranges or into novel combinations of predictor values from those contained in the training folds (Zurell et al. 2012).
Wadoux et al. (2021) provided evidence that estimates based on both non-spatial and spatial CV can be biased, and spatial CV does not improve the predictive performance. They stated that recent research on spatial CV approaches in ecology has led to a misunderstanding of statistical validation in a spatial context. When validating via design-based inference, validation sites may be physically close to calibration sites, so they recommended sticking to rigorous statistical validation procedures using probability sampling and design-based inference. The design-based approach assumes that validation samples used to estimates performance metrics are based on classical sampling theory (Cochran 1977; Gruijter et al. 2006; Gregoire and Valentine 2007). Whether or not two randomly selected locations are drawn from a spatially structured population, prediction errors arise independently at each location (Gregoire and Valentine 2007; Brus 2021). Recent studies acknowledge that situations where samples are highly clustered, can still pose challenges for evaluating models using non-spatial CV methods (de Bruin et al. 2022).
However, many studies that have recently investigated the performance of spatial CV methods used random assignment of blocks to folds in modelling above-ground forest biomass (Brenning 2005; Lyons et al. 2018; Valavi et al. 2019; de Bruin et al. 2022; Wang et al. 2023). This research investigates how different methods of assigning blocks to folds may affect blocked spatial CV methods. Blocks to folds are one of the essential processes in species modelling, as species data are rarely evenly distributed across the landscape (Valavi et al. 2019). Considering species and data features (abundance class, imperfect detection, sampling method, sample size and spatial autocorrelation), this article provides practical guidance on using spatial CV to evaluate the predictive effectiveness, power and accuracy of the RF in ecological research. The standard 5-fold CV, the design-based validation, and three different blocking strategies: spatial blocking, spatial buffering, and environmental blocking were all tested to achieve this goal. Random, systematic, and checkerboard pattern blocks-to-folds allocation strategies were tested.
Methods
Data simulation
We used artificial species data to assess the performance of the standard RF and spatial CV approaches in predicting species abundance in a geographical area. The advantage of generating artificial data is that we have full knowledge and control over the factors under investigation, whereas we are often unfamiliar with the empirical distributions of the data when comparing models with real data (Hirzel et al. 2001; Austin et al. 2006; Meynard and Quinn 2007). We generated datasets as proposed by Guélat and Kéry (2018) to assess the impact of blocking strategies on the effectiveness of the random forest algorithm in predicting species abundance in ecology, taking into account imperfect detection and spatial autocorrelation. We generated 250 datasets within an 80*80 cell landscape of 6400 cells for each case. The dependent variable was the result of two random processes, while the independent variable was generated using a normal distribution. The following models were used to generate the datasets:
At each location, i, the first random process returns the true latent abundance \(N_i\), \(\lambda \) is the expected abundance values. \(\beta _0\) represents a constant term contributing to abundance, \(\beta \) is the growth rate coefficient of the exponential function, \(x_i\) is a continuous covariate, \(\rho _i\) is a spatially autocorrelated random effect generated by an exponential correlation function and \(\gamma \) represents the spatial autocorrelation’s variation strength. We used \(\beta = 0.8\) for all generated species abundance, \(\beta _0 = -0.6\) and \(\gamma = 0.5\) for rare species with low spatial autocorrelation; \(\beta _0 = -1.5\) and \(\gamma = 1.5\) for rare species with high spatial autocorrelation; \(\beta _0 = 1.8\) and \(\gamma = 0.5\) for common species with low spatial autocorrelation; \(\beta _0 = 0.8\) and \(\gamma = 1.5\) for common species with high spatial autocorrelation (Guélat and Kéry 2018).
The strength of pairwise correlation in the landscape is defined by the covariance matrix of the multivariate normal (MVN) distribution and the distance \(d_{ij}\) between sites i and j. In addition, \(\sigma ^2\) denotes the spatial variance and \(\theta \) is the scale parameter that determines the distance-dependent decay of spatial autocorrelation in expected species abundance. In other words, the distance-based strength of pairwise correlations in the landscape is determined by the covariance matrix of the multivariate normal distribution. The second random process produces the observed data, the counts \(C_{it}\) at site i during visit t, and is linked to the outcome of the first (i.e. conditional on \(N_i\)). This second process is a description of the error in the measurement of abundance and is governed by the probability of detection p per visit. We used \(p = 0.3\) and \(p = 0.8\) respectively for low and high species probability of detection.
We have generated a total of 28 different categories of species (cases). These have been grouped into three scenarios. Table 1 shows the 28 different types of abundance data that were generated.
Data analysis
We used the standard RF to test the influence of three sampling methods on the predictive performance of five spatial CV and the standard 5-fold CV strategies in modelling species abundance distribution accounting for species features (abundance class and detection probability) and data features (sample size and spatial autocorrelation variation strength).
Random forest
RF is a data-driven statistical technique, primarily used for classification or regression, which improves prediction accuracy by combining a large number of decision trees (Breiman 2001; Prasad et al. 2006; Biau and Scornet 2016). RF focuses on iterative training of the algorithm rather than formulating a statistical model, which simplifies its mathematical formulation (Hengl et al. 2018). Its algorithm uses two powerful techniques: random subspace selection at each split and bagging of unpruned decision tree learners (Breiman et al. 1984; Breiman 1996; Amit and Geman 1997; Ho 1998; Dietterich 2004). The RF decision rule uses averaging for regression or a majority vote to classify the results produced from separate trees (Biau 2012).
In regression, RF predictions (\({\hat{\theta }}\)) are obtained by averaging results from a given number (\(B\)) of individual decision trees (\(t_b^*\)) based on generated bootstrap samples, such as (Breiman et al. 1984; Breiman 2001; Prasad et al. 2006; Biau and Scornet 2016; Hengl et al. 2018):
We used the fast implementation of the RF (ranger) function (Wright and Ziegler 2017) in R version 4.2.2 (R Core Team 2022) using default parameters for regression to predict observed abundance data (dependent variable) from a randomly generated standard normal distribution (independent variable). The focus of this work, however, is on the evaluation of blocking strategies in spatial CV approaches.
Explored samples

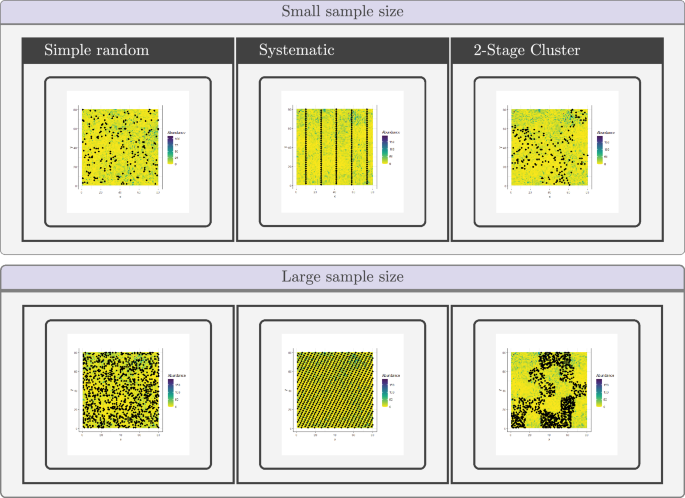

Sampling design is one of the most important factors determining the limits of results and interpretation of analyses in ecological research (Greig-Smith 1983; Kenkel et al. 1989; Goedickemeier et al. 1997). For spatially structured scenarios, we compared three common sampling techniques (Simple random sampling, systematic sampling, and two-stage cluster sampling) to better understand their influence on spatial CV methods.
-
Simple random sampling
The basic form of probability sampling is simple random sampling (SRS). In this sampling method, the probability of selecting any sample of a specific size remains unchanged for all possible samples. Therefore, each observation unit or individual in the population has the same probability, p, of being included in the sample, such as \((p=1/N)\), where N is the population size (West 2016). Despite its simplicity, it can be an effective sampling method under the right circumstances and serve as a theoretical basis for more complex sampling techniques (Yang and Laven 2021).
However, the SRS can be costly and sometimes is not practical because it demands that all items be identified and named before the sampling. Additionally, a basic SRS design may provide samples that are dispersed over a wide geographic area since it gives each potential sample of n units an equal chance of being chosen. However, implementing such a sample’s geographic distribution would be exceedingly expensive. In addition, subdomains are probably represented in the sample in proportion to the frequency they are found in the population. While this would be advantageous for some surveys, it would be problematic for those whose interest is centred on subgroups that comprise a small fraction of the population (Levy and Lemeshow 2013).
-
Systematic sampling Systematic sampling is a probability sampling where every \(n^{th}\) case following a random start is chosen. Let N be the population size and n the sample size required. In the case of systematic sampling, the sampling interval, represented by k, is defined first: \(k = \frac{N}{n}\), where k is the number of elements in the population to be skipped before moving on to the next. Then, randomly choose a starting number (r) between 1 and k. From r, select every \(k^{th}\) element until the required sample size is obtained. The sample is then given by: \(\text {Sample} = r, r+k, r+2k,\dots , r+(n-1)k\), where r is the random starting element and k is the sampling interval. Systematic sampling is commonly used in practice because it is simple to implement and can be taught to people with minimal experience in survey methodology. However, in reality, systematic sampling is perhaps the most extensively used method, alone or in conjunction with another method.
-
Two-stage cluster sampling
With this sampling technique, individuals from a limited population are grouped into clusters, which are bigger sampling units. A cluster sampling technique sampled a population of N clusters to create a set of (n) clusters. Typically, these clusters are referred to as primary sampling units, while the individuals inside each cluster are referred to as secondary sample units (Yang and Laven 2021). All secondary sampling units may be measured or observed within the original sampling units (one-stage cluster sampling), or the secondary sampling units may be sampled using SRS (two-stage cluster sampling). The chosen individuals then form a sample of the finite population within the chosen clusters (Cochran 1977).
The two-stage cluster sampling can be described as follows:
-
A sample of primary sampling units (clusters) is selected.
-
Select n clusters from the population, denoted \(C_1, C_2,..., C_n\).
-
Within each cluster selected, sample individuals:
-
For each selected cluster \(C_i\), let \(m_i\) be the number of individuals in the cluster \(C_i\).
-
Select a random sample of \(m_i\) individuals from the cluster \(C_i\), denoted as \(x_{11}, x_{12}, \dots , x_{1m_i}\).
The overall sample from the population consists of the individuals selected in the second stage, namely \(x_{11}, x_{12}, \dots , x_{1m_1}, x_{21}, x_{22},\dots , x_{2m_2}, \dots , x_{n1}, x_{n2},\dots , x_{nm_n}\).
The two most fundamental reasons for the widespread use of cluster sampling in large-scale sample research are feasibility and economics (Levy and Lemeshow 2013). This study used a specific case where K-means spatial clustering was performed using grid coordinates. First, from a grid of 6400 units, 25 clusters were formed. We then randomly selected 20 clusters for weakly clustered samples, 10 clusters for moderately clustered samples and 5 clusters for strongly clustered samples. We collected 10 and 50 units for small and large sample sizes, respectively, in each cluster. Figure 1 shows the sampled sites within each of the sampling designs.
-
Model validation
We used a design-based validation approach, the standard 5-fold CV and three spatial CV approaches to assess the RF predictive performance. Figure 2 is a schematic representation of the different CV strategies under consideration in this study using a random sample.
Design-based probability sampling
This study used simple random sampling, where each unit in a population has an equal probability of being selected in a sample of a given size (number of units). When sampling is probability-based, a design-based estimation can be used to estimate population validation parameters (Stehman 1999; Stehman and Foody 2009; Brus et al. 2011). The expected performance and the design-based performance for each dataset were obtained by randomly selecting training (75%) and test (25%) samples using the entire population (6400 grids) and sampled grids (sites), respectively. First, the training set is used for model fitting, and the fitted model is used for prediction in the holdout set (James et al. 2013).
Cross-validation methods
Cross-validation involves estimating the test’s error rate by excluding a subset of training observations from the calibration process and applying the test to the excluded observations. Four approaches were used to cross-validate the model’s performance.
-
Standard K-fold cross-validation: In K-fold cross-validation, the data set is randomly divided into K-folds or groups of approximately equal size, where each group is used as the test set and the remaining groups \((K-1)\) are used as the training set (Brownlee 2019), (Wadoux et al. 2021). This study used the five-fold CV. It has been empirically shown that \(K = 5\) or 10 provides estimates of the test error rate that do not suffer from excessive bias or variance (James et al. 2013). The standard K-fold cross-validation does not account for spatial autocorrelation.
-
Spatial K-fold cross-validation: The spatial K-fold CV differs from the random K-fold CV in the way in which the observations are divided into geographically structured sets (blocks). To ensure independence between CV folds, the aim is to group observations into spatially homogeneous clusters with sizes larger than the range of autocorrelation in the data (Valavi et al. 2019; Ploton et al. 2020; Wadoux et al. 2021). We assumed that each block size was 1.25 * the range of the variogram generated over the whole data set in the case of spatial autocorrelation, and considered the block size equal to the variogram range in the absence of spatial autocorrelation. Because species data are rarely evenly distributed across landscapes, one of the most important processes in modelling species is assigning blocks to folds (Valavi et al. 2019). We tested three techniques for the assignment of blocks to folds:
-
Random: blocks are randomly assigned to folds,
-
Systematic: blocks are numbered and sequentially assigned to folds,
-
In a checkerboard pattern: Although the checkerboard design involves only two folds, it effectively ensures that there are no adjacent blocks in any one fold.
In all spatial blocking scenarios, all data in the test folds are excluded from the training data sets. We used square blocks because these are the most common block form (Brenning 2005; Lyons et al. 2018; Valavi et al. 2019; Wang et al. 2023).
-
-
Buffered leave-one-out cross-validation: The buffering technique creates spatially distinct training and testing folds, considering a circular buffering of a predetermined radius around each observation point (Rest et al. 2014). During model calibration, observations that are close to a validation point by the defined radius, depending on the distance, are not taken into account (Ploton et al. 2020). The typical assumption is that this radius is larger than the range of a variogram that is performed on the whole data set or that is calculated on the residuals after the model calibration and the predictions (Ploton et al. 2020; Wadoux et al. 2021). In this study, r is equal to the size of the block as defined in the spatial K-fold cross-validation. In this method, only one observation is used for the validation set in each model run. The remaining \(n-1\) observations form the training set. This method is inspired by the ’leave-one-out’ scheme of cross-validation. In this case, each point that is left out corresponds to a fold or a block (Valavi et al. 2019).
-
Environmental Blocking: Based on the input variables, we used a K-means clustering technique to determine the number of clusters in environmental space, defining clusters of similar environmental conditions (Hartigan and Wong 1979). Within each cluster, one-fold was identified (Valavi et al. 2019).

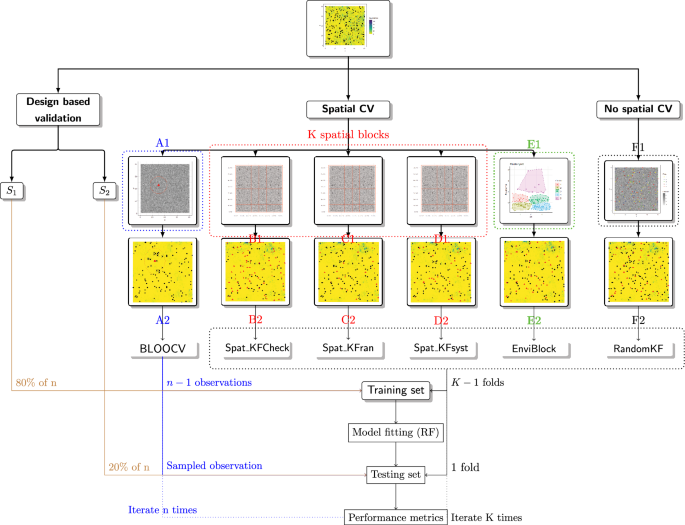

With, \(S_{1}\): random sample used to train the model, \(S_{2}\): random sample used to test the model, n: sample size, A1: sample 1 observation and exclude neighbours within a radius r; B1, C1 and D1: Split the observation into K spatial blocks of length greater than the range of the variogram. The block length is equal to the radius in BLOOCV. B, C and D represent checkerboard, random and systematic patterns in the assignment of blocks to folds. E1: Clustering of observations into K groups (K-means clustering in this study). Since the 5-fold CV requires at least 5 clusters, datasets with less than 5 clusters were not considered in this study. F1: Splitting of observations into K random folds (\(K = 5\)). A2, B2, C2, D2, E2 and F2 show how observations and/or blocks can be allocated in the training and test datasets. For blocked K-folds CV, \(K-1\) folds are assigned to the training set and one fold is assigned to the test set. For BLOOCV, the selected observation is assigned to the test dataset and the remaining observations are assigned to the training dataset, except observations within the exclusion radius. Training and test observations are represented by black and red dots. Crossed black dots are observations within BLOOCV’s exclusion buffer.
Predictive performance assessment
Performance metrics were averaged (mean) over 250 simulated data sets for each case to limit the influence of randomness associated with the different CV methods. Measures of accuracy and discrimination were used to assess the impact of the sampling strategy and the CV method on RF predictive performance. The CV approach that yields performance measures closest to the design-based method used on the whole population is the best. Results for all CV’s across the 250 replicates are summarised in box plots.
-
Accuracy: The bias and root mean square error (RMSE) were calculated as follows:
$$\begin{aligned} \text {RMSE}= & {} \sqrt{\frac{1}{n} \sum _{i=1}^{n}(O_i - P_i)^2}, \end{aligned}$$(6)$$\begin{aligned} \text {Bias}= & {} \frac{1}{n} \sum _{i=1}^{n}(O_i - P_i), \end{aligned}$$(7)where \(O_i\) and \(P_i\) refer to observed and predicted species abundance at sampled locations \(i\), respectively, and \(n\) is the number of sampled locations (number of observations).
-
Discrimination: The mean squared Spearman rank correlation coefficient \(R^2 = \rho _s^2\) between the predicted and observed abundance of species at the sampled sites and the modelling efficiency coefficient (MEC) of Nash and Sutcliffe (1970) were used.
The n raw observed \(O_i\) and predicted \(P_i\) are converted to ranks \(R(O_i)\), \(R(P_i)\) and (\(\rho _s\)) is defined as their Pearson correlation coefficient.
$$\begin{aligned} \rho _s = \frac{\text {cov}\left(R(O), R(P)\right)}{\sigma _{R(O)} \sigma _{R(P)}}, \end{aligned}$$(8)where \(\text {cov}(R(O), R(P))\) represents the covariance between the rank variables of \(O\) and \(P\), \(\sigma _{R(O)}\) and \(\sigma _{R(P)}\) are standard deviations of the rank variable of \(O\) and \(P\).
The MEC is calculated as:
$$\begin{aligned} \text {MEC} = 1 - \frac{\sum _{i=1}^{n}(O_i - P_i)^2}{\sum _{i=1}^{n}(O_i - {\bar{O}})^2}, \end{aligned}$$(9)where \(O_i\) and \(P_i\) refer to observed and predicted species abundance at sampled location \(i\), \(n\) is the number of sampled locations and \({\bar{O}}\) represents the mean observed species abundance across all sampled locations.
Since the different performance measures were either not normally distributed according to the Shapiro and Wilk (1965) test for normality, or had heterogeneous variance according to the Fligner and Killeen (1976) test for homogeneity of variances, or both, the Kruskal and Wallis (1952) test was used to determine the significant difference in predictive performance between the different cross-validation techniques. To compare their predictive performance, Dunn (1964) post-hoc test for the Kruskal-Wallis test was used. The Benjamini and Hochberg (1995) method was applied to adjust P-values. The cross-validation strategy that produced performance statistics from a sample as close as possible to train the model on 80% of population observations and testing on the remaining 20% was considered the most effective.
Results
Description of the generated species abundance distributions
Characteristics of simulated species abundance distribution parameters (descriptive statistics, variogram parameters and dispersion (overdispersion vs. equidispersion) and their variation between datasets are presented in Table 2. The simulated abundance distributions are skewed to the right for all species, as the medians are lower than the means. All of the generated species distributions are over-dispersed, except in the case where the species is rare, the probability of detection is low, and the spatial autocorrelation is low or absent. Datasets having outliers for the variogram’s range parameter were not included in the analysis since the minimal number of blocks needed to assess the model’s performance using the spatial fivefold CV approach was not fulfilled.
RF performance using different CV strategies for species abundance data with perfect detection and no-spatial structure
Under ideal conditions, i.e. perfect detection and no spatial autocorrelation, Fig. 3 and Supplementary Figure 1 show that environmental blocking is the least accurate CV approach. This is true regardless of sample size or species abundance class. This is followed by spatial CV using a checkerboard pattern to assign blocks to folds for common species. This latter approach requires more observations to achieve the same level of accuracy as other CV approaches (spatial or no spatial). For relatively small sample sizes \((n=200)\), CV methods do not produce prediction estimates that are equivalent to those of the population from which the sample was taken, especially for common species. As rare species are less variable, they theoretically yield lower predictive errors and variability than common species.

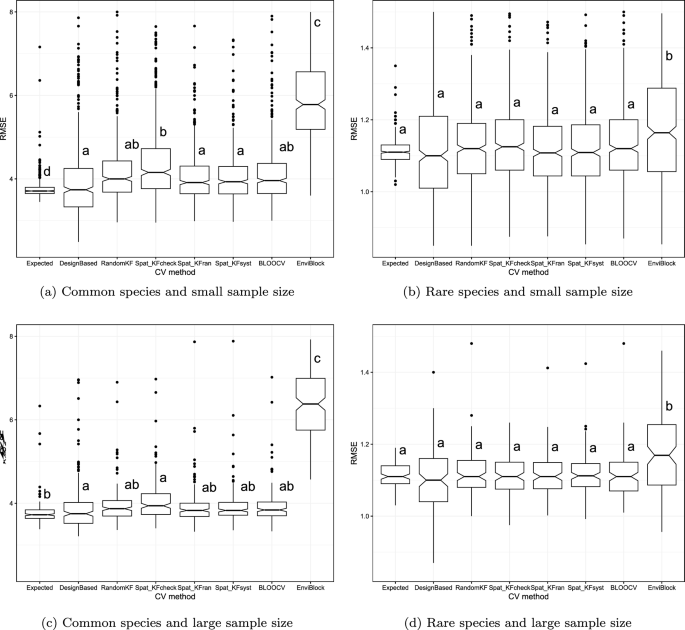

Forest accuracy in modelling species abundance data under optimal conditions (perfect detection and no spatial autocorrelation), using various cross-validation approaches. Expected: Design-based validation using all the population; DesignBased Design-based validation using sampled sites, RandomKF Standard random K-fold CV, BLOOCV Buffered leave-one-out CV, Spat_KFran Random spatial K-folds CV, Spat_KFsyst Systematic Spatial K-folds CV, Spat_KFcheck Checkerboard spatial K-folds CV, EnviBlock Environmental blocking. The red dashed line shows the expected average performance measures; There is no statistically significant difference between the means for CV methods sharing the same letter
Using discrimination metrics to evaluate the predictive performance of the RF, Fig. 4 and Supplementary Figure  2 show that, under ideal conditions, the environmental blocking method is the CV method with the least predictive power and modelling efficiency. This means the relationship between observed and predicted abundance is very weak when using this method. For common species, when the sample size is small, standard random CV and checkerboard spatial K-folds CV are the methods that produce \(R^2\) values that are similar to the population \(R^2\) but not significantly different from those obtained using random, systematic spatial K-folds CV or buffered leave-one-out CV. No CV method achieves the expected \(R^2\) for rare species with a relatively small sample population. When sample sizes are sufficiently large for both common and rare species (see Fig. 4), the standard random K-folds CV method has the same predictive power as all other spatial CV methods except environmental blocking.

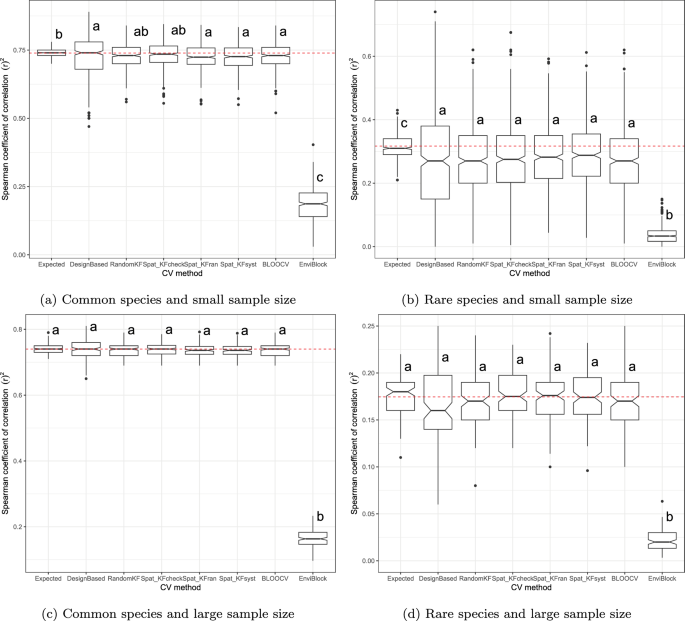

The predictive power of the standard random forest for modelling species abundance data with perfect detection and no spatial autocorrelation, using different cross-validation methods. Expected: Design-based validation using all the population; DesignBased Design-based validation using sampled sites, RandomKF Standard random K-fold CV, BLOOCV Buffered leave-one-out CV, Spat_KFran Random spatial K-folds CV, Spat_KFsyst Systematic Spatial K-folds CV, Spat_KFcheck Checkerboard spatial K-folds CV, EnviBlock Environmental blocking. The red dashed line shows the expected average performance measures; There is no statistically significant difference between the means for CV methods sharing the same letter
RF is effective (see Supplementary Figure 2) in modelling species abundance in absence of spatial dependence. It accurately reproduces observed data (\(\text {MEC} >0.7\)) for common species. However, CV environmental blocking underestimates the modelling efficiency of RF. For rare species, Random Forest (RF) models perform moderately well (with MEC values between 0.5 and 0.7) using all CV methods except buffer-leave-one-out CV and environmental blocking, which tend to underestimate RF model efficiency when spatial structure in abundance data is absent. The standard random K-fold CV is the most efficient technique for all abundance groups and sample sizes.
Impact of sampling strategies on RF predictive performance using different CV strategies for spatially structured species abundance
This subsection summarise findings on the effect of the sampling strategy on RF predictive performance in spatially structured abundance data using various CV approaches. In the following sections, only large sample results are presented to avoid figures overloading. Findings show that the interpretation of RF and CV strategies performance depend on various parameters. These parameters include the chosen performance metrics, the sampling method used to collect data, and data characteristics. Compared to the expected predictive performance, results indicate that the best CV method may not always be the one that yields the highest values for discrimination performance metrics (\(R^2\) and MEC) or the lowest accuracy metrics (RMSE and bias). This is because the above mentioned parameters may affect RF predictions, resulting in underfitting or overfitting for certain datasets.
RF predictive accuracy
For low spatially autocorrelated abundance data, the results indicate that the choice of CV method does not have a significant effect on the RF’s RMSE regardless of the species abundance class except for the two-stage clustered sampled abundance data when the species is common. In this case, design-based CV decreases the predictive accuracy while the buffered leave-one-out CV yields the lowest RMSE but is not significantly different from other methods. However, if the spatial autocorrelation in abundance data is high and the sampling is the two-stage clustering, the RF predictive accuracy is significantly overestimated using the environmental blocking (see Supplementary Figure 3) for both rare and common species. Log (RMSE) was used due to the high variability of RMSE values for abundance data with high spatial autocorrelation.
Bias

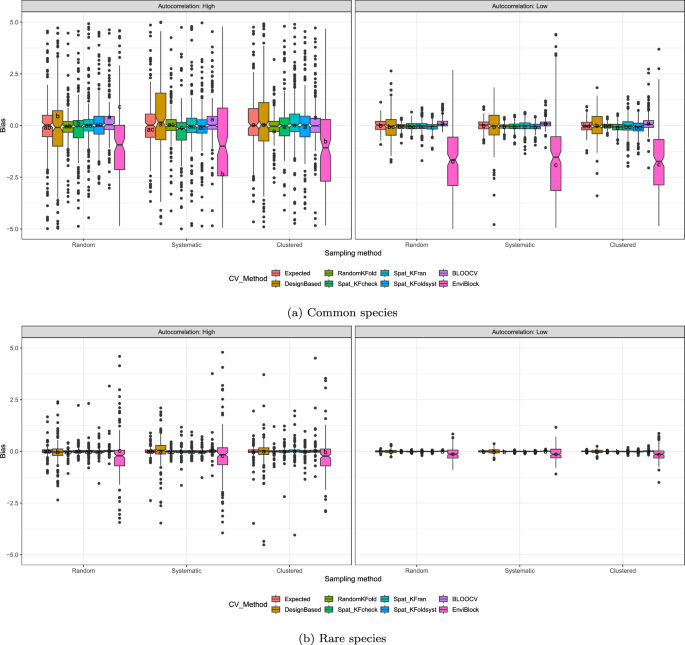

Figure 5 reveals that the choice of CV method significantly impacts RF predictive bias. Environmental blocking underestimates RF bias for all sampling methods, regardless of spatial autocorrelation variation strength, while buffered leave-one-out CV overestimates RF predictive bias for low spatially autocorrelated abundance data.
RF predictive Bias using different sampling and cross-validation methods. Expected: Design-based validation using all the population; DesignBased Design-based validation using sampled sites, RandomKF Standard random K-fold CV, BLOOCV Buffered leave-one-out CV, Spat_KFran Random spatial K-folds CV, Spat_KFsyst Systematic Spatial K-folds CV, Spat_KFcheck Checkerboard spatial K-folds CV, EnviBlock Environmental blocking. The red dashed line shows the expected average performance measures; There is no statistically significant difference between the means for CV methods sharing the same letter
Predictive power
For low spatially autocorrelated abundance data, the analysis suggests that when the sampling is random or systematic, the choice of CV method has a significant impact on the \(R^2\) between observed and RF predicted abundances and some methods especially Buffered leave-one-out CV and Environmental blocking have more substantial effects than others. If the sampling is systematic and the species is rare, the buffered leave-one-out CV yields RF predictive power, which is not significantly different from the best CV methods. Environmental blocking underestimates \(R^2\) for both rare and common species for all sampling methods tested in this study. If the sampling is the two-stage clustering, the highest RF’s \(R^2\) are obtained using design-based validation and standard K-fold CV methods but they are not significantly different to random spatial K-fold CV and systematic spatial K-fold CV methods if the species is common. However, the most reliable \(R^2\) is obtained using Buffered leave-one-out CV and spatial K-fold CV with a checkerboard pattern in the assignment of blocks to folds which are not statistically different to the expected population \(R^2\) if the species is common. For rare species, the most reliable \(R^2\) is obtained using spatial K-fold CV with a checkerboard pattern in the assignment of blocks to folds.
For high spatially autocorrelated abundance data, the analysis suggests that when the sampling is systematic or random the spatial K-fold CV with a checkerboard pattern in the assignment of blocks to folds yields expected population \(R^2\) but it is not significantly different to other CV methods, except environmental blocking and buffered leave-one-out CV which underestimates the RF predictive power for both rare and common species. For high spatially autocorrelated abundance data, only the spatial K-fold CV with a checkerboard pattern in the assignment of blocks to folds allows the RF to yield a predictive power which is not significantly different to the expected population predictive power if the species is common and the sampling is the two-stage clustering. If the species is rare (see Fig. 6), it is not significantly different from random spatial K-fold CV and systematic spatial K-fold CV methods.

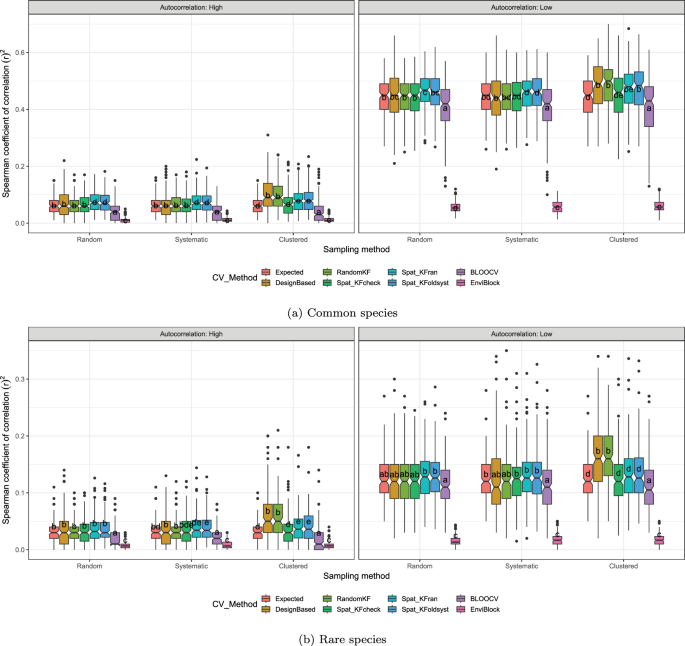

Impact of sampling strategies on RF predictive power with different CV strategies. Expected: Design-based validation using all the population; DesignBased Design-based validation using sampled sites, RandomKF Standard random K-fold CV, BLOOCV Buffered leave-one-out CV, Spat_KFran Random spatial K-folds CV, Spat_KFsyst Systematic Spatial K-folds CV, Spat_KFcheck Checkerboard spatial K-folds CV, EnviBlock Environmental blocking. The red dashed line shows the expected average performance measures; There is no statistically significant difference between the means for CV methods sharing the same letter
Modelling efficiency coefficient
For low spatially autocorrelated abundance data, whatever the sampling method, CV methods have a significant effect on the RF MEC. For both common and rare species, environmental blocking followed by buffered leave-one-out CV, random spatial K-fold CV and systematic spatial K-fold CV appear to have the most substantial effects on reducing RF MEC. Standard K-fold CV, spatial K-fold CV with a checkerboard pattern in the assignment of blocks to folds and design-based validation yield MECs similar or closest to expected RF MEC using all the population datasets.
For high spatially autocorrelated abundance data, Supplementary Figure 4a reveal that for all sampling methods and CV methods, RF yields negative values for the MEC which indicates that the RF’s predictions are poor and may be considered unacceptable. However, the analysis suggests that for randomly and systematically sampled abundance data, the best RF MEC are obtained using standard K-fold CV, environmental blocking, or design-based validation. If sampling is the two-sample clustering (see Supplementary Figure 4), RF’s best MEC is obtained using environmental blocking followed by design-based validation and standard K-fold CV.
Effect of clustering level on spatial cross-validation performance

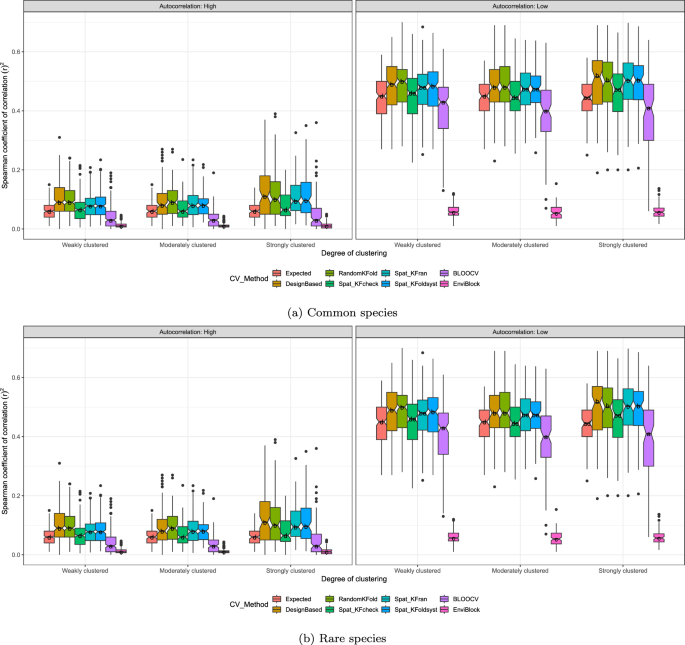

For low spatially autocorrelated abundance data, Fig. 7a, b show that for all degrees of clustering, the blocked spatial CV with a checkerboard pattern in the assignment of blocks to folds yields from clustered samples the closest or similar MEC to the expected population MEC while the design-based validation and the standard K-fold CV significantly overestimate the MEC of the RF for both common and rare species. If the species is rare, the design-based validation and the standard K-fold CV are not significantly different from the expected MEC values. All other spatial CV approaches underestimate the MEC of RF. For high spatially autocorrelated abundance data, results suggest that for weakly and moderately clustered samples, design-based validation and environmental blocking CV yield the closest MEC to expected values for both common and rare species. However, for strongly clustered samples, if the species is common, environmental blocking CV and blocked spatial CV with a checkerboard pattern in the assignment of blocks to folds yield MEC similar to expected values, while only environmental blocking CV yields a similar MEC to expected values for rare species. Design-based validation significantly overestimates the MEC of the RF for strongly clustered samples for common species.

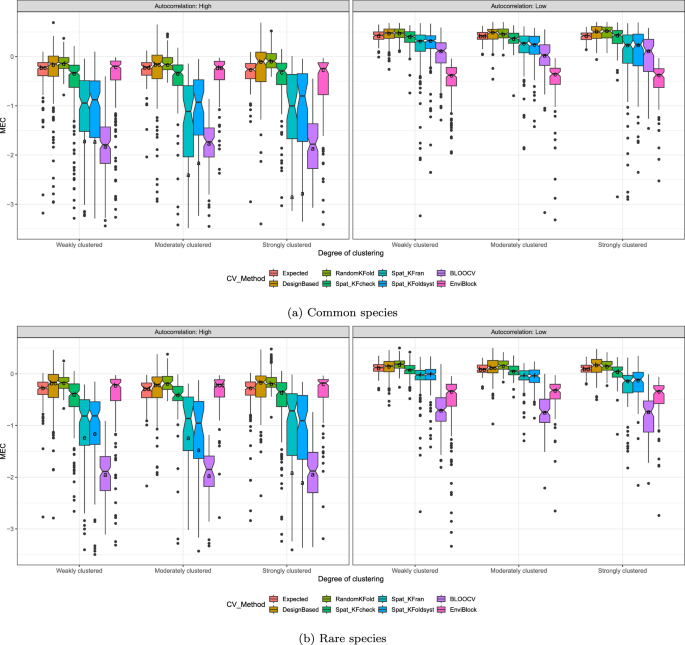

Effect of the clustering and spatial autocorrelation on the RF modelling efficiency using different CV methods. Expected: Design-based validation using all the population; DesignBased Design-based validation using sampled sites, RandomKF Standard random K-fold CV, BLOOCV Buffered leave-one-out CV, Spat_KFran Random spatial K-folds CV, Spat_KFsyst Systematic Spatial K-folds CV, Spat_KFcheck Checkerboard spatial K-folds CV, EnviBlock Environmental blocking. The red dashed line shows the expected average performance measures; There is no statistically significant difference between the means for CV methods sharing the same letter
For all degrees of clustering, species abundance class, and spatial autocorrelation, Fig. 8a show that the most reliable \(R^2\) is obtained using blocked spatial K-fold CV with a checkerboard pattern in the assignment of blocks to folds. Its prediction power from clustered samples is not significantly different from that expected assuming that the sample is representative of the population. However, if the species is rare and the spatial autocorrelation is low, its predictive power is not significantly different from the random and systematically blocked spatial CV K-fold CV.
Effects of spatial autocorrelation and imperfect detection on the performance of spatial CV approaches in RF using random sampling to predict species abundance
Given spatial autocorrelation and imperfect detection, CV methods behave differently depending on species type (abundance class) and sample size. The probability of species detection significantly affects the predictive accuracy and predictive discrimination of RF (see Figs. 9 and 10). When the probability of detecting a species is high, RF provides low predictive accuracy but high predictive power, whereas when the probability of detecting a species is low, it provides high predictive accuracy but low predictive power.

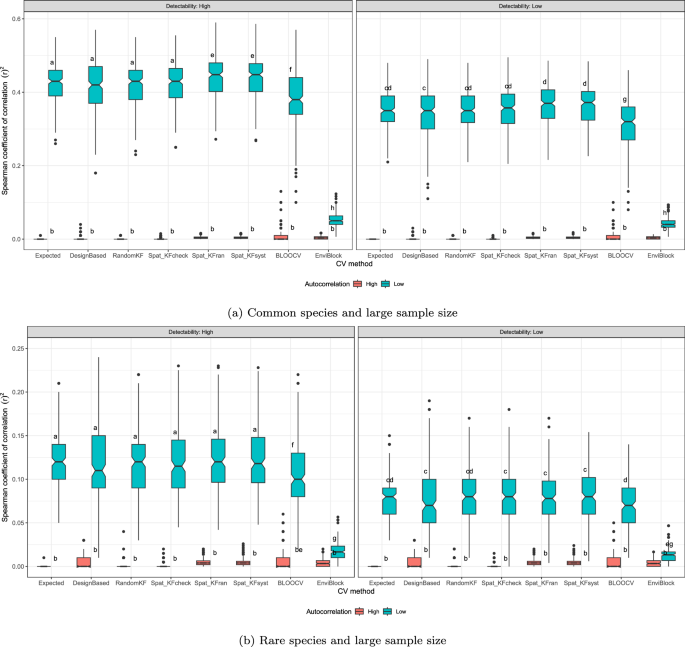

Effect of species characteristics and spatial autocorrelation level on the predictive power of spatial CV techniques in RF
For a relatively small random sample, design-based validation and standard random CV are the best methods, but not significantly different from checkerboard spatial CV in assigning blocks to folds. However, design-based validation yields predictive accuracy with high variability. When spatial autocorrelation is low, random and systematic spatial CV overestimate the predictive power of the RF. In contrast, Fig. 9 shows that the buffer-leave-one-out CV and environmental blocking underestimate the predictive power of the RF. When spatial autocorrelation is high, the buffer-leave-one-out CV gives a similar predictive ability to the most reliable methods, which are the standard random K-fold CV and the spatial CV with a checkerboard pattern in block-to-fold assignment methods for all species detection probabilities and abundance classes. They do not differ significantly from those estimated using the design-based validation, however, in contrast to the case of low spatial autocorrelation, when spatial autocorrelation is high and the sample size is relatively small, environmental blocking overestimates RF predictive ability more than random and systematic spatial CV, which overestimates RF predictive ability and prediction accuracy for both low and high spatial autocorrelation. For large sample sizes, when spatial autocorrelation is low, other spatial CV methods do not significantly affect RF performance to predict the abundance of a species with a low probability of detection, common or rare, except for environmental blocking, which is the least effective CV method in terms of predictive power, followed by buffer leave-one-out CV. When spatial autocorrelation is high, buffer-leave-one-out CV and environmental blocking are not statistically different from other methods. However, standard random CV and spatial CV with checkerboard assignment of blocks to folds are the methods with the lowest variability in predictive performance for both rare and common species.
Effect of imperfect detection and spatial autocorrelation levels on the predictive power of spatial CV techniques in RF for different species abundance class. Expected: Design-based validation using all the population; DesignBased Design-based validation using sampled sites; RandomKF Standard random K-fold CV, BLOOCV Buffered leave-one-out CV, Spat_KFran Random spatial K-folds CV, Spat_KFsyst Systematic Spatial K-folds CV, Spat_KFcheck Checkerboard spatial K-folds CV, EnviBlock Environmental blocking. The red dashed line shows the expected average performance measures; There is no statistically significant difference between the means for CV methods sharing the same letter
Influence of species characteristics and spatial autocorrelation levels on the prediction accuracy of spatial CV techniques in RF using random sampling
For common species (see Supplementary Figure 4a), there is no significant difference in prediction accuracy between the different CV methods, regardless of sample size. However, environmental blocking has the lowest mean RMSE. The predictive accuracy of environmental blocking is not significantly different from that of systematic, random, and checkerboard spatial K-fold CV methods, given the variability in the accuracy of RF prediction. The different spatial CV methods do not correct for sampling biases and incomplete detection effects when spatial autocorrelation is present in small sample sizes. For rare species, box-plots in Supplementary Figure 4b depict the lack of a substantial effect for low or no spatially autocorrelated species abundance distribution. When spatial autocorrelation is high, the buffer-leave-one-out CV method allows RF to make accurate predictions with a relatively small sample size compared to other CV methods. However, when the spatial autocorrelation is low, this method is no longer more accurate than the other methods. For both rare and common species, where spatial autocorrelation is high, environmental blocking significantly overestimates the predictive accuracy of RF when sample sizes are small. When the probability of detecting a rare species is low and spatial autocorrelation is high, Figure Supplementary Figure 4b shows that the checkerboard spatial CV, buffer-leave-one-out CV methods and the standard K-fold CV methods yield RMSE no significantly different from expected values.

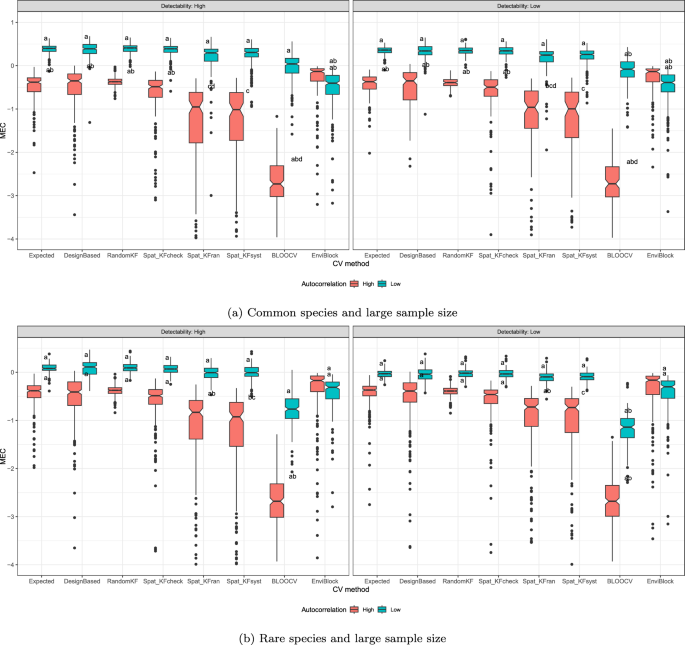

Influence of data features on the modelling efficiency coefficient of RF using different spatial CV methods
For high spatially autocorrelated species abundance and imperfect detection, even when the sample is representative, Fig. 10 demonstrates that the RF may perform very poorly regardless of the CV strategy used. RF fails to capture the variation and direction of observed abundance. These negative values suggest that alternative models, which take into account spatial autocorrelation and imperfect detection, should be considered to improve species abundance prediction. The standard random CV and the checkerboard spatial CV methods yield better MEC compared to other CV methods. However, they are not statistically different from other CV methods for common species due to the high variability in MEC.
Effect of imperfect detection and spatial autocorrelation levels on the MEC of RF for different species abundance classes using different spatial CV techniques. Expected: Design-based validation using all the population; DesignBased Design-based validation using sampled sites, RandomKF Standard random K-fold CV, BLOOCV Buffered leave-one-out CV, Spat_KFran Random spatial K-folds CV, Spat_KFsyst Systematic Spatial K-folds CV, Spat_KFcheck Checkerboard spatial K-folds CV, EnviBlock Environmental blocking. The red dashed line shows the expected average performance measures; There is no statistically significant difference between the means for CV methods sharing the same letter
Discussion
In the present study, we compared spatial CV strategies using the standard RF to predict species abundance in the presence of spatial autocorrelation and imperfect detection, two common characteristics of abundance data. Results showed that imperfect detection and spatial autocorrelation significantly affect the predictive accuracy and ability of the RF regardless of the CV technique. This is particularly the case when there is a cooccurrence of these factors.
Following the discussion of spatial CV methods, this section explores the conditions under which spatial or non-spatial CV methods may or may not be reliable in ecological studies, taking into account spatial autocorrelation level, sampling method, species abundance class and measurement error.
RF over or under-fitting using various CV methods for small sample size
Wadoux et al. (2021) found that the standard random K-fold CV method was less biased than spatial CV methods. Spatial CV methods are highly subjective and depend on various factors such as the sampling design used to define the folds, the method used to determine the spatial partitioning, and the exclusion distance. However, this study demonstrates that it is not prudent to draw such a general conclusion, as several factors can influence the performance of CV techniques. For example, except for environmental blocking which is the least accurate CV method in cases of perfect detection and no spatial autocorrelation, all methods provide predictive power, modelling efficiency, bias and accuracy that match that of the underlying population, provided that the samples are large and representative of the population due to the large size of spatial blocs or exclusion distance. When the dependent variable is a count variable, such as the abundance of a species, the large variation in observations can mask the effect of the CV technique.
When the sample size is small and not representative of the population it was drawn from, either spatial or non-spatial CV methods may not produce prediction estimates equivalent to population validation parameters. Although RF can handle datasets with limited sample sizes (Ishwaran et al. 2010; Chen and Ishwaran 2012), its application requires a large sample to ensure that estimates reflect the population validation parameters. For the small sample size, the predictive performance of RF is overestimated. This suggests that in CV, the presence of spatial structure in the data is not the only factor influencing the over or underestimation of RF performance. When the species is common, spatial CV approaches that randomly and systematically allocate blocks to folds yield the highest RMSE in scenarios with imperfect detection even if data are not spatially autocorrelated, but they do not differ significantly from other CV methods.
However, as with all CV methods, they may overestimate the predictive accuracy and underestimate the predictive power of the RF, especially for rare species. Based on random sampling in the presence of high spatial autocorrelation, environmental blocking CV achieved the highest RMSE. However, the different spatial CV methods did not significantly improve prediction accuracy for the large sample size. Results from this study show that both spatial and non-spatial CV methods can significantly overestimate the accuracy of species abundance predictions with small samples and high spatial autocorrelation. This finding contrasts with those of Roberts et al. (2017) and Ploton et al. (2020), who showed that ignoring spatial dependence when cross-validating models can lead to severe underestimation of prediction error and false confidence in model predictions, masking model overfitting. However, Ploton et al. (2020) findings are likely to apply only to cluster samples and may not apply to all datasets and levels of spatial autocorrelation. Therefore, although the RF is robust to overfitting due to random noises (Breiman 2001), researchers should not assume that it is robust to overfitting caused by heterogeneity in predictor and response relationships (Wenger and Olden 2012) or other data features and selected validation method.
Performance of spatial CV methods in species abundance modelling
In terms of prediction ability, environmental blocking is the least efficient CV approach. It yields the poorest relationship between the observed abundance and the predicted values. When the probability of detecting a rare species is low and spatial autocorrelation is high, the checkerboard assignment of blocks to folds in the spatial K-fold CV methods, and the standard random K-fold CV method predict species abundance with an accuracy that is not significantly different from that of the population. However, the determination of the optimal block or buffer size is one of the challenges in the use of spatial blocks and buffered CV (Trachsel and Telford 2016). One of the approaches used to determine the block size is to fit a variogram to the raw species data and use the resulting range as the block size for spatial K-fold CV or the radius around each location in buffered leave-one-out CV (Roberts et al. 2017; Bio et al. 2002; Valavi et al. 2019).
Several studies Roberts et al. (2017); Telford and Birks (2009); Trachsel and Telford (2016) have used the spatial autocorrelation range in the model residuals to determine the block size for optimal separation between the training and test sets. Using the empirical variogram, which is an essential geostatistical tool for determining spatial autocorrelation, it is possible to define the range over which the residuals are independent of each other (Valavi et al. 2019). The empirical variogram is a measure of the variability between all pairs of points to explain the spatial autocorrelation pattern (O’Sullivan and Unwin 2010).
For spatial independence, (Ploton et al. 2020) recommend excluding validation data that are geographically close to the calibration data by a distance greater than the autocorrelation range of the empirical variogram. In the case of spatial autocorrelation, we assumed that each block size was 1.25 * the range of the variogram fitted to the raw species data. However, this proved insufficient to significantly improve the predictive performance of RF over what would be obtained using a randomly selected sample and standard random K-fold cross-validation. Wadoux et al. (2021) found similar results when assessing the accuracy of aboveground biomass (AGB) maps. Their results indicate that the design-based estimation of the population RMSE is unbiased and the estimates have little variation, but it requires probability sampling from the population.
For systematic and simple random sampling designs, CV using the standard random K-fold CV is close to unbiased but is too optimistic for clustered sampling. They also showed that the buffered leave-one-out and random spatial CV methods were too pessimistic, and the former significantly overestimated the RMSE. Our results show that environmental blocking is more pessimistic about predictive ability and overestimates RMSE compared to other methods. These findings support a statement by Wadoux et al. (2021) that the pessimistic results of random spatial K-fold CV and buffered leave-one-out CV are likely caused by an overrepresentation of environmental conditions different from those at the calibration points and an underrepresentation of conditions comparable to those at the calibration points.
Checkerboard assignment of blocks to folds in the spatial K-fold CV methods for clustered samples
However, if the data are spatially structured, the performance of the RF using validation based on the sampling design or standard random K-fold CV varies significantly depending on the sampling method used. For example, standard K-fold CV is accurate even in the presence of spatial autocorrelation, regardless of species abundance, if the sample size is representative of the population and sampling is random or systematic. If the data are spatially structured, standard K-fold CV is unreliable for clustered samples. Over-fitting problems with structured data can be addressed by block cross-validation, which strategically splits data rather than randomly (Roberts et al. 2017). Bruin et al. (2022) used cross-validation to assess map accuracy and found that blocked spatial cross-validation was closest to the reference map accuracy metrics for highly clustered samples, where a large proportion of maps were predicted by extrapolation. However, there was still bias in the results. To avoid extrapolation in these cases, the best approach was shown to be either to restrict the predicted area or to perform additional sampling.
As alternatives to random blocked spatial CV, Bruin et al. (2022) proposed inverse sampling-intensity weighted and two geostatistical model-based CV methods. Sampling-intensity weighted CV directly addresses the problem of spatial clustering, rather than the erroneously described problem of physical proximity of test and training data. They found that, compared to blocked spatial cross-validation, sampling-intensity weighted CV was less biased and more reliable for unclustered to moderately clustered data, but more biased for highly clustered samples. They emphasise the need for further research to improve accuracy assessment using CV from highly spatially clustered samples and suggest the use of the standard random CV for unclustered data and weighted CV for moderately clustered samples.
Recently, Wang et al. (2023) proposed a new CV method for evaluating geospatial ML models by considering the geographical and feature spaces to split the samples into training and validation sets. This method resulted in a more rational split, which led to more accurate results when evaluating the models. However, they used random assignment of blocks to folds, like most studies evaluating spatial CV methods.
According to our findings, regardless of the degree of spatial autocorrelation, the probability of species detection, and the type of species, the checkerboard assignment of blocks to folds in the spatial CV method provides accurate predictive performance for clustered samples. Roberts et al. (2017) suggest using grouped sets of blocks, such as the checkerboard pattern, to select evaluation blocks in cases of irregular or unbalanced data sampling. As species abundance samples are rarely evenly distributed across the landscape, one of the most important processes in species modelling is the assignment of blocks to folds (Valavi et al. 2019).
The checkerboard pattern in assignment of blocks to folds in the spatial CV method provides an excellent opportunity to explore when samples are clustered. The checkerboard pattern is a technique used in ecological models to ensure spatial independence between the training and test sets. It prevents neighbouring blocks from sharing observations, allowing the model to be applied to distinct areas. This is crucial in ecology, where species distribution may vary. The checkerboard pattern exposes the model to various spatial patterns, enhancing its robustness to spatial heterogeneity. It ensures an even representation of spatial patterns across each fold, preventing biases due to unequal distributions. It also minimizes the risk of leakage by keeping neighbouring blocks separate during cross-validation, which occurs when information from the training set affects the test set.
This study explored the application of spatial CV for evaluating models with clustered and unclustered spatial data. While the different spatial CV approaches tested in this study do not offer advantages over traditional CV methods, even for high spatially autocorrelated data for large samples randomly or systematically collected, the checkerboard pattern in spatial CV gives better performances for clustered samples in most cases. Recent work suggest alternative methods to random blocked spatial CV such as inverse sampling-intensity weighted and geostatistical model-based CV methods that enhance predictive performance for clustered samples (Bruin et al. 2022). However, the performance of these methods depends on the clustering level, and to our knowledge, no approach performs well regardless of the data clustering level. Future research could explore the effectiveness of applying the checkerboard pattern, commonly used in blocked spatial CV, to these alternative methods for clustered data, contributing to a more comprehensive understanding of spatial CV strategies for evaluating models with spatial dependence.
Conclusion
Making accurate and reliable predictions of species abundance can help us respond to changing ecological conditions and improve scientific understanding. To select, validate and assess the predictive power of ecological models, cross-validation is often used. Ecological data often have internal dependence structures, so there is increasing interest in spatial cross-validation techniques that increase the independence between training and test data by dividing the data into ’blocks’ at some central point(s) of the dependence structure, and avoid overfitting to produce unbiased errors and parameter estimates. The findings indicate that even in the presence of high spatial autocorrelation and imperfect detection, design-based validation and the standard K-fold CV remain effective strategies for evaluating the performance of machine learning methods for predicting species abundance, provided that sampling is random and, in some cases, systematic. Although RF can deal with data sets with limited sample sizes, for small sample sizes, both the standard and spatial CV approaches overestimate prediction accuracy and discrimination. Standard K-fold CV overestimates RF’s predictive performance, particularly for clustered data. Checkerboard block-fold assignment in spatial CV is the spatial strategy that provides accurate prediction regardless of sampling design, whereas environmental blocking CV is overly pessimistic for predictive ability and overestimates RF predictive accuracy. Thus, in the case of clustered data, the checkerboard allocation of blocks to folds in the spatial CV method is an opportunity to explore. This is because, until proven otherwise, spatial CV methods have no theoretical basis.
Availability of data and materials
The data and materials supporting this study’s findings are available from the corresponding author on request.
