Abstract

Background

The Three Gorges Reservoir (TGR) has been facing deteriorated water quality issues since the construction of the Three Gorges Dam (TGD) in 1994. However, no previous studies have used a simulation-optimization assessment framework to examine the waste-load allocation patterns in the TGR area for alleviating its water pollution problem. In this study, a simulation-optimization modeling approach was developed for addressing this issue, through combining an environmental fluid dynamic code (EFDC)-based water quality simulation model and a waste-load allocation optimization model into a general framework.

Results

The approach was applied to a TGR section (Changshou-Fuling section) for identifying the optimal waste-load allocation schemes among its 11 wastewater discharge outlets. Firstly, the EFDC model was run to simulate the water quality response in the receiving water body under a single discharge load scenario, and the simulated COD and NH4+-N concentrations were used to calculate the pollution mixing zone (PMZ), the pollution mixing zone per unit load (PMZPL), and sensitivity index (SI) pertaining to that outlet. These values were then used in the formulation of the waste-load allocation optimization model, with its objective being to maximize the environmental performance under constraints that existing waste discharge loads in terms of total wastewater amount, total pollutant mass, and existing PMZ size can’t be exceeded.

Conclusions

Modeling results give an optimal waste-load allocation ratio for each discharge outlet within the study section, and its implications to the reservoir water quality management were analyzed. It is anticipated that the develop approach can be extended to the entire TGR area for better water quality management studies and practices.

Keywords

Environmental fluid dynamic code (EFDC)Water quality simulationWaste-load allocation optimizationSimulation-optimization approachThree Gorges Reservoir

Background

The Three Gorges Dam (TGD) spans the Yangtze River by the town of Sandouping, located in the Yiling District of Yichang City, in Hubei province, China. It is a hydroelectric dam and the world’s largest power station in terms of installed capacity (21,000 MW). The TGD construction started in 1994 and the dam body was completed in 2006. Since then, the water level behind the dam has gradually increased and reached its designed maximum level of 175 m in October 2010. When the water level is at its maximum, the upstream of the Three Gorges Reservoir (TGR) along the Yangtze River is about 660 km in length and has an average of 1.12 km in width. The TGR contains 39.3 billion m3 of water with a total surface area of 1,045 km2, and the reservoir watershed has a total area of 58,000 km2 (CWRC Changjiang Water Resource Commission 1997). The TGR is situated within an attitude of E106°–115° 50′ and N29°16′–31°25′, as shown in Figure 1. It encompasses 26 towns or counties under the jurisdiction of Metro Chongqing Municipality and Hubei Province, with a total population of 20.1 million.
Figure 1

The Three Gorges Reservoir area (top graph), the study reservoir section (bottom graph), and location of 11 industrial wastewater discharge outlets along the study reservoir section (bottom graph).

As the consequences of fast population growth and rapid economic development in the past two decades in the TGR watershed, more and more industrial wastewater and domestic sewage are generated and discharged into the TGR, leading to the deterioration of water quality in the reservoir. Meanwhile, the construction and completion of TGD has resulted in significant changes of hydraulics of water flow in the reservoir, which further affects the transport and fate of various contaminants discharged into the reservoir water body. For example, the advective and diffusive transport of the chemicals in the reservoir water body has been significantly affected due to the slowdown of water flow. As a result, local authorities have been undertaking enhanced stresses in order to effectively respond to these concerns. In general, one reliable path is through designing effective environmental management schemes for dealing with this dilemma, and this requires a sound understanding of the significant contributors to the reservoir water pollution problem, and of the way the reservoir system will react to particular schemes or policies. It becomes obviously desired to study sound allocation schemes for better water quality management in the region.

Generally, the waste-load allocation problems are to determine the allowed discharge levels or required removal levels from a number of point pollution sources in a basin to achieve satisfactory (or aspired) water-quality responses in the receiving water body. Previously, the optimal allocation of waste loads has been typically solved by developing various forms of optimization models Mujumdar and Vemula 2004; Yang et al. 2011; Qin and Xu 2011). The decision variables in the optimization models are the discharge (or removal) levels of wastewater or pollutants at each of the point pollution sources. The objective function is often to maximize economic return or to minimize the treatment cost while the constraints are to ensure that the resulting water-quality responses in the receiving water body are satisfactory. Since the resulting water-quality responses in the receiving water body can only be quantified by water quality simulation models, the waste-load allocation problems are essentially required to conduct a simulation-optimization assessment of levels of waste load reductions and allocations from various sources while ensuring the water quality standards being satisfied. Examples of such studies include a waste load allocation model developed by Cho et al. (2003) for the heavily polluted Gyungan River in South Korea, where a modified QUAL2E model was used for the water quality simulation, and a simulation–optimization analysis of waste load allocation for a river water quality management by Mujumdar and Vemula (2004). In the TGR area, previously, many optimization modeling studies have been conducted but mainly focused on Yangtze River flood control (Cai et al. 2010), hydropower generation (Guo et al. 2011), Yangtze River watershed navigation (Wang and Ruan 2011), and regional water resources allocation and supply (Sun and Lv 2010).

The resulting water-quality response in the receiving water body depends on the total waste load discharged and allocation pattern among different sources, as well as the various hydraulic conditions within the water body. Surface water quality models have been deemed as sound engineering tools for rationalizing water quality management (Chapra 2003; Igbinosa and Okoh 2009; Chen et al. 2010). Various surface water quality modeling studies and software have been carried out and developed for supporting the management of surface water systems, and examples include the river and stream water quality model (QUAL2K) (Chapra et al. 2007), water quality analysis simulation program (WASP) (Wool et al. 2001), environmental fluid dynamics code (EFDC) (Tetra Tech I 2007) and MIKE11 (DHI 2003). Some models can tackle the problems related to chemical and biological processes through deterministic partial differential equations (Igwe et al. 2008; Shah et al. 2009). All the models include two essential components for executing two core tasks: (1) a hydrodynamic sub-model to simulate the water flow circulation and behavior, and (2) a mass transport and kinetics sub-model to simulate the fate and movement of pollutants in the target water bodies. For the TGR area, previous water quality modeling studies have been focused on the simulation of 1D and 2D hydraulic flow in the mainstream of Yangtze River (Huang 2006), analysis of the natural assimilative capacity and water environmental capacity, definition and calculation of pollution mixing zones (Jiang et al. 2005), and some others (Zhao et al. 2011).

Literature survey show that, although the water pollution issue in the TGR has become more and more serious since the construction of the TGD, no previous studies have used a simulation-optimization assessment framework to examine the waste-load allocation patterns in the TGR area for alleviating TGR’s water pollution problem. The objective of the present work is thus to combine a water quality simulation model and waste-load allocation model into a general methodology framework, and aims to address the water pollution issue in the TGR area. In this study, the Changshou-Fuling section is a typical mainstream section along the Yangtze River and was selected as the target study section for implementing the modeling runs and identifying the optimal waste-load allocation schemes. The EFDC model was used as the surface water quality model to simulate the flow hydrodynamics and chemical transport. It helps rank and screen the major waste discharge outlets within the study reservoir section. The pollutant mixing zone (PMZ) formed by one single outlet for different pollutants was calculated to establish the linkage between the pollution plume size with the strength of each discharge outlet, and a sensitivity index can then be calculated based on the calculated PMZ. The spatial and temporal distribution of PMZ was calculated by the EFDC model. The waste-load allocation patterns were obtained through optimizing the sensitivity index of each waste discharge outlet. According to the modeling results, the schemes for optimal waste-load allocations among 11 different discharge outlets were analyzed. The implications to formulate the strategies for improving the water quality for the entire region were also discussed. It is anticipated that the methodology developed in this study can be extended to other TGR areas for better water quality management studies and practices.

The Changshou-Fuling reservoir section

The Changshou-Fuling section of the TGR was selected as the study area, as shown in Figure 1. It is subject to a tropical monsoon climate of Northern Asia and has an annual mean temperature of 18°C, an average precipitation of 1170 mm per year, and an average evaporation of 1300 mm per year, and an average wind speed of 1.4 m/s (Zhao et al. 2011). This reservoir section has an annual mean flow velocity of 0.8 m/s, a mean flow rate of 12,000 m3/s, and a mean water depth of 50 m (MWRC Ministry Of Water Resources of China 2008). Changshou and Fuling Districts are two major industrial bases of ChongQing Municipality. They have a total of 11 industrial wastewater discharge outlets located along the study section, discharging a large amount of untreated industrial wastewater into the TGR. Among them, 6 discharge outlets are located in Changshou District and the other 5 are located in Fuling District (as indicated in Figure 1, bottom graph, and Figure 2). The study section is approximately 90 km long, with 18 km located in Changshou District in the upper reach and 72 km in Fuling District in the lower reach. The Wujiang River flows into this section right before the discharge outlet #10 and is the second largest inflow tributary of the TGR. Figure 3 gives a digital elevation map of the study reservoir section. With the rapid population growth and fast economic growth in the past two decades, the overall water quality of in the Changshou-Fuling section has been gradually deteriorated and has been in very poor conditions (Yibing et al. 2007). Furthermore, the construction and completion of the TGD have made the situation even worse.
Figure 2

Locations of 11 discharge outlets in the study reservoir section (top: Changshou section; bottom: Fuling section).

Figure 3

Digital elevation map of the study reservoir section.

In this study, a topographic map with a resolution of 1:25,000 was used to delineate the river channel characteristics, and the water depth along the study section was sourced from the Department of Hydrology, Changjiang Water Resources Commission (Changjiang WRC). Hydrological data were obtained from the Bureau of Hydrology, the Ministry of Water Resources of China (MWRC). Water quality data include the concentrations of DO, COD, NH4+-N, observed at the Qingxichang monitoring station in 2008, and were provided by the ChongQing Environmental Science Research Institute. Meteorological data were downloaded from the website of the China Meteorological Data Sharing Service System. Industrial and municipal point pollution source data for 2008 for Changshou and Fuling Districts were provided by the Changjiang Water Resources Protection Institute. Data of nutrients (N, P) from non-point sources within the study section were provided by Chongqing Environmental Science Research Institute. The Level-II water quality standard specified in the National Environmental Quality Standards for Surface Water (GB3838-2002) was applied, and the standards for NH4+-N and COD are 0.5 mg/L and 15 mg/L, respectively. The discharge load from each discharge outlet in the year of 2008 is given in Table 1.
Table 1

Discharge load from 11 discharge outlets in 2008

Number

Discharge outlet

District

Discharge load (kg/d)



COD

NH4+-N

1

Sichuan Vinylon

Changshou

6959

316

2

Changshou Drainage

Changshou

1200

100

3

Yudong Oil and Fat

Changshou

1225

82

4

Changshou Chemical #1

Changshou

1927

551

5

Changshou Chemical #2

Changshou

628

338

6

Changshou Chemical #3

Changshou

1372

677

7

Fuling Chemical Plant

Fuling

7778

1399

8

Chuandong shipyard

Fuling

295

38

9

Taiji Pharmaceutical Factory

Fuling

562

15

10

Jindi Industrial Group

Fuling

522

68

11

Hengliangzi Drainage

Fuling

2055

205

Methods

The simulation-optimization assessment approach

Definitions of pollutant mixing zone (PMZ) and sensitivity index (SI)

Before we discuss how the surface water quality simulation model and waste-load allocation model was combined into a general assessment framework, a few concepts need to be defined. A primary concept is the pollution (or pollutant) mixing zone (PMZ), and it was defined as the area of a contamination plume caused by the wastewater discharge where the water quality within the zone exceeds the Level-II national surface water quality standards. The area of the PMZ for each discharge outlet is affected by their respective factors, mainly including the discharge load from the outlet, hydro-dynamic flow feature around the outlet, natural assimilative capacity of local water body, and background concentrations of the pollutants of interest. It was calculated by the EFDC model. The pollutant mixing zone per unit load (PMZPL) can then be defined and calculated by:
PMZP L i = PM Z i D L i
(1)

where PMZ i is the surface area of the pollutant mixing zone formed by the i th discharge outlet (in m2); DL i refers to the discharge load from the i th discharge outlet (in kg/day).

In this study, the monthly and annually average values of PMZ and PMZPL for each individual discharge outlet were calculated by the EFDC-based water quality simulation model. In a specific PMZ calculation, only the discharge load from the outlet of interest was considered and used in the EFDC simulation, while the discharge loads from all other outlets were assumed to be zero. As a result, the calculated PMZ and MPZPL only reflect the pollution contribution from each individual outlet. A sensitivity index can then be defined to indicate how sensitive or important each individual discharge outlet could be among all the outlets in terms of its impact on water pollution. The formula to calculate the sensitivity index for each outlet is given below:
S I i = PMZ R i DL R i
(2)
Where SI i is the sensitivity index for the i th discharge outlet (dimensionless); PMZR i is the ratio or share of the PMZ formed by the i th outlet to the total PMZ area formed all the outlets (dimensionless); and DLR i represents the ratio or share of the discharge load from the i th outlet to the total discharge load from all the outlets (dimensionless). It is indicated that a higher SI value means a bigger PMZ area influenced by a specific outlet and a stronger pollution impact from the same outlet. PMZR i and DLR i can be calculated by the following two formulas:
PMZ R i = PM Z i i = 1 n PM Z i
(3)
DL R i = D L i i = 1 n D L i
(4)

In Equations (3) and (4), the subscript i indicates the number of discharge outlet along the study reservoir section. In this study, there are a total of 11 outlets (n = 11).

Simulation-optimization assessment framework

In this study, a hydro-dynamic water quality simulation model was developed using the environmental fluid dynamics code (EFDC) (Tetra Tech I 2007). The EFDC-based simulation model was used to calculate the monthly and annually average value of PMZ formed by each individual discharge outlet. The discharge load from one individual outlet was used as the single load input in each run of the EFDC simulation. Also, a linear optimization model was formulated to seek the optimal waste-load allocation schemes among different discharge outlets within the study section. In this study, the water quality simulation and waste-load allocation model were then combined into a general assessment framework. The assessment process was carried out in a sequential manner. It starts with running the EFDC simulation model to provide the values of parameters used in the optimization model, and then the optimization model was run to search for the best waste-load allocation schemes. The details of the modeling and assessment processes are proved in the following context.

EFDC-based water quality simulation modeling

Model description

The EFDC is a public domain, open source, surface water modeling system, and includes hydrodynamic, sediment and contaminant, and water quality modules which are fully integrated in a single source code implementation. EFDC has been applied to over 100 water bodies including rivers, lakes, reservoirs, wetlands, estuaries, and coastal ocean regions in support of environmental management and regulatory requirements. The EFDC was originally developed at the Virginia Institute of Marine Science (VIMS) and the School of Marine Science of The College of William and Mary, by Dr. John M. Hamrick in 1988 (Tetra Tech I 2007). The hydrodynamics of the EFDC is based on the Princeton Ocean Model; the physics of the two models are the same (Blumberg and Mellor 1987).

For simulating the water quality, the EFDC solves the hydrodynamics and drives the transport of chemicals by using the hydrodynamic results. The water quality module in the EFDC solves the phytoplankton kinetics, which includes nutrient uptake, growth, respiration, discretion, settling processes and nutrient transformations. The EFDC water quality module is based on CE-QUAL-ICM and can simulate up to 22 state variables (Hamrick 1996). The governing mass-balance equation for each of the water quality state variables is expressed as in the Equation (5).
m x m y HC t + m y HuC x + m x HvC x + m x m y wC x = x m y H A x m x C x + y m x H A y m y C y + z m x m y A z H C z + S c
(5)

Where, C denotes the concentration of a water quality state variable; u, v, and w refer to the velocity components in x-, y-, and z-directions in generalized curvilinear and sigma coordinate systems; A x , A y , A z are the turbulent diffusivities in the x-, y-, and z-directions, respectively; H is the water column depth; m x , m y are the horizontal curvilinear coordinate scale factors; S c represents internal and external sources and sinks per unit volume, which are either generated and/or consumed by kinetic processes. The kinetic formulations of water quality component in the EFDC are primarily from CE-QUAL (Hamrick 1996).

Model setup

A horizontal computation grid was designed for the study reservoir section and for running the EFDC model, as shown in Figure 4. In this study, the orthogonal curvilinear grids were used for setting up the EFDC model to fit the natural flow boundary. The model maps the orthogonal curvilinear grid with the software Delft3D (Zuo 2007). The designed grids consist of 4373 cells in the horizontal direction, with grid size ranging from 10 m to 300 m. A vertical sigma coordinate was evenly distributed by 5 layers for better simulating the bottom topography (Xie et al. 2010). Model simulation time step was set to 5 s. For the initial conditions, the water surface elevation for each active cell was set to 155 m and the water quality variables for each active cell were set same to the initial data (Wu and Xu 2011; Zhao et al. 2011; Parka et al. 2005; Li et al. 2011).
Figure 4

The computation grid designed for the Changshou-Fuling reservoir section.

Model verification

To verify the EFDC model, the simulated results were compared with the field water quality data observed in the year of 2008 at the Qingxichang Monitoring Station. The parameters used for model verification include two hydrodynamic variables (i.e., water level and flow velocity) and three water quality variables (i.e., concentrations of DO, NH4+-N and COD), all of which are on a daily average basis. The field data were collected on a monthly basis and the daily average was recorded for each monitored parameter.

Figures 5, 6, 7, 8 and 9 present the model verification results in terms of water levels, flow velocity, DO concentration, NH4+-N concentration and COD concentration, respectively. The mean error, absolute mean error and absolute relative mean error for each comparison are also calculated and given in Table 2. The model verification results indicate that the simulated and observed hydrodynamic variables are in excellent agreements. For three water quality variables as indicated in Figures 7, 8 and 9 and Table 2, bigger discrepancies were observed, particularly for NH4+-N concentration and COD concentration. However, considering the inherent uncertainties and complexities involved in water quality simulation process, this level of discrepancy are still acceptable and are regarded within the satisfactory range. According to the model verification results, it is believed that the developed EFDC-based model can be applied to the hydrodynamic and water quality simulation for the study reservoir section.
Figure 5

Comparison of simulated and observed water levels at Qingxichang monitoring station in 2008.

Figure 6

Comparison of simulated and observed flow velocity at Qingxichang monitoring station in 2008.

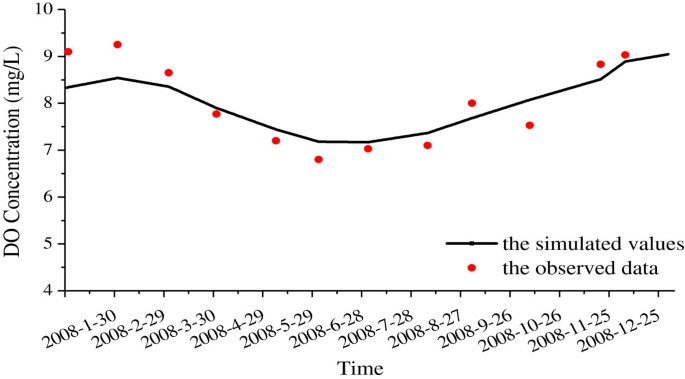

Figure 7

Comparison of simulated and observed DO concentration at Qingxichang monitoring station in 2008.

Figure 8

Comparison of simulated and observed NH 4 + -N concentration at Qingxichang monitoring station in 2008.

Figure 9

Comparison of simulated and observed COD concentration at Qingxichang monitoring station in 2008.

Table 2

Error analysis between simulated and observed verification parameters

Variable

Mean error

Absolute mean error

Absolute relative mean error

Water surface level (m)

0.081

1.004

0.65%

Velocity (m/s)

0.048

0.058

5.53%

DO (mg/L)

0.073

0.353

4.34%

NH4+-N (mg/L)

0.008

0.051

16.51%

COD (mg/L)

0.233

1.537

20.94%

Waste-load allocation optimization modeling

In order to achieve a better environmental performance through optimal waste-load allocation among different outlets, the natural assimilative capacities of the receiving water body near each outlet should be taken into consideration. For example, the field tests show that, the receiving water bodies near the discharge outlets at Changshou Chemical Plant #1, Hengliangzi Drainage, and Fuling Chemical plant, has high capacities in diluting COD by physical advection–diffusion mechanisms and chemical and biological degradation; while the receiving water bodies near the other 8 discharge outlets have higher capacities in diluting the ammonia-nitrogen (NH4+-N). For formulating the optimization model, a concept of environmental performance index (EPI) was defined to reflect combined effects of the waste load level from each outlet and the assimilative capacity of the receiving water body near the outlet. Its magnitude represents the relative importance of each outlet in improving water quality with its discharge load being optimally allocated.

The values of the EPI were determined by the AHP (analytic hierarchy process) approach. This approach decomposes the original problem into a hierarchy of more easily comprehended sub-problems, each of which can be analyzed independently. An AHP hierarchy generally consists of an overall goal, a group of options or alternatives for reaching the goal, and a group of factors or criteria that relate the alternatives to the goal. In this study, the overall goal is the overall water quality improvement and performance in the reservoir; the group of alternatives refers to the 11 discharge outlets and their calculated SI values (as presented in Table 3). These alternatives are related to the overall goal through two water pollutants, i.e., NH4+-N and COD. Once the hierarchy was built, various alternatives were systematically evaluated by comparing them to one another two at a time, with respect to their impact on a factor above them in the hierarchy. In making the comparisons, both concrete data about the alternative and any experience about the alternative’ relative importance could be used. The AHP converts these evaluations and comparisons to numerical values that can be processed and compared over the entire range of the problem. In this study, the derived EPI values are presented in Table 4, and they represent a comprehensive and rational ranking for the discharge outlets in terms of their important and weight in contributing to water quality improvement in the study section.
Table 3

The simulated PMZ values and the calculated values of DLR, PMZR and SI for each discharge outlet

Discharge outlet

COD

NH4–H



DLR

PMZ (m2)

PMZR

SI

DLR

PMZ (m2)

PMZR

SI

Sichuan Vinylon

28.38%

70331.72

32.29%

1.14

8.34%

8196.08

9.02%

1.08

Changshou Chemical #1

7.86%

15560.12

7.14%

0.91

14.54%

11215.92

12.34%

0.85

Changshou Chemical #2

2.56%

8882.03

4.08%

1.59

8.92%

12465.81

13.72%

1.54

Changshou Chemical #3

5.59%

17469.15

8.02%

1.43

17.87%

26242.91

28.88%

1.62

Changshou Drainage

4.89%

13042.31

5.99%

1.22

2.64%

2468.27

2.72%

1.03

Yudong Oil and Fat

5.00%

13513.16

6.20%

1.24

2.16%

1942.11

2.14%

0.99

Hengliangzi Drainage

8.38%

19770.31

9.08%

1.08

5.41%

5062.12

5.57%

1.03

Fuling Chemical Plant

31.72%

43934.76

20.17%

0.64

36.92%

20195.29

22.23%

0.60

Taiji Pharmaceutical Factory

2.29%

6234.39

2.86%

1.25

0.40%

398.97

0.44%

1.11

Jindi Industrial Group

2.13%

5812.61

2.67%

1.25

1.79%

1946.98

2.14%

1.19

Chuandong shipyard

1.20%

3269.58

1.50%

1.25

1.00%

728.92

0.80%

0.80

Table 4

The derived EPI values for each outlet by the APH approach

Discharge outlet

EPI values

Sichuan Vinylon

0.0843

Changshou Chemical #1

0.1068

Changshou Chemical #2

0.0593

Changshou Chemical #3

0.0581

Changshou Drainage

0.0868

Yudong Oil and Fat

0.0895

Hengliangzi Drainage

0.0885

Fuling Chemical Plant

0.1515

Taiji Pharmaceutical Factory

0.0811

Jindi Industrial Group

0.0766

Chuandong shipyard

0.1075

With the EPI being defined, a linear programing model was then formulated to search for the optimal waste-load allocation schemes. The decision variable is the ratio or percentage of wastewater discharge amount from one specific outlet over the total wastewater amount discharged from all the outlets. For this problem, our goal aims to achieve a best water quality improvement result, and thus, the objective function of the linear model is to maximize the overall environmental performance achieved by optimally allocating the wastewater discharge among all the outlets. The overall environmental performance is mathematically represented by the sum of the product of decision variable and the corresponding EPI for all the outlets. The optimal solutions are searched under a number of constraints that the existing pollution situations could be exceeded. The existing pollution situations were expressed in terms of total wastewater discharge, total pollutants discharge, and existing PMZ plume size. Also, the discharge ratio for each outlet is pre-determined in a certain range. The complete linear waste-load allocation model is presented below:

Objective function:
Max F = i = 1 11 α i x i
(6a)
Subject to:
  1. (1)
    PMZ constraint for pollutant COD
    i = 1 11 M β iCOD γ iCOD x i S 0 _ COD
    (6b)

  2. (2)
    PMZ constraint for pollutant NH4 +-N
    i = 1 11 M β iN H 4 + N γ iN H 4 + N x i S 0 _ N H 4 + N
    (6c)

  3. (3)
    Total COD discharge constraint
    i = 1 11 M β iCOD x i Q 0 _ COD
    (6d)

  4. (4)
    Total NH4 +-N discharge constraint
    i = 1 11 M β iN H 4 + N x i Q 0 _ N H 4 + N
    (6e)

  5. (5)
    Total wastewater discharge constraint
    i = 1 11 M x i Q 0 _ WW
    (6f)

  6. (6)
    Discharge ratio constraints
    x i min x i x i max
    (6g)
    i = 1 11 x i = 1
    (6h)

  7. (7)
    Technical constraints
    x i 0
    (6i)

In Model (6), x i represents the ratio or percentage of wastewater discharge amount over the total amount discharged from all the outlets, and the subscript i represent the 11 discharge outlets along the study section ( i = 1, 2, …, 11); x i max and x i min denote the upper and lower limits of x i , respectively; α i refers to the EPI for each discharge outlet (dimensionless); M is the total wastewater discharge amount from all the outlets (m3/d); β iCOD and β iN H 4 + N are the average COD and NH4+-N concentrations (in kg/m3) in the wastewater stream discharged from the i th outlet; γ iCOD and γ iN H 4 + N are the calculated numeric values of the pollutant mixing zone per unit load (in m2/(kg/d)) for COD and NH4+-N for the i th outlet, respectively (i.e., γ iCOD = PMZPL i for COD, and γ iN H 4 + N = PMZPL i for NH4+-N); S0 _ COD and S 0 _ N H 4 + N represents the existing plume of the pollutant mixing zone (m2) in the entire study section for COD and NH4+-N, respectively, calculated by the EFDC model; Q0 _ COD and Q 0 _ N H 4 + N represents total amount of pollutants COD and NH4+-N discharged currently from all the outlets (in kg/d); Q0 _ WW is the total wastewater amount discharged currently from all the outlets (in m3/d). Table 5 gives the numeric values of β iCOD , β iN H 4 + N , γ iCOD , and γ iN H 4 + N . Table 5 also presents the discharge amount of COD, NH4+-N and wastewater from each outlet (i.e., Q i  _ COD, Q i _ N H 4 + N , and Q i  _ WW, respectively), and sum of each column equals to their total, Q0 _ COD, Q 0 _ N H 4 + N , and Q0 _ WW, respectively.
Table 5

Numeric values of the parameters used in the linear optimization model

Discharge outlet

γ iCOD [m2/(kg/d)]

γ iN H 4 + N [m2/(kg/d)]

β iCOD [kg/m3]

β iN H 4 + N [kg/m3]

Q _ COD[kg/d]

Q _ N H 4 + N [kg/d]

Q _ WW[m3/d]

Sichuan Vinylon

10.11

25.94

0.11

0.005

6959

316

63260.27

Changshou Chemical #1

8.07

20.36

0.158

0.045

1927

551

12196.16

Changshou Chemical #2

14.14

36.88

0.158

0.085

628

338

3972.6

Changshou Chemical #3

12.73

38.76

0.158

0.078

1372

677

8680.55

Changshou Drainage

10.87

24.68

0.06

0.005

1200

100

20000

Yudong Oil and Fat

11.03

23.68

0.158

0.085

1225

82

7753.42

Hengliangzi Drainage

9.62

24.69

0.05

0.005

2055

205

41095.89

Fuling Chemical Plant

5.65

14.44

0.8

0.126

7778

1399

652.05

Taiji Pharmaceutical Factory

11.09

26.60

0.215

0.028

562

15

1369.86

Jindi Industrial Group

11.14

28.63

0.354

0.064

522

68

21945.21

Chuandong shipyard

11.08

19.18

0.56

0.015

295

38

1002.74

Results and discussions

The verified EFDC model was run to calculate the spatial and temporal distributions of monthly average COD and NH4+-N concentrations, which were used to calculate the size of PMZ and the value of PMZPL for each outlet. The monthly average size of PMZ formed by each discharge outlet was calculated and presented in Figures 10 and 11, with Figure 10 for COD and Figure 11 for NH4+-N. It is apparent that the PMZ size fluctuates from month to month for a specific outlet and is also different from one outlet to another. The calculated PMZ values are the fundamental data for computing other parameters, such as those data presented in Table 5.
Figure 10

Monthly average size of COD-PMZ formed by each discharge outlet.

Figure 11

Monthly average size of NH 4 + –H-PMZ formed by each discharge outlet.

The EFDC model was then run to calculate the yearly average size of PMZ for each discharge outlet, and the yearly average PMZPL can then be calculated using Equation (1). They can then be used to calculate DLR and PMZR and SI using Equations (2), (3) and (4). Table 3 gives the simulated PMZ values and the calculated values of DLR, PMZR and SI for each discharge outlet. It is indicated that different discharge outlet has different level of sensitivity index. A higher SI value represents a bigger PMZ area influenced by a specific outlet and a stronger pollution impact from the same outlet. Therefore, the concept of sensitivity index can help rank the significance and influence of a specific discharge outlet on the formation of the pollutant mixing zone in its surrounding water body in comparison to all other outlets. From this sense, a discharge outlet with a high SI has a big potential for improving reservoir water quality if a same level of waste load is cut across the board from all outlets. In other words, this outlet will have a better environmental performance than others if appropriate action is taken for water pollution control purpose.

Based on the data presented in Table 3, the yearly average PMZ size of COD and NH4+-N formed by each outlet is plotted as bar graphs in Figures 12 and 13. Figure 12 is the plot for 6 outlets in Changshou District, and Figure 13 is the plot for 5 outlets in Fuling District. In Changshou District, the biggest COD-PMZ was formed near the outlet of Sichuan Vinylon, with an area of 70331.72 m2, and it account for 51% of the total COD-PMZ formed in the reservoir section in Changshou District. The biggest NH4+-N-PMZ was formed near the outlet of Changshou Chemical #3, with an area of 26242.91 m2, which accounts for 42% of total NH4+-N-PMZ formed in Changshou. In Fuling District, the biggest COD-PMZ and NH4+-N-PMZ was both formed near the outlet of Fuling Chemical Industrial, with an area of 43934.76 m2 and 20195.29 m2, which accounts for 56% and 71% of the total formed in Fuling, respectively.
Figure 12

The simulated yearly average size of PMZ formed by 6 outlets in Changshou District.

Figure 13

The simulated yearly average size of PMZ formed by 5 outlets in Fuling District.

Similarly, the calculated yearly average of PMZPL for COD and NH4+-N is plotted as bar graphs in Figures 14 and 15, respectively. Figure 14 is the plot for 6 outlets located in Changshou District, and Figure 15 is the plot for 5 outlets located in Fuling District. Some interesting observations could be obtained. For example, the biggest yearly average PMZPL for COD appears near the outlet of Changshou Chemical #2 while that for NH4+-N is near Changshou Chemical #3. Both discharge outlets are located at Longxihe River which is a tributary of the Yangtze River. The return water from the Yangtze River changes the hydraulics of the Longxihe River and might be the main cause of a large PMZ formation. It is also observed from Figure 14 that the PMZPL value of Chemical #2 almost doubles that of Chemical #1. According to the data presented in Tables 1 and 3, the PMZ sizes formed by Changshou Chemical #1 and #2 are very close (11216 m2 for #1 and 12466 m2 for #2), however, the NH4+-N discharge load from Chemical #1 is 551 kg/d while that from Chemical #2 is only 338 kg/d. There are two possible reasons to explain this: (1) the NH4+-N concentration from Chemical #2 is much higher (0.085 kg/m3) than that from Chemical #1; (2) Chemical #1 is located at the estuary close to mainstream of Yangtze River which make the NH4+-N be easily dispersed and diluted.
Figure 14

The calculated yearly average of PMZPUL for 6 discharge outlets in Changshou District.

Figure 15

The calculated yearly average of PMZPUL for 5 discharge outlets in Fuling District.

In this study, the formulated optimization model (6) was solved using Lingo Software. The optimization results give an optimal allocation of wastewater discharge loads among 11 discharge outlets, as presented in Figure 16 and Table 5. A comparison between the existing discharge load level and the optimal load level is also provided. It is indicated that the outlets of Changshou Drainage, Hengliangzi Drainage, and Fuling Chemical Industrial need to increase their discharge load and ratio of the discharge load among the total while the allocation ratios for others need to reduced, for achieving the best environmental performance in terms of reservoir water quality improvement. It is suggested that the management policy and strategy should not only focus on the reduction of industrial wastewater discharge, but also on the increased treatment of domestic wastewater.

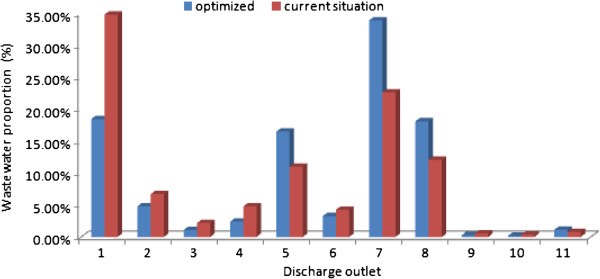

Figure 16

The optimal wastewater allocation result (blue bar graphs) and its comparison with existing discharge load level for each outlet in the study section.

Conclusions

In this study, a simulation-optimization assessment framework was developed to help address the water pollution issue in the TGR area, through combining an EFDC-based water quality simulation model and a waste-load allocation optimization model into a general methodology framework. The developed method was applied to the Changshou-Fuling reservoir section for ratifying the approach and identifying the optimal waste-load allocation schemes among its 11 wastewater discharge outlets. After being verified, the EFDC model was used to simulate the flow hydrodynamics and contaminant transport in the study reservoir section. The simulated COD and NH4+-N concentrations were used to calculated the size of pollution mixing zone formed at each discharge outlet. The pollution mixing zone per unit load as well as the sensitivity index for each discharge outlet was also calculated to reflect the connections between the pollution plume and the load strength from each outlet. These parameters were used for developing the waste-load allocation optimization model with an objective of maximized environmental performance under constraints that existing waste discharge loads in terms of total wastewater amount, total pollutant weight, and existing PMZ size formed can’ t be exceeded. Modeling results give an optimal waste-load allocation ratio for each discharge outlet within the study reservoir section, and its implications to regional water quality management were analyzed. It is anticipated that the methodology developed in this study can be extended to the entire TGR area for better water quality management studies and practices.

Declarations

Acknowledgments

This research was supported by the Major Science and Technology Program for Water Pollution Control and Treatment (No. 2009ZX07104-006), Natural Sciences Foundation of China (No. 51178005), and NSERC. The authors are grateful to the editors and the anonymous reviewers for their insightful comments.

Authors’ Affiliations

(1)
College of Environmental & Energy Engineering, Beijing University of Technology
(2)
Department of Civil and Resource Engineering, Dalhousie University
(3)
College of Architecture & Civil Engineering, Beijing University of Technology
(4)
Department of Water Environment, China Institute of Water Resources and Hydropower Research
(5)
China Institute of Water Resources and Hydropower Research

References

  1. Blumberg AF, Mellor G: A description of a three dimensional ocean circulation. In Three-dimensional coastal ocean models. Coastal and estuarine science. Edited by: Heaps NS. Washington, DC: American Geophysical Union; 1987:1–19. vol 4. vol 4.View ArticleGoogle Scholar
  2. Cai ZG, Zhang AD, Zhang J: Optimized control on water level between Three Gorges dam and Gezhouba dam and its benefit analysis. J Hydroelectric Eng 2010,29(3):11–17.Google Scholar
  3. Chapra S, Pelletier G, Tao H: QUAL2K: A modeling framework for simulating river and stream water quality, Version 2.07: Documentation and user’s manual. Medford, Massachusetts, USA: Civil and Environmental Engineering Department, Tufts University; 2007.Google Scholar
  4. Chapra SC: Engineering water quality models and TMDLs. J Water Res Pl-ASCE 2003,129(4):247–256. 10.1061/(ASCE)0733-9496(2003)129:4(247)View ArticleGoogle Scholar
  5. Chen HW, Yu RF, Liaw SL, Huang WC: Information policy and management framework for environmental protection organization with ecosystem conception. Int J Environ Sci Te 2010,7(2):313–326. 10.1007/BF03326141View ArticleGoogle Scholar
  6. Cho JH, Ahn KH, Chung WJ, Gwon EM: Waste load allocation for water quality management of a heavily polluted river using linear programming. Water Sci Technol 2003,48(10):185–190.Google Scholar
  7. CWRC (Changjiang Water Resource Commission): Study on eco-environmental impacts of Three Gorges project. Wuhan: Hubei Science and Technology Press; 1997.Google Scholar
  8. DHI: MIKE 11: A modeling system for rivers and channels: short introduction tutorial. Horsholm, Denmark: DHI Software; 2003.Google Scholar
  9. Guo SL, Chen JH, Li Y: Joint operation of the multi-reservoir system of the Three Gorges and the Qingjiang cascade reservoirs. Energies 2011,4(7):1036–1050.View ArticleGoogle Scholar
  10. Hamrick JM: A user’s manual for the environmental fluid dynamics computer code (EFDC). The College of William and Mary. Virginia Institute of Marine Science, Special Report; 1996.Google Scholar
  11. Huang C: An one-dimension water body eutrophication simulation model for Chongqing section of the Three Gorges Reservoir. Chongqing, China: Dissertation, Southwest University; 2006.Google Scholar
  12. Igbinosa EO, Okoh AI: Impact of discharge wastewater effluents on the physico-chemical qualities of a receiving watershed in a typical rural community. Int J Environ Sci Te 2009,6(2):175–182. 10.1007/BF03327619View ArticleGoogle Scholar
  13. Igwe JC, Abia AA, Ibeh CA: Adsorption kinetics and intraparticulate diffusivities of Hg, As and Pb ions on unmodified and thiolated coconut fiber. Int J Environ Sci Te 2008,5(1):83–92. 10.1007/BF03326000View ArticleGoogle Scholar
  14. Jiang CB, Zhang LM, Chen LQ: Parallel numerical simulation of pollution mixing zones in Fuling reach of Three Gorges Reservoir. J Hydroelectric Eng 2005, 24: 82–87.Google Scholar
  15. Li YP, Huang GH, Nie SL, Chen X: A robust modeling approach for regional water management under multiple uncertainties. Agric Water Manage 2011,98(10):1577–1588. 10.1016/j.agwat.2011.05.008View ArticleGoogle Scholar
  16. Yibing LV, Zhengyu G, Jun L: Status of Water Quality in the Three Gorge s after the Water Storage Period. Res Env Sci 2007,20(1):1–6.Google Scholar
  17. Mujumdar PP, Vemula VRS: Fuzzy Waste Load Allocation Model: Simulation-Optimization Approach. J Comput Civil Eng 2004,18(2):120–131. 10.1061/(ASCE)0887-3801(2004)18:2(120)View ArticleGoogle Scholar
  18. MWRC (Ministry Of Water Resources of China): Hydrology annals of the People’s Republic of China: hydrological data of Yangtze basin. 2008, 9–355. vol 6. vol 6.Google Scholar
  19. Parka K, Jungb HS, Kimb HS, Ahnc SM: Three dimensional hydrodynamic eutrophication model (HEM-3D): Application to Kwang-Yang Bay, Korea. Mar Environ Res 2005,60(2):171–193. 10.1016/j.marenvres.2004.10.003View ArticleGoogle Scholar
  20. Qin X, Xu Y: Analyzing urban water supply through an acceptability-index-based interval approach. Adv Water Resour 2011,34(7):873–886. 10.1016/j.advwatres.2011.04.012View ArticleGoogle Scholar
  21. Shah BA, Shah AV, Singh RR: Sorption isotherms and kinetics of chromium uptake from wastewater using natural sorbent material. Int J Environ Sci Te 2009,6(1):83–92.View ArticleGoogle Scholar
  22. Sun YT, Lv WG: Optimization of technical water supply system in three gorges power station. East China Elect Power 2010,38(8):1188–1191.Google Scholar
  23. Tetra Tech I: The environmental fluid dynamics code user’ manual, US EPA Version 1 .01. Fairfax, Virginia, USA: Tetra Tech Inc; 2007.Google Scholar
  24. Wang XP, Ruan Q: Optimization model for ship lock scheduling plans using ant colony algorithm. J Huazhong Univ Sci Tech 2011,39(8):100–103.Google Scholar
  25. Wool TA, Ambrose RB, Martin JL, Comer EA: Water quality analysis simulation program (WASP) Version 6.0, User’ s Manual. Region 4, Atlanta, USA: US EPA; 2001.Google Scholar
  26. Wu GZ, Xu ZX: Prediction of algal blooming using EFDC model: Case study in the Daoxiang Lake. Ecol Model 2011,222(6):1245–1252. 10.1016/j.ecolmodel.2010.12.021View ArticleGoogle Scholar
  27. Xie R, Wu DA, Yan YX: Fine silt particle pathline of dredging sediment in the Yangtze River deepwater navigation channel based on EFDC model. J Hydrodyn 2010,B22(6):760–772.View ArticleGoogle Scholar
  28. Yang CC, Chen CS, Lee CS: Comprehensive river water quality management by simulation and optimization models. Environ Model Assess 2011,16(3):283–294. 10.1007/s10666-010-9247-xView ArticleGoogle Scholar
  29. Zhao X, Shen ZY, Xiong M: Key uncertainty sources analysis of water quality model using the first order error method. Int J Environ Sci Te 2011,8(1):137–148. 10.1007/BF03326203View ArticleGoogle Scholar
  30. Zuo SH: Introduction of numerical simulation software Dleft3D and its application on offshore area of Aojiang Estuarine. J China Hydrol 2007,27(6):55–58.Google Scholar

Copyright

© Wang et al.; licensee Springer. 2014

This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
