- Open Access
The rainfall and discharge trends of Surma River area in North-eastern part of Bangladesh: an approach for understanding the impacts of climatic change
Environmental Systems Research volume 8, Article number: 28 (2019)
Bangladesh is known as a deltaic plain at the confluence of the Ganges, Brahmaputra and Meghna River Basins (GBM) and their tributaries. The rainfall pattern of northeastern part of Bangladesh is changing along with the discharge pattern of Surma River. In this study, the changes in precipitation of Sylhet and river discharge of Surma River and the relationship between them were investigated. The study emphasizes on the influence of climatic component (rainfall) on the hydro-characteristics of river. The time series data from 1973 to 2016 (44 years) of rainfall and river discharge of Surma River were collected and analyzed. The basic hydro-characteristics, including arithmetic mean, variability, skewness, distribution type, persistence, dependence, trend, and correlation have been studied through various statistical methods, including coefficient of variation, Mann–Kendall test, Sen’s slope estimator, and Pearson’s coefficient of correlation.
The rainfall trend shows moderate year-to year variability although there is an indication of declining rainfall trend. As with rainfall, the river discharges show moderate year to year variations that are related to the variability in rainfall. The decreasing rate is 1.53 mm for rainfall and − 1.51 m3/s for discharge (Mann–Kendall test). The rainfall was increasing from 1973 to 1989 but after 1990 it is reduced. The mean discharge of Surma River was 845.99 M3/s. The rainfall started to fall down extremely from 1990 to 2016 but before that the rainfall showed an increasing trend with modest slope. It is possible that the declining trend in rainfall observed in Sylhet is a result of climate change which causes the declining of Surma River discharge. Over these 44 years analysis, the rainfall and discharge shows a very decreasing trend and both rainfall and discharge were highly related for most of the time.
In conclusion, it can be noticed that the rainfall in Sylhet has been reduced from the time 1973 to 2016 which directly affects the discharge of Surma River. Consequently, this result might be the indication about the effect of climatic change in the local as well as global level.
Bangladesh is located in South Asia. It extends from 20°34′N to 26°38′N latitude and from 88°01′E to 92°41′E longitude. Bangladesh has got about 700 rivers. Due to the presence of a large number of rivers, Bangladesh is called a riverine country (Alam 2007). River is a topographical feature. The natural and anthropogenic influences force the geographical feature, e.g. river to a frequent change (Khublaryan 2009; Spencer and Thomas 1987). The source of the water drains by the river is precipitation, melting of glaciers, baseflow from groundwater, etc. (Raghunath 2006). The rivers of Bangladesh are morphologically dynamic characterized by erosion and sedimentation (Habibullah 1987). River discharge varies over space and time. In fact, the climate change impact studies for individual drainage basins mostly focus on changes of river discharge (Lahmer et al. 2001). Global-scale studies on the impact of climate change on river flow regimes are still rare (D¨oll and Zhang 2010; Hirabayashi et al. 2008; Mitchell et al. 1966). In many regions, the changing precipitation or melting of snow and ice is altering hydrological systems, affecting water resources in terms of quantity and quality (Jiménez et al. 2014). The potential impacts of climate change and variability have received a great deal of attention from researchers in a variety of fields. Reviews of related work include (Kundzewicz et al. 2007) and the Inter-governmental panel on climate change (IPCC 2007). From these works, a range of potential impacts on the hydrologic regime for various geographic areas has been hypothesized. Many researchers analyzed the trend of discharge change of different country and regions. Monthly mean discharge in Canada for most months decreased, with the strongest decrease in summer and autumn months (Zhang et al. 2006). There is an upward discharge trend pattern at United States with the exception of a small number of downtrends concentrated in the Northwest, Florida, and coastal Georgia (Lettenmaier et al. 1994). The trend of 26 basins in Turkey showed in general downward trend (Kahyaa and Kalayci 2004). The annual maximum discharge and water level (WL) of Yangtzee river in China has downward trend at upper stream while at middle and lower stream has upward trend (Zhang et al. 2006). In short, streamflow characteristics are changing all over the world. Parajuli (Parajuli et al. 2015) deals with the river discharge and rainfall pattern of Marshyangdi River Basin. Croitoru and Minea (2015) try to assess the impact of climate changes on rivers discharge in Eastern Romania. Billah et al. (2015) focused on the impact of climate change on the river flows in Southwest region of Bangladesh. However, many studied have been conducted on the quality of water of Surma River for example (Alam 2007; Ahmed et al. 2010; Islam 2016 and so on). According to the Third Assessment Report of IPCC, South Asia is the most vulnerable region of the world to climate change impacts (McCarthy 2001). The international community also recognizes that Bangladesh ranks high in the list of most vulnerable countries on earth. Hydrologic changes are the most significant potential impacts of global climate change in Bangladesh (Organization for Economic Co-operation and Development 2003). It has been predicted that due to climate change, there will be a steady increase in temperature and change in rainfall pattern of Bangladesh (IPCC 2007). According to IPCC (2007), an increase in average global temperature will lead to changes in precipitation, atmospheric moisture due to the changes in atmospheric circulation, and increase in evaporation and water vapor. The rainfall in North-eastern Bangladesh have a downward or decreasing trend (Begum and Alam 2013; Basak et al. 2013). So, it is expected that there must be a change in stream flow of the Surma River with the change in rainfall pattern. Thus this research aims to investigate the change in rainfall and discharge pattern, and their relation to imply the future impact on water resources and environment of this river. This study is a very innovative one with respect to this area because no one done this kind of research before within this study area. The result of this study will help the people to understand the possible impact of climate change on river discharge of Surma River. It will also help the policy maker to make proper management plan. Many studies, projects and programs have taken before but effects of climate change on Surma River are rare. As Climate change cause many damage in river but this kind of study is very rarely seen. The Surma River discharge is decreasing but no study was done before to see the cause of this decrease.
Therefore, the main aims and objectives of this study are:
To analyze the trends in discharge of Surma River along with the rainfall pattern of Sylhet.
To measure and discuss the effects of climate change on discharge of Surma River.
Study Area and the characteristics of Surma River

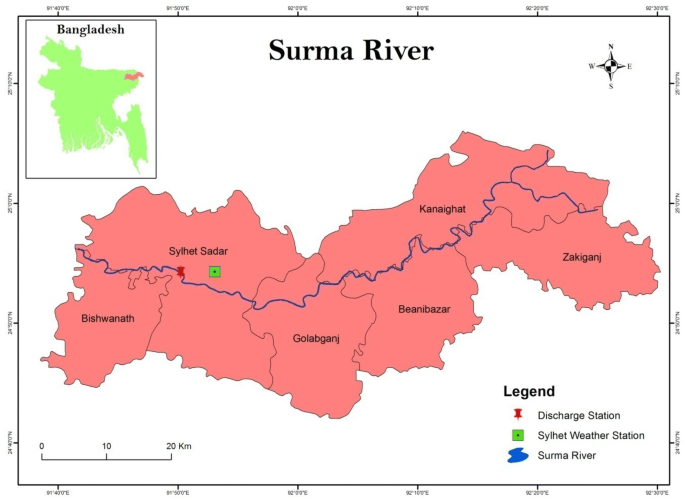

Sylhet is the major city in the North-eastern Bangladesh, located on the banks of the Surma River (Fig. 1). This area is surrounded by the Jaintia, Khasi, and Tripura hills. The Surma Basin, covered the eastern parts of the Bangladesh, and encompasses about 8 million peoples making it a populous river basin in Bangladesh. Most of these peoples depend on the Surma Basin for their domestic, manufacturing and other purposes. The Surma River is a branch of the Barak River which is developed from the southern slopes of the Naga-Manipur watershed. The Barak splits into two branches in the Cachhar district of Assam in India. In fact Surma is the northern branch of Barak, flows west and then southwest to Sylhet town. Beyond the Sylhet, it flows northwest and west to Sunamganj town. From there to southwest, and then south to Madna, where it meets with the kushiyara river, the other branch of the Barak. It receives a variety of rivers and streams flowing south from the Meghalaya Plateau. From east to west, they are the Lubha, Hari (Kushia), Goyain Gang (ChengarKhal), piyain, Bogapani, Jadukata, Shomeshwari and kangsa. However, the characteristics of the River are consisted of two major subdivisions such as hydrological and geomorphological characteristics. The hydrological characteristics include the mean rate of water flow, flood stage, discharge trend, and so on (McMahon 1982). Whereas, the geomorphological features comprise the erosional and depositional activities, the shape of the channel, river bed, sedimentation, etc. (Singh 1998).
Data and methods
The Surma River flows between Sylhet and Sunamganj district. But there is no weather station in Sunamganj. For this reason, the rainfall data was collected only from the Sylhet Station. For this study, the rainfall data was collected from WARPO (from 1972 to 2013). The latest data were collected from BMD (from 2014 to 2016). The daily time series discharge data from 1973 to 2006 and observed discharge data in a certain interval from 2007 to 2016 in Sylhet station have been collected and analyzed in this study. Total period of discharge data is 44 years (from 1973 to 2016). Yearly mean, seasonal mean, annual peak, annual minimum data set were produced from these time series and observed data set. Originally, the Discharge data is recorded by Bangladesh Water Development Board (BWDB). The period of discharge data, and climatic variable data is 44 years. However, the data for more than 30 years of period is considered as standard data period for trend analysis. Various statistical methods have been operated to derive the hydro-characteristics of Surma River. Two types of data, mean discharge and rainfall, have been analyzed. Collected data set from BMD and WARPO was daily time series data. This data set are computed and prepared by software application. Collected time series data has some missing. Missing value is interpolated during data processing. In case of temperature, rainfall and discharge, the value on 1 month is closely related to the value on the previous and following month. So, when gaps in the record are short, not more than 2 month, it may be acceptably accurate to use linear interpolation between the last value before the gap and the first value after it. Following formula is used to apply linear interpolation (Aziz 2008).
Here, Y = New discharge/rainfall; Y1 = Previous discharge/rainfall value; Y2 = Discharge/rainfall value of following day(s); X = New year; X1 = Previous year; X2 = Following year.
During periods of variable flow or in longer gaps, simple interpolation should not be used and relation/regression equations may be applied to fill in missing data. Regression relations may be obtained for annual, monthly or daily series. Longer gaps of discharge data have been interpolated by regression method. The following regression formula is used.
Here, y = discharge/rainfall value (dependent); x = time period/year (independent); b = Regression coefficient or changing rate for one unit change in ‘x’; a = intercept.
The median is the number at which half your measurements are more than that number and half are less than that number. The median is actually a better measure of centrality than the mean if your data are skewed, meaning lopsided. The mean is just the average. It is the sum of all your measurements, divided by the number of measurements. This is the most used measure of central tendency, because of its mathematical qualities. It works best if the data is distributed very evenly across the range, or is distributed in the form of a normal or bell-shaped curve. The range is the measure from the smallest measurement to the largest one. This is the simplest measure of statistical dispersion or “spread.”
The standard deviation is the “average” degree to which scores deviate from the mean. More precisely, you measure how far all the measurements are from the mean, square each one, and add them all up. The result is called the variance.
Prior to applying MK tests to identify precipitation trends over the time series from selected stations, data were tested according to the tests’ requirements. The magnitude of the slope in time series data was calculated using Sen’s slope method. The Mann–Kendall (MK) test (Mitchell et al. 1966; Kendall 1975; Mann 1945; Gilbert 1987; Helsel and Hirsch 1992) has widely used in hydrological studies. This test evaluates whether outcome values tend to increase or decrease over time. The magnitude of trend is estimated by the Sen’s estimator (Sen 1968; Islam 2016). The regression between two variables is called linear regression. The linear regression between the dependent variable y and independent variable x can be written as equation of a straight line.
where, a is the intercept, b is the regression coefficient or shape and e are random error components. Positive (negative) value of b indicated upward (downward) trend. b is the slope of trend line. a shows the point where trend line intersects the y axis.
The Coefficient of correlation is a numerical measure of the correlation between two fluctuating series, and is denoted by r, it is used to assess the relation between rainfall and discharge. When r = + 1, there exists perfect positive correlation, the r = − 1, there exists perfect negative correlation and when r = 0, there is no correlation. The coefficient of determination is the square term of coefficient of correlation (r). It is usually denoted by r2 that indicates the proportion of the variance in the dependent variable that is predictable from the independent variable (Aziz 2008; Howladar et al. 2014; Howladar and Rahman 2016; Howladar et al. 2017; Numanbakth et al. 2019). It applies to determine the fitting the observed values with the outcomes values. The probable error (Aziz 2008; Islam 2016; Howladar et al. 2019) is used to find out the reliability or significance of the value of Pearson’s coefficient of correlation. The Skewness has been measured to understand the asymmetry or departure from symmetry of a distribution of the data.
Results and discussions
The characteristics of discharge and rainfall features in the study area
The preliminary analysis for this study included the mean, standard deviation, coefficient of skewness, coefficient of kurtosis, and coefficient of variation for understanding the annual precipitation time series for each station.
The measured coefficient of skewness of the annual mean rainfall at Sylhet is 0.62 that means the distributions are positively skewed and not symmetrical (Table 1). The Tails on the right side of the shapes are longer than left sided tail. The mean of the distributions is higher than the median. It revealed that, smaller values than mean flow is concentrated at the left side. Most of the smaller values of mean annual flow have been occurred in later years. The Lowest and highest annual mean found in 1994 and 1988 which was 328.66 mm and 606.44 mm respectively (Table 1). The range of rainfall in Sylhet is 277.77 mm (Table 1). The Highest monthly peak rainfall was 1394 mm in July of 2004 (Table 1). The Lowest monthly rainfall was 0 mm that means in many times there was no rainfall in January, November and December. The highest and lowest rainfall was in June and December which is 797.61 mm and 9.48 mm respectively (Table 1).
Collected data from 1973 to 2016 from Sylhet gauging Station is taken into consideration. The mean discharge and median of Surma River is 845.99 M3/sand 851.52 M3/s respectively which indicates that half of discharge measurements are more than 851.52 M3/sand half is less than 851.52 M3/s (Table 1). The Standard Deviation is 282.67 M3/s represented that the mean discharge of Surma River is not consistent, it is fluctuating over time with a very high rate (Table 1). The discharge distributions are positively skewed and not symmetrical because the measured coefficient of skewness of annual mean discharge at Sylhet is 0.62 which means the right side of the shapes are longer than left sided tail. The mean of the distributions is higher than the median which means smaller values than mean flow are concentrated at the left side. Most of the smaller values of mean annual flow have been occurred in later years. In additional, maximum of larger values has been occurred in earlier years. The Lowest and highest annual mean found in 2014 and 1991 respectively which was 343.55 M3/sand 1390.47 M3/s (Table 1). The range of discharge in Surma River is 1046.91 M3/s (Table 1). The highest monthly peak flow was 3310.96 M3/s in June of 1990 (Table 1). On the contrary, the lowest monthly peak flow was 1.77 M3/s in April of 2014 (Table 1). The peak discharge occurs in August which is 2176.87 M3/s and lowest discharge occurs in January which is 19.00 M3/s (Table 1).
Monthly trend analysis
The average monthly rainfall and discharge from 1973 to 2016 are depicted in Fig. 2. The maximum rainfall is seen in June and it is 797.61 mm (Fig. 2). In January Surma River gets the lowest Discharge which is 9.48 mm. Though November to February winter season in these months very poor amount of precipitation fall. Monsoon is the season of rain which is from July to August these 4 months the highest amount rainfall is available.
The average discharge from 1973 to 2016 was not consistent monthly. The premier discharge is seen in August which is 2176.87 M3/s though it lies in monsoon season. In January Surma River gets the poor amount of discharge which is 19.00 M3/s which means the river is almost dry because it is lies in winter season.

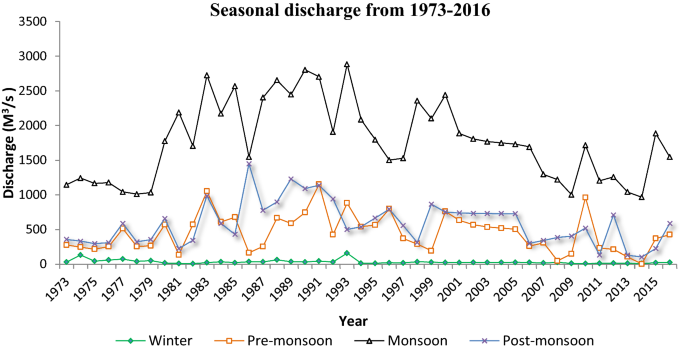

Trends in seasonal mean discharge of Surma River
Four distinct seasons (Rashid 1991) have taken into consideration. They are: Winter (December–February), Pre-monsoon (March–May), Monsoon (June–September) and the last one is Post-monsoon (October–November). Winter is considered as a dry season while the other three seasons are considered as wet season.
Discharge of winter is calculated from December of previous year to February of the following year. Feasibility of parametric trend has been studied by normality test. As a normality test, Kolmogorov–Smirnov test shows that the seasonal value of the discharge is not normally distributed. The seasonal mean discharge of Surma River from 1973 to 16 are presents a line graph in Fig. 3. Monsoon season drains tremendous amount of water rather than the other season. Winter season drains the lowest amount of water (Fig. 3). Both pre-monsoon and monsoon drains a moderate amount of water. Discharge in winter is extremely lower than the other three seasons.
Trends in seasonal mean rainfall in Sylhet
The seasonal mean rainfall from 1973 to 2016 are depicted in a line graphs in Fig. 4. The mean rainfall in pre-monsoon is declining over the period of time within a slower rate. The highest and lowest rainfall in Pre-monsoon season occurred in 2016 and 1979 respectively which were 599 mm and 177.7 mm. The rainfall in pre-monsoon season is not consistent; it shows lots of ups and downs.
In the monsoon season the highest rainfall gets and in July it is highest in Sylhet. In recent year the rainfall of Monsoon season is decreasing with a moderate rate. In 1989 rainfall was 989.5 mm which was highest in Monsoon season among the study period. However the lowest rainfall was seen in 1980 which was 341.75 mm. In this season the rainfall was not in a consistent form it was changing over time to time. In the middle of the study periods (1981 to 1993) the rainfall showed increasing pattern but after 1993 it started to fall down. Whereas, in recent year the rainfall again falling down in a moderate rate.
In recent years the rainfall of Post-monsoon season is showing a decreasing trend where in this season gets moderate rainfall. In Post-monsoon season the rainfall was highest in 1986 which was 280 mm whereas the lowest rainfall found in 1982 which was 17.76 mm. The rainfall in Pre-monsoon season is not consistent; it shows lots of fluctuations. In the middle period from 1983 to 1990, the rainfall was increasing in Monsoon within a moderate rate. After 1990 the trend of rainfall in Monsoon started to fall down. In recent year the rainfall in Monsoon season showing a little decreasing trend with a moderate slope. In winter, the lowest rainfall exhibits.
In the winter season the rainfall is very low and in recent years the rainfall of winter season is declining moderately (Fig. 4). The highest rainfall in winter season occurred in 2001 which was 47.34 mm (Fig. 4). On the contrary, in the Year 1974 and 1978 no rainfall exhibits in winter season in Sylhet. The rainfall in winter season is not consistent. It shows a notable anomaly (Fig. 4). In the middle period from 1987 to 1996, the rainfall in winter session was slightly higher than the rest of time period (Fig. 4) whereas after 1990 the rainfall in Monsoon started to fall down (Fig. 4). In recent year, the rainfall in Monsoon started to decline moderately (Fig. 4).
Relation between the Annual and seasonal rainfall and discharge trends in the study meteorological station
Variation of yearly rainfall at Sylhet has been depicted from the study period 1973 to 2016 (Fig. 5). The mean rainfall in pre-monsoon shows a little decreasing rate over the period of time. The highest rainfall in Pre-monsoon season occurred in 2016 which was 599 mm (Fig. 4). On the other hand, the lowest rainfall occurred in 1979 which was 177.7 mm (Fig. 4). In the monsoon season the highest rainfall gets (Fig. 4). In June the highest monthly rainfall exhibits in Sylhet (Fig. 2). In recent year the rainfall of Monsoon season is showing a decreasing trend (Fig. 4). The highest and lowest rainfall in Monsoon season occurred in years 1989 and 1980 which was 989.5 mm and 341.75 mm respectively (Fig. 4). In recent years the rainfall of Post-monsoon declining moderately (Fig. 4). The highest rainfall in Post-monsoon season occurred in 1986 which was 280 mm (Fig. 4). The lowest rainfall in Post-monsoon season occurred in 1982 which was 17.76 mm (Fig. 4). Along with the rainfall of Sylhet district the discharge of Surma River also shows a decreasing trend in all season.
Figure 5 shows the mean annual rainfall from 1973 to 2016 and it is declining. The mean annual rainfall in this period is not consistent. From the graph it is seen that from the very beginning of 1973 the rainfall was above 450 mm, in the following year in 1974 the rainfall increased a lot which was above 550 mm (Fig. 5). Than in 1975 again the mean annual rainfall decreased (Fig. 5). In the period of 1975 to 1981, the rainfall shows a decreasing trend (Fig. 5). From 1982 to 1987 the mean annual rainfall was moderate (Fig. 5). From 1988 to 1992, the mean rainfall shows a very increasing trend (Fig. 5). In the year 1988 the highest mean annual rainfall occurred (Fig. 5). From 1993 to 2016 the mean annual rainfall shows a decreasing trend. There was little anomaly in the rainfall pattern. In the year 2010 the mean annual rainfall was above 500 mm (Fig. 5). From 1973 to 2016 overall the mean annual rainfall shows a decreasing trend (Fig. 5). In recent, the rainfall in Sylhet decreased causing many effects on environment and economy. Due to the change of rainfall, the discharge pattern of Surma River might be changed. Consequently, the flow of water and the morphological structure of the river is reshaping with time. The mean annual discharge from 1973 to 2016 is showing decreasing trend (Fig. 5).
Pre monsoon and post monsoon characteristics

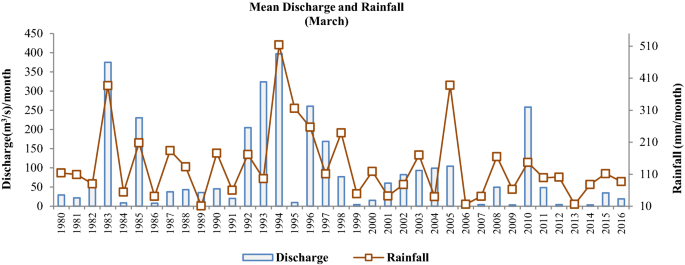

The rainfall and discharge of Surma River in March in these 44 years were analyzed to get a brief explanation of the dependency of discharge on rainfall. March is considered as a represents of Pre monsoon season, like this the Rainfall and discharge of July months also analyzed. July month is considered for monsoon season.
The above figure from 6 shows means rainfall and discharge from 1980 to 2016 in March. The discharge and rainfall in March is shown pretty similar change when the rainfall was low the discharge on that year was also very poor. In 1994 both rainfall and discharge was very high in March (Fig. 6). On the other hand in some years like 1984, 1986, 1999, 2007 both the rainfall and discharge was very poor (Fig. 6). Some anomalies also presented here, in 1995 and 2005 rainfall was high but the discharge was not that satisfactory (Fig. 6) this may be happened due to less runoff and more penetration of rainfall in soil. Therefore some different case also detected, in 1985, 1993 and 2010 the discharge was high where the rainfall was not that satisfactory in Sylhet that might be the cause of rainfall in the upstream (Meghalaya—India). The rainfall in Meghalaya has some direct influence in the river discharge of Surma River because the Barak river originate from the Lusai hill in Assam and Surma is a branch of Barak river. It would be more valuable if the climatic data of upstream (Meghalaya- India) could analyze and detect the relation with the discharge of the river. It was one of the limitations of this study that the upstream climatic data was not purchasable to the researcher.
The above figure represents mean rainfall and discharge from 1980 to 2016 in July. From those figure it is seen that the discharge and rainfall is decreasing in recent years. Both rainfall and discharge is showing a decreasing trend (Fig. 7). The relation between rainfall and discharge within these years was almost similar but some differentiation also found. From 1980 to 1994 both the rainfall and discharge was high but in the following years both starting decreasing. Though the rainfall presented some anomalies but the discharge pattern was almost same. In 1999, 2002, 2005 and 2007 rainfall was much higher than the previous years but the case of discharge was different. From 2000 to 2008 the amount of discharge in July was almost similar. In 2009 discharge decreased a lot but then the following three consecutive years (2010–2012) discharge increased. Again from 2013 it stared decreasing.
Table 2 shows the statistical result of Mann–Kendall Test and Sen’s Slope of annual mean rainfall, total rainfall and discharge. The mean annual rainfall and the total rainfall both are showing a decreasing trend. At 95% significant level (α = 0.05), above α value trend is not significant. If the p value is less than α value than the MK trend is significant.
For Both trends is significant at 95% significant level. Sen’s Slope measure the magnitude of the trend. How far the mean rainfall of Sylhet is deviate from the trend line per year is given by the Sen’s Slope Estimate value. Negative values of Sen’s Slope Estimate indicate the downward trend. Sen’s slope for both mean annual rainfall and total rainfall are − 1.53 mm and − 13.77 mm (Table 2). From table the values of MK Test and Sen’s Slope Estimate the mean Discharge of Surma River shows a downward trend. Here, Slope of trend of Surma River is − 1.51 (Table 2). Both the MK Test and Sen’s Slope shows the decreasing trend (Table 2). It can be concluded that the mean Discharge of Surma River is decreasing with a little moderate rate (Table 2).
Table 3 shows the statistical result of Mann–Kendall Test and Sen’s Slope of seasonal mean Discharge. In winter and post-monsoon MK test value was not significant at 95% significant level. In Pre-monsoon and monsoon discharge of Surma River shows a downward trend and the trend is significant at 95% significant level. According to Sen’s Slope estimate, changes in mean Discharge of Surma River in pre-monsoon and monsoon are, − 1.28, and − 1.86 respectively (Table 3). In monsoon season the decreasing rate was higher than the pre-monsoon season.
The statistical result of Mann–Kendall Test and Sen’s Slope of seasonal mean rainfall is presented in Table 4. Among four seasons the Pre-monsoon, Post-monsoon and Monsoon trend is significant at 95% significant level. According to Sen’s Slope estimate, changes in mean seasonal rainfall in Sylhet in pre-monsoon, post-monsoon and monsoon are − 11.56, − 1.84 and − 5.19 respectively (Table 4). In pre-monsoon season the change of rainfall in per year was highest. In winter season the change of rainfall per year is lowest.
Effects of climate change on river discharge
The impacts of climate and hydrological changes cover all spatial scales, from local to global (Lahmer et al. 2001; Coulthard et al. 2005). There is now substantial evidence indicating that over the most recent decades, the global hydrological cycle has already been responding to observed global warming (Bates et al. 2008), which includes an increasing atmospheric water vapor content and changing precipitation pattern. In many regions, the changing precipitation or melting of snow and ice is altering hydrological systems, affecting water resources in terms of quantity and quality (Jiménez et al. 2014). In context with global climate change the climate of Bangladesh is also changing. With respect to climate change the hydrology and morphology of river is also changing. In Statistics, a relation is any involvement between two measured quantities that renders them statistically dependent (Upton and Cook 2006). The behavior of river hydrology is closely related to rainfall. Rainfall is a key constituent of climate. To understand the effects of climate on river discharge 44 years’ time series data of discharge and rainfall are analyzed together. Correlation and regression method was used to determine the impact of climate change on river discharge. The rainfall of Sylhet trend shows normal year-to year decreasing trend although there is an indication of declining rainfall trend. As with rainfall, the river discharges show normal year to year variations that are related to the variability in rainfall. Table 5 presents the Pearson’s coefficient of correlation between annual mean rainfall and annual mean discharge of different season.
The Coefficient of correlation r of annual mean discharge and annual mean rainfall is 0.69 is close to + 1 which indicates a strong positive relation between them. It is also seen in the Fig. 5 that the changes in rainfall and discharge are very similar. The discharge of Surma River was declining along with declining of rainfall in Sylhet (Fig. 5) On the other hand the P.E. of r between them is 0.053 (Table 5). The Coefficient of correlation r is six times more than the P.E of r which indicates the Coefficient of correlation r is significant. Multiple R square is 47.61 which means 47.61% of annual mean discharge depend on the annual mean rainfall (Table 5), the rest of discharge might gets from the rainfall in upstream region (Meghalaya). The positive value of regression coefficient means that changes in rainfall positively impacts the change in discharge (Table 5) which is seen in Fig. 5.
The r between winter rainfall and discharge is 0.49 which presents a moderate positive relation (Table 6). On the other hand the P.E. of r between them is 0.077 (Table 6). The Coefficient of correlation r is six times more than the P.E of r which indicates the Coefficient of correlation r is significant. Multiple R square is 24.01 which means 24.01% of annual mean discharge depend on the annual mean rainfall (Table 6). The r between pre-monsoon rainfall and discharge is 0.57 which presents a moderate positive relation which is also. On the other hand the P.E. of r between them is 0.06 (Table 6). The Coefficient of correlation r is six times more than the P.E of r which indicates the Coefficient of correlation r is significant. Multiple R square is 31.49 which means 31.49% of annual mean discharge depend on the annual mean rainfall (Table 6). The r between Post-monsoon rainfall and discharge is 0.64 which presents a strong positive relation (Table 6). On the other hand, the P.E. of r between them is 0.06. The Coefficient of correlation r is six times more than the P.E of r which indicates the Coefficient of correlation r is significant. Multiple R square is 40.96 which means 40.96% of annual mean discharge depend on the annual mean rainfall (Table 6). A very good amount of discharge depends on the rainfall. It can say, the values indicate that the strength of association between the variables is very high (r = 0.64), and that the correlation coefficient is very highly significantly different from zero (P < 0.001) (Table 6). Also, we can say that 40.96% (0.4096) of the variation in discharge is explained by rainfall (Table 6).
The mean discharge of Surma River is 845.99 M3/s. The Standard Deviation is 282.67 M3/s which is far from the annual mean of 845.99 M3/s that the mean discharge of Surma River is not consistent and fluctuating over time. The Highest annual mean discharge found in 1991 which was 1390.47 M3/s. The Sen’s slope for both mean and annual rainfall and total rainfall are − 1.53 mm and − 13.77 mm, respectively which indicates a decreasing trend. The discharge of Surma River shows a moderate positive relation with rainfall. When the rainfall decreases the discharge of Surma River is also decreases. When the rainfall increases, discharge is also increases. About 50% of discharge can be explained by rainfall in Sylhet. In addition, due to the change of rainfall, the discharge pattern of Surma River might be changed. Consequently, the flow of water and the morphological structure of the river is reshaping with time. At the end, the overall scenarios of fluctuations of the river from 1973 to 2016 is obvious which might be the indication of the climatic change in local as well as globally.
Availability of data and materials
The data are presented in the main manuscript.
Meghna River Basins
inter-governmental panel on climate change
Bangladesh Meteorology Department
Bangladesh Water Development Board
coefficient of correlation (r)
Ahmed M, Ahmed AAM, Mazumder RK (2010) Deterioration of water quality of Surma River influenced by natural canals passing through Sylhet city of Bangladesh. Presented in international conference on environmental aspects of Bangladesh (ICEAB10), Japan
Alam MJB (2007) Study of morphological change of the Kushiyara and Monu Rivers by remote sensing. Int J Sedim Res 22(2):159–167
Aziz MA (2008) Business statistics, 4th edn. The Angel Publication, Dhaka, pp 268–269
Basak JK, Titumir RAM, Dey NC (2013) Climate change in Bangladesh: a historical analysis of temperature and rainfall data. J Environ 2(2):41–46
Bates BC, Kundzewicz ZW, Wu S, Palutikof JP (eds) (2008) Climate change and water, technical paper of the intergovernmental panel on climate change. IPCC Secretariat, Geneva, pp 3–4
Begum S, Alam MS (2013) Climate change impact on rainfall over Bangladesh for last decades. Int J Open Sci Res 1(4):1–8
Billah M, Rahman MM, Islam AK, Islam GT, Bala SK, Paul S, Hasan MA (2015) Impact Of climate change on river flows in the southwest region Of Bangladesh. In: 5th international conference on water & flood management (ICWFM-2015), pp 581–590
Coulthard TJ, Lewin J, Macklin MG (2005) Modelling differential catchment response to environmental change. Geomorphology 69:222–241
Croitoru AE, Minea I (2015) The impact of climate changes on rivers discharge in Eastern Romania. Theor Appl Climatol 120:563–573
D¨oll P, Zhang J (2010) Impact of climate change on freshwater ecosystems: a global-scale analysis of ecologically relevant river flow alterations. Hydrol Earth Syst Sci 14:783–799
Gilbert RO (1987) Statistical methods for environmental pollution monitoring. Wiley, New York
Habibullah M (1987) Computer modeling of river chanel changes in alluvial condition, first interim report R 02/87. IFCDR, BUET, Dhaka
Helsel DR, Hirsch RM (1992) Statistical methods in water resources. Elsevier, Amsterdam
Hirabayashi Y, Kanae S, Emori S, Oki T, Kimoto M (2008) Global rojections of changing risks of floods and droughts in a changing climate. Hydrol Sci J 53:754–773
Howladar MF, Rahman MM (2016) Characterization of underground tunnel water hydrochemical system and uses through multivariate statistical methods: a case study from Maddhapara Granite Mine, Dinajpur, Bangladesh. Environ Earth Sci. 75:1501. https://doi.org/10.1007/s12665-016-6309-7
Howladar MF, Deb PK, Muzemder ATMSH, Ahmed M (2014) Evaluation of water resources around barapukuria coal mine industrial area, Dinajpur, Bangladesh. Appl Water Sci 4:203–222. https://doi.org/10.1007/s13201-014-0207-5
Howladar MF, Numanbakth MAA, Faruque MO (2017) An application of water quality index (WQI) and multivariate statistics to evaluate the water quality around Maddhapara granite mining industrial area, Dinajpur, Bangladesh. Environ Syst Res 6:13. https://doi.org/10.1186/s40068-017-0090-9
Howladar MF, Hossen M, Sohail LN, Jahan MA (2019) Hydrogeochemistry and sulphate contamination of water environment around the coal stock pile in Tamabil, Sylhet. Environ Dev Sustain. https://doi.org/10.1007/s10668-019-00358-9
Intergovernmental Panel on Climate Change (IPCC) (2007) Climate change 2007: synthesis report. The physical science basis. In: 4th Assessment Report, Cambridge, New York
Islam S (2016) Hydrological characteristics analysis of Surma River in northeastern Bangladesh: a quantitative approach. DIU J Sci Technol. 11(2):39–47
Jiménez CBE, Oki T, Arnell NW, Benito G, Cogley JG, Döll P, Jiang T, Mwakalila SS (2014) Freshwater resources, climate change 2014: impacts, adaptation, and vulnerability. In: Barros VR, Dokken DJ, Mach KJ, Mastrandrea MD, Bilir TE, Chatterjee M, Ebi KL, Estrada YO, Genova RC, Girma B, Kissel ES, Levy AN, MacCracken S, Mastrandrea PR, White LL (eds) Part A: global and sectoral aspects, contribution of working group II to the fifth assessment report of the intergovernmental panel on climate change. Cambridge University Press, Cambridge, pp 229–269
Kahyaa E, Kalayci S (2004) Trend analysis of streamflow in Turkey. J Hydrol 289:128–144
Kendall MG (1975) Rank correlation methods, 4th edn. Charles Griffin, London
Khublaryan MG (2009) Surface waters: rivers, streams, lakes, and wetlands. In: Khublaryan MG (ed) Types and properties of water. EOLSS Publications, Oxford
Kundzewicz ZW, Mata LJ, Arnell NW, D¨oll P, D¨Kabat P, Jim´enez B, Miller KA, Oki T, Sen Z, Shiklomanov IA (2007) Freshwater resources and their management climate change 2007: impacts, adaptation and vulnerability. In: Parry ML, Canziani OF, Palutikof JP, van der Linden PJ, Hanson CE (eds) Contribution of working group II to the fourth assessment report of the intergovernmental panel on climate change. Cambridge University Press, Cambridge, pp 173–210
Lahmer W, Pfützner B, Becker A (2001) Assessment of land use and climate change impacts on the mesoscale. Phys Chem Earth 26:565–575
Lettenmaier DP, Wood EF, Wallis JR (1994) Hydroclimatological trends in the continental United States 1948–1988. J Clim 7:586–607
Mann HB (1945) Non-parametric tests against trend. Econometrica 13:163–171
McCarthy JJ, Canziani OF, Leary NA, Dokken DJ, White KS (2001) Climate change 2001: impacts, adaptation and vulnerability, inter-governmental panel on climate change (IPCC), work group II input to the third assessment report. Cambridge University Press, Cambridge
McMahon TA (1982) Hydrological characteristics of selected rivers of the world. Technical document in hydrology. UNESCO, Paris
Mitchell JM, Dzerdzeevskii B, Flohn H, Hofmeyr WL, Lamb HH, Rao KN, Walléen CC (1966) Climatic change (Report of a working group of the Commission for Climatology). WMO No. 195. pp 79
Numanbakth MAA, Howladar MF, Faruque MO, Rahman MM (2019) Understanding the hydrogeochemical characteristics of natural water for irrigation use around the hard rock mine in Maddhapara, northwest Bangladesh. Groundw Sustain Dev 8:590–605. https://doi.org/10.1016/j.gsd.2019.02.007
Organization for Economic Co-operation and Development (2003) Development and Climate Change in Bangladesh: Focus on Coastal Flooding and the Sundarbans. In: Agrawala S, Ota T, Ahmed AU et al (ed.) Organization for Economic Co-operation and Development (OECD) Report COM/ENV/EPOC/DCD/DAC(2003)3/FINAL, Paris, France. DIALOG. http://www.oecd.org/dataoecd/46/55/21055658.pdf of subordinate document. Accessed 23 Dec 2008
Parajuli A, Devkota L, Adhikari P, Dhaka S, Kayastha R (2015) Impact of Climate change on river discharge and rainfall pattern: a case study from Marshyangdi River basin, Nepal. J Hydrol Meteorol 9(1):60–73
Raghunath HM (2006) Hydrology: principles, analysis, and design. New Age Int, New Delhi
Rashid HE (1991) Geography of Bangladesh. The University Press Limited, Dhaka
Sen PK (1968) Estimates of the regression coefficient based on Kendall’s tau. J Am Stat Assoc 63(324):1379–1389
Singh S (1998) Geomorphology. Prayag Pustak Bhawan, Allahabad
Spencer JE, Thomas WL (1987) Introducing cultural geography. Wiley, New York
Upton G, Cook I (2006) Oxford dictionary of Statistics, 2nd edn. Oxford University Press, Oxford
Zhang Q, Liu C, Xu C, Xu Y, Jiang T (2006) Observed trends of annual maximum water level and streamflow during past 130 years in the Yangtzee River basin, China. J Hydrol 324:255–265
The authors are very much grateful to Bangladesh Meteorology Department and Bangladesh Water Development Board for providing necessary data. The authors wish to thank the anonymous reviewers for their valuable comments and suggestions to improve the quality of this paper.
Ethics approval and consent to participate
Consent for publication
The authors declare that they have no competing interests.
