A hybrid MCDA-LCA approach for assessing carbon foot-prints and environmental impacts of China’s paper producing industry and printing services

Abstract

Background

Labeling of carbon foot-prints (CFPs) for products and services is regarded as a convenient and effective method for reducing greenhouse gas (GHG) emissions. Life cycle analysis (LCA) is a useful tool for examine CFP of relevant products and services. However, the corresponding standards for CFP of products and services can hardly be satisfactorily adopted. Also, most of the previous studies were based on an individual indicator, which can hardly reflect multiple dimensions of sustainable implications of products and services.

Results

Thus, in this research, a hybrid life cycle analysis (LCA) and multi-criteria decision analysis (MCDA) method was proposed for helping evaluate CFP of products and services under multiple environmental indicators. The results indicated: (a) Air pollution caused by coal consumption was the primary environmental impact in China’s paper-production industry, and (b) in printing industry, air pollution caused by VOC was the primary environmental impact in China. At the same time, CFP of 1,000 kg copying paper was 1,415.39 kg CO2e based on LCI data of a paper factory in China. CFP of printing services was varied from each printing activity.

Conclusions

When purchasing copying paper, consumers should pay attention on coal consumption of the product. In printing industry, VOC of printing services should be taken serious consideration in China.

Background

In the past decades, global market is becoming sensitive and responsive to environment-friendly technologies and services (Pineda-Henson et al. 2002). Accompanying with global endeavor to meet international commitments to reduce greenhouse gas (GHG) emissions, many consumers are eager to adopt an environmentally responsible living style to make a contribution to GHG emission reductions. Generally, it is not convenient for consumers to identify and single out products and services with reduced environmental impacts and GHG emissions. Therefore, propose of effective tools for helping consumers evaluate environmental impacts and carbon credits of relevant products and services are desired.

Previously, many efforts were undertaken for estimating carbon foot-prints (CFPs) of products by the methods of LCA. For example, Zhao et al. (2011) established a CFPs analysis model based on energy consumption, and estimated the amount of carbon emissions due to the consumptions of fossil energy in many regions of China. Yuttitham et al. (2011) estimated CFPs for sugar production from sugarcane in eastern Thailand. Namy Espinoza-Orias et al. (2011) estimated CFPs of breads that were produced and consumed in UK. Also, a number of papers presented the quantification of the uncertainties in estimating CFPs of a food product (Röös et al. 2010), plastic trays (Dormer et al. 2013) and shopping bags (Muthu et al. 2011). Among them, according to the Publicly Available Specification 2050 (i.e., PAS 2050) advanced by British Standards Institution (BSI 2008) in 2008, it was recommended that the method of life cycle analysis (LCA) be effective in evaluating CFPs of products and services. However, in the previous studies, CFP was merely adopted as an individual indicator which can hardly reflect multiple dimensions of sustainable implications of products and services (Schmoldt 2001; Schmidt 2009). There is a growing need for adopting effective tools that can be used to evaluate CFP of products and services considering multiple environmental indicators such as water pollution, air pollution, energy and resource consumption. To remedy this shortage, the Society for Environmental Toxicology and Chemistry (SETAC) favored the adoption of many Multi-Criteria Decision Making (MCDM) models (Pineda-Henson et al. 2002). It was recognized as an important tool in facilitating environmental decision making for formalizing and addressing the problem of competing decision objectives (Yatsalo et al. 2007; Regan et al. 2007; Linkov et al. 2006; Lahdelma et al. 2000). Among many MCDM methods, Analytic Hierarchy Process (AHP) was widely used by many researchers (Kaya and Kahraman 2011). However, there was a lack of studies that could hybrid AHP with LCA to help evaluate CFPs of products and services.

Therefore, in this paper, a hybrid LCA and AHP approach will be advanced for evaluating overall environmental impacts and CFPs of paper production and printing services in China. Firstly, AHP will be adopted to help rank environmental impacts of this industry and the relevant services, which will give an overall assessment on environmental impacts. The method of LCA will be used to estimate the detailed CFPs.

Overview of copying-paper production in China

Pulp and paper making, a wastewater discharge intensive sector, has long been among the major water polluters in China. In 2009, for example, this sector discharged 18.8%, 28.9%, and 11.2% of national industrial wastewater, COD, and NH3-N emission loadings, respectively (NBS and MEP 2010). These values are partially attributable to the fact that paper consumption has been soaring with China's rapid economic growth over the last decade. Gross consumption of paper and paper board, for example, increased from 35.75 million tons in 2000 to 110.11 million tons in 2011, with an average annual growth rate of 6.1% (Zhang et al. 2012; NBS 2012). More recently, a greater number of studies highlighted energy consumption and greenhouse gas (GHG) emissions from the pulp and paper sector at global or national levels because of increasing concern on climate change (Zhang et al. 2012; Szabóa et al. 2009; Möllersten et al. 2003; Kallio et al. 2004; Davidsdottir and Ruth 2004).

Results and discussion

CFP of copying paper and printing services

  1. 1)

    Activity emission factor

    According to relevant research result from IPCC (IPCC 2006), Ecoinvent databases and Chen S (Sha et al. 2012), the activity emission factors were listed in Table 1.

  2. 2)

    CFP of copying paper in China

    Using the model described in Section 2.2, the cradle-to-grave CFP of 1000 kg of copying paper was found to be 1415.39 kg CO2e. The contribution of the various life cycle inventories were showed in Table 2.

  3. 3)

    CFP of Printing services in China

Using the model described in Section 2.2, the cradle-to-grave CFP of printing services for one book was found to be 5.249 kg CO2e. The contribution of the various life cycle inventories were showed in Table 3, and CFP of services for printing a book was showed in Table 4.

Table 1 Activity emission factor
Table 2 Life cycle inventories of producing 1000 kg copying paper in a paper-making factory of China
Table 3 Life cycle inventory of electricity printing services in a printing factory of China
Table 4 CFP of printing services taking a book as an example

AHP of paper and printing industries

The hierarchy tree was presented in Figures 1 and 2. The goal, which was ranking environmental impacts of paper and printing industries, was given at the first level (level 1). There were four main criteria presented in level 2 of the hierarchy, which were water pollution, air pollution, energy consumption and resource consumption of paper-making industry and water pollution, air pollution, energy consumption and hazardous waste of printing industry. Level 2 of the hierarchy were further divided into several sub-criteria, which were showed in level 3. The results of comparison of level 2 in paper-making industry are shown in Table 5. Also, the results of level 3 in paper-making industry are shown in Tables 6 to 9. Moreover, the results of comparison of level 2 in printing industry are shown in Table 10. Correspondingly, the results of level 3 in printing industry are shown in Tables 11 to 14.

Figure 1
figure 1

Hierarchy tree for environmental impact assessment of printing industry.

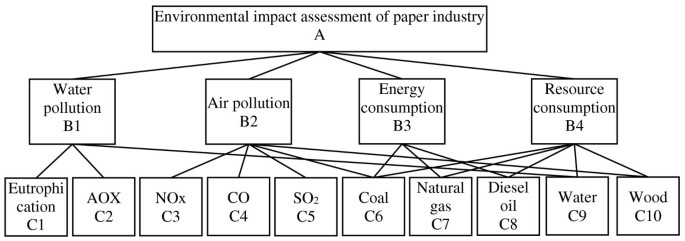

Figure 2
figure 2

Hierarchy tree for environmental impact assessment of paper-making industry.

Table 5 Pair-wise evaluation of level 2 of paper-making industry
Table 6 Pair-wise evaluation of level 3 of paper-making industry (1)
Table 7 Pair-wise evaluation of level 3 of paper-making industry (2)
Table 8 Pair-wise evaluation of level 3 of paper-making industry (3)
Table 9 Pair-wise evaluation of level 3 of paper-making industry (4)
Table 10 Pair-wise evaluation of level 2 of printing industry
Table 11 Pair-wise evaluation of level 3 of printing industry (1)
Table 12 Pair-wise evaluation of level 3 of printing industry (2)
Table 13 Pair-wise evaluation of level 3 of printing industry (3)
Table 14 Pair-wise evaluation of level 3 of printing industry (4)

After pair-wise comparisons between elements at each level, the weights of environmental factors can be calculated (see Tables 15 and 16). Results of AHP of paper-making and printing industries in China were: (a) Air pollution caused by coal consumption was the primary environmental impact in China’s paper-production industry, and (b) in printing industry, air pollution caused by VOC was the primary environmental impact in China.

Table 15 Weighs of environmental factors of paper-making industry
Table 16 Weighs of environmental factors of printing services

Conclusions

This study demonstrated that the integrated LCA and MCDA approach provided a structured and comprehensive methodology for impact analysis and environmental decision making. In the background of growing concerns over global warming, carbon emission became an important factor. Carbon footprint, however, should not be merely one element in decision-making. The developed method could thus improve previous studies in comprehensive assessment on carbon footprints of products and service on multiple issues. The developed method was then applied to copying paper and printing services of China. The application indicated that the hybrid MCDA-LCA method can provide a structured and comprehensive methodology for accounting CFP as well as assessing environmental impacts of products and services. The results indicated that the most emergent environmental impacts caused by paper production and printing services were resource consumption and hazardous waste. At the same time, due to a lack of life-cycle inventory data of planting trees, carbon storage was not included in system boundary of copying paper. The next study would be furthered in detailed carbon emission of paper-making industry. Moreover, when purchasing copying paper, consumers should pay attention on coal consumption of the product. In printing industry, VOC of printing services should be taken serious consideration in China.

Methods

This study was performed by a methodological framework based on hybrid LCA and AHP.

Life cycle assessment

Life-cycle assessment (LCA) is a method that builds on factual information and models of natural processes (Hertwich and Hammitt 2001). LCA is an increasingly important tool for environmental policy, and even for industry (Ayres 1995). The Society of Environmental Toxicology and Chemistry and the International Organization for Standardization developed the LCA methodology in the 1990s. The methodology is included under the international standards ISO 14040 series (Nanaki and Koroneos 2012), which are list in the following.

  1. (1)

    ISO 14040:2006 Environmental management – Life cycle assessment – Principles and framework;

  2. (2)

    ISO 14044:2006 Environmental management – Life cycle assessment – Requirements and guidelines;

  3. (3)

    ISO/TR 14047:2003 Environmental management – Life cycle impact assessment – Examples of application of ISO 14042;

  4. (4)

    ISO/TS 14048:2002 Environmental management – Life cycle assessment – Data documentation format

There have also been developments on the standardization on the application of LCA-based methods for design purposes (Regan et al. 2007; ISO 2006). The Society of Environmental Toxicology and Chemistry’s (SETAC) "Code of practice" originally distinguished four methodological components within LCA: goal and scope definition, life cycle inventory analysis, life cycle impact assessment, and life cycle improvement assessment. In ISO14040 (ISO 1997) life cycle improvement assessment is no longer regarded as a phase on its own, but rather as having an influence throughout the whole LCA methodology. In addition, life cycle interpretation has been introduced. This is a phase that interacts with all other phases in the LCA procedure, as illustrated in Figure 2.

Along with the increasing concerns over global warming, greenhouse gas (GHG) emissions arising from products (goods and services) are assessed by the help of life cycle assessment (LCA). Publicly Available Specification 2050:2008, Specification for the assessment of the life cycle greenhouse gas emissions of goods and services (BSI 2008) is regarded as a mechanism for simplifying and standardizing the methods for assessing the carbon footprint of products and services (Sinden 2009).

According to ISO 14044 (ISO 2006) and PAS2050, LCA phases of copying paper and printing service are divided into four phases: goal and scope definition, inventory analysis, impact assessment and interpretation (see Figure 3).

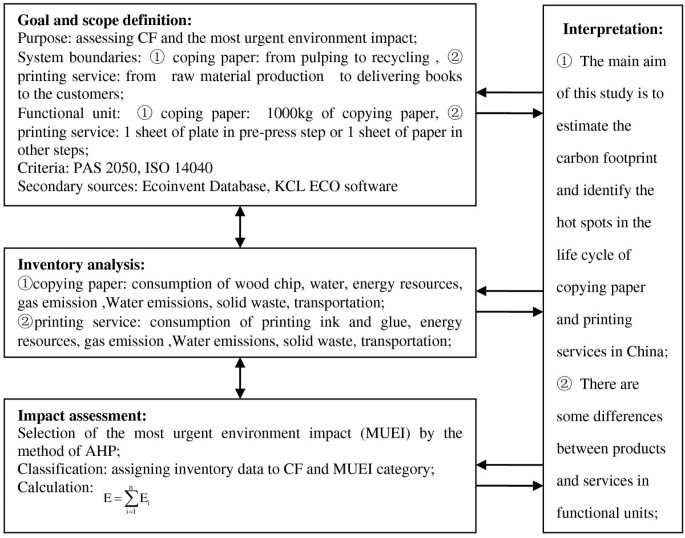

Figure 3
figure 3

LCA phases of copying paper and printing services.

Goal and scope of the study

The main aim of this study is to estimate the carbon footprint and identify the hot spots in the life cycle of copying paper and printing services in China. Products of copying paper and printing services of study are presented. The functional unit of copying paper is 1000 kg. There are some differences between products and services in functional units. The functional units of services are not single and fixed. In another word, the functional units of services are changed along with the phases of services. In this paper, there are two functional units in printing services (see Table 17).

Table 17 Functional units of printing services

System boundaries and system definition

The system boundaries of copying paper, showed in Figure 4, include the following parts:

  1. (1)

    Production of pulp

  2. (2)

    Transport pulp to paper mills

  3. (3)

    Paper-making process, including repulping, furnishing, forming and pressing, (1) (4) cutting and packing

  4. (4)

    Waste water treatment

  5. (5)

    Energy production

  6. (6)

    Chemicals production

  7. (7)

    Transport of copying paper to sellers

Figure 4
figure 4

System boundary of copying paper.

As shown in Figure 5, the following stages are included within the system boundary:

  1. (1)

    Raw materials: producing printing ink and glue

  2. (2)

    Processing: pre-press, printing and post-press stages in printing process

  3. (3)

    Distribution stage: packing, storage, proofing and transporting to sellers

  4. (4)

    Recycling and treating of hazardous waste

Figure 5
figure 5

System boundary of printing services.

CFP calculation

The CFP of an activity is calculated by multiplying the activity data and the emission factor together (BSI 2008). The total CFP is calculated by then summing the individual CFPs for all activities within the specified life cycle as outlined in Eq. (1):

Carbon footprint = Activity data × Activity emission factor
(1)

Analytic hierarchy process

The Analytic Hierarchy Process (AHP) is a general theory for measurement (Saaty 1987). The method of AHP is designed for multiple-criteria decisions (Schmoldt 2001). Three important components of AHP are: (1) the structuring of a problem into a hierarchy, which consisting of a goal and subordinate features (decomposition), (2) pair-wise comparisons between elements at each level (evaluation) and (3) propagation of level-specific, local priorities to global priorities (synthesis) (Schmoldt 2001). In methods of AHP, the elements in each level are compared pair wise with respect to their importance in making the decision that is under consideration (Dey 2002). The scale of integers in the range 1–9 is used for comparison (Schmoldt 2001; Saaty 1990). From the set of pair wise comparisons of the elements, a judgment matrix is generated with n rows and n columns, where n is the number of elements being considered (Pineda-Henson et al. 2002). In the matrix αij indicates how much more important row heading is than column heading j (Schmoldt 2001):

W i = i = 1 n α ij n i = 1 , 2 , , n
(2)
W i = W i i = 1 n W i
(3)

The measure of consistency of an AHP judgment matrix is determined by considering the judgment matrix with n rows and n columns where α ij = 1 α ji , all αij ≥ 0, and pi as the corresponding AHP priorities Ruby PH et al. (Pineda-Henson et al. 2002)provides an approximate way of calculating the maximum eigenvalue λmax:

λ max = W 1 i = 1 n α i 1 + W 2 i = 1 n α i 2 + + W n i = 1 n α in
(4)

The judgment matrix has an eigenvalue equal to n if the comparisons are perfectly consistent. The largest eigenvalue, λmax, is greater than n if the comparisons are not perfectly consistent. The difference between λmax and n is expressed by Saaty (2001) as the consistency index (CI), which is computed as:

CI = λ max n / n 1
(5)

The CI is compared to the corresponding random consistency indices (RI) developed by Saaty (2001). The consistency ratio (CR) is computed from:

CR = CI / RI
(6)

Saaty (Saaty 1990) recommends that the ratings from the experts may be accepted if the consistency ratio of the pair-wise comparison matrix is less than or equal to 0.10 (i.e., 90% consistent or 10% inconsistent). Otherwise, it is recommended that the pair-wise comparisons be revised to improve the consistency of these comparisons.
