Risk assessment of heavy metal soil pollution through principal components analysis and false color composition in Hamadan Province, Iran

Environmental Systems Research20143:3

https://doi.org/10.1186/2193-2697-3-3

Received: 14 October 2013

Accepted: 26 December 2013

Published: 15 January 2014

Abstract

Background

In the process of decision making to combat heavy metals pollution, it is essential to have accurate quantitative information about heavy metals and their pollution hot-spots. The main purpose of this study was to determine spatial distribution of several elements (As, Sb, Cr, Cd, Ni, Co, Cu, Zn, Pb, Fe and V) on surface soils of Hamadan Province (Iran). It also sought to create a holistic view to determine the position, level, and anomaly of classified elements through principal components analysis (PCA), false color composition (FCC), inverse overlay method, and weighted linear combination. Finally, it tried to identify possible sources of pollution in the hotspots. Interpolation of heavy metal concentrations was performed using geostatistical methods and correlation analysis for locations. The most appropriate interpolation method was selected based on mean absolute error (MAE) and mean bias error (MBE) indices.

Results

According to Pearson’s correlation analysis, the elements were categorized in four groups (Fe, V, and Co; Cu, Ni, and Cr; Pb, Zn, and As; Sb and Cd). For Fe, Zn, As, and Pb, the best method was disjunctive kriging. For Co, Sb, Ni, and Cr, ordinary kriging was the most appropriate. Radial basic functions was also the best method for Cd and Cu.

Conclusions

Overlaying of zoning maps of the elements and land use and geological layer maps showed that the distribution pattern of the studied elements did not fully conform to the existing land use pattern. Although the most influential factor on the concentration of elements in the studied soils was bedrocks, extensive use of chemical fertilizers should not be ignored. Moreover, urban pollution can also contribute to Pb contamination of soil.

Keywords

Kriging Correlation analysis Principal components analysis False color composition Inverse overlay method Weighted linear combination

Background

Soil is a major natural resource whose properties and quality can be adversely affected by the over-concentration of agricultural and industrial activities. On the other hand, preserving soil quality and preventing its deterioration are fundamental to sustainable development. In recent decades, problems associated with increasing levels of heavy metals and their persistence in the environment have attracted the attention of researchers (Bowen 1979; Lindsay 1979; Lame and Leenaers 1997). Although low concentrations of these metals are naturally found in soils and stones, human activities have elevated their release and propagation in the environment.

Determining the areas that are polluted either naturally or as a result of human activities is a means of evaluating the health of an ecosystem (Romic et al. 2007). Mining, industries, road transfer, waste burning, and agricultural use of fertilizers and chemicals are human activities that can lead to heavy metal contamination of the soil. On the other hand, natural factors contributing to heavy metal contamination of the soil include volcanoes, degassing of the Earth’s crust, fires in forests, and chemical composition of parent materials (Lado et al. 2008).

A variety of sciences such as classical statistics, geostatistics, remote sensing, geographical information systems (GIS), soil science, and hydrology are employed to precisely assess the heavy metal content of soils. In fact, soil pollution can currently be well determined using GIS and geostatistical methods. While classical statistical methods have been widely applied in previous studies on soil contamination, such methods are expensive and time-consuming and do not calculate estimation errors. Besides, preparing sufficient samples from the areas under-study is impossible. Hence, geostatistical methods have replaced classical statistics as they can accurately identify time and spatial changes of pollutants and calculate estimation error (Blom 1985; Bonham-carter et al. 1987).

The present research aimed to determine areas with heavy metal (Cu, Co, Ni, Cd, Cr, Sb, V, Fe, Pb, As, and Zn) contamination, to locate pollution hot-spots, and to recognize possible sources of contamination in surface soils of Hamadan Province (Iran) through principal component analysis (PCA) and false color composites (FCC).

Methods

Study area

Hamadan Province occupies an area of 19493 km2 (from 33 degrees, 59 minutes to 35 degrees, 48 minutes north latitude and from 47 degrees, 34 minutes to 49 degrees, 36 minutes east longitude) (Figure 1). The agricultural and livestock development of this province (49.3% of its lands are used for agricultural purposes) has turned Hamadan into an economic hub (Figure 2). The dominant geological structures of the area include alluvial terraces from the Quaternary period, orbitoline limestone, shale and marl from the late Cretaceous period, metamorphic sandstone from the Jurassic period, and andesitic lava and reef limestone from late Paleogene and early Neogene periods (geological map 1:1000000; Geological Survey of Iran). The area contains shallow to moderately-deep soils with small to medium-sized gravels and some amounts of calcareous material (2007).
Figure 1

Location map of Hamadan Province (Iran) and the sampling points.

Figure 2

Regional geological map of the study area.

Sampling

In order to perform systematic random sampling, the area was first divided to 5*5 km2 networks. Afterward, based on the characteristics of the area and various types of land use and activities, networks of 2.5 × 2.5 and 10 × 10 km2 were developed in areas with intensive and low-intensity land use, respectively. The points where the networks met were selected as sampling points. Finally, 286 soil samples were collected from the area, i.e. after determining sampling points, a 20 × 20 cm2 macro-plate was drawn at each point. Then, three 3 × 3 cm2 micro-plates were drawn inside it in the shape of a downward V. Five soil samples were taken from the four corners and the center of each micro-plate. The samples were all obtained at depths of 0–20 cm. The collected soils were eventually mixed and a final 2–3 kg sample was prepared.

Information about land use at the sampling point, type of agriculture (irrigated/rainfed), appearance of the land, kind of product, geographical characteristics, and the nearest village was recorded in a sampling form. Samples were taken from pristine areas as well as mountainous areas, deserts, salt marshes, lands under irrigated or rainfed agriculture, vineyards, gardens, and areas near villages (Figure 3).
Figure 3

Sampling method.

Chemical analysis of soil

The prepared samples were sent to the laboratory and their Pb, Zn, As, Cr, Co, Ni, V, Fe, and Cu concentrations were measured via inductively coupled plasma-atomic emission spectrometry (ICP-AES). Cd content of the samples was assessed using a graphite furnace and atomic absorption spectroscopy in the chemical laboratory of the Iranian Center for Advanced Mineral Processing Research.

Descriptive statistics

Kolmogorov-Smirnov test was applied to investigate the normal distribution of data at a confidence level of 95%. Moreover, the data was normalized with logarithmic transformation. In order to evaluate the effects of land use on the concentrations of heavy metals in soil, the map was first divided into three main categories of agricultural, urban-industrial, and non-agricultural use. Pearson’s correlation coefficients were then calculate to identify the correlations between heavy metal concentrations and different land uses. A box plot and PCA were used to determine the outliers and classify the relations between the measured variables, respectively.

Land use mapping

Considering the importance of land use map in analyzing heavy metal pollution, the map was prepared using Indian Remote Sensing (IRS-P6) Advanced Wide Field Sensor (AWiFS) images.

Data mapping

The current research employed kriging for data mapping.

False color composition (FCC)

Geographical information studies may utilize FCC to determine hot-spots of heavy metal pollution. This method can simultaneously compress data and interpret layers of information. Creating color composite images involved spatial correlation analysis of the heavy metals. After standardizing the zoning map of all elements’ concentrations (0–255), the three elements in each group were colored as red, green, and blue. The FCC map was then developed accordingly.

Principal component analysis (PCA)

PCA is a statistical method to classify the relations between the measured variables, i.e. it linearly compresses a set of main data to an essentially smaller set of new, uncorrelated variables which represent nearly all information in the main data set. Meanwhile, understanding and working with a small set of uncorrelated variables is much easier than working with a large set of correlated variables (Eastman 2006). In the present study, PCA was carried out in SPSS for Windows 15.0 (SPSS Inc., Chicago, IL, USA). In addition, spatial correlation analysis was applied for each variable to select the most appropriate method of interpolation. Finally, the zoning map of the factors obtained from PCA was produced in ArcGIS 9.3 (Esri, CA, USA).

Inverse overlaying of elements

Since the images from the previous stage could not provide information about more than three elements in recognition of pollution hot-spots, the anomalies of elements (distribution of a combination of elements in each area) were determined using the zoning map of elements obtained from FCC, map overlay, and identification of heavy metal hot-spots. Overlaying of inverse layers facilitates analysis by creating an overall view on multiple elements (Suyash Kumar et al. 2007). It is, in fact, a different representation of elements for clearer observation of pollution hot-spots. In order to apply this method, the maps from FCC were first stretched between zero and 255. Afterward, pairs of layers (one as the top and one as the bottom map) were selected according to the correlations between their elements. In top and bottom layers, red to blue and blue to red (reverse) represented maximum to minimum amounts, respectively. Top layers were then demonstrated at a contrast of 100 and transparency of 60. Finally, similar to FCC, the anomaly of elements was interpreted based on the composition of the obtained colors.

Results

Filtration and normalization of primary data

Table 1 summarizes the density of heavy metals (mean As: 15.7993, Cd: 0.1535, Fe: 3.9472, Co: 18.9598, Cr: 96.8182, Cu: 36.4545, Ni: 69.0350, Pb: 31.8916: Sb: 2.9084, V: 109.4161, Zn: 80.0035). The box plot in Figure 4 was used to correct the outlier data about the concentration of heavy metals. The numbers of outlier and corrected data are given in Table 2. The results of Kolmogorov-Smirnov test showed the data for As, Sb, Cr, Co, and Pb not to be normal (Table 3). However, normal distribution of variables is essential in geostatistical studies. Moreover, too much stretching and crumpling can damage the structure of variogram and the results of kriging. Therefore, after ensuring the absence of negative data, logarithmic transformation was applied to normalize the concentrations of the mentioned elements (Figure 5). Pearson’s correlation analysis was then performed again on the normalized data (Table 4).
Table 1

Trace element data for the soil from Hamadan Province, Iran

Metal

N

Missing

Minimum

Maximum

Mean

Std. deviation

Europe mean

As

286

9

4.70

85.00

15.7993

8.94631

11.6

Cd

286

10

.10

0.88

0.1535

0.08408

0.284

Fe

286

9

1.80

6.00

3.9472

0.67775

2.17

Co

286

9

8.10

34.00

18.9598

3.89043

8.91

Cr

286

9

30.00

180.00

96.8182

26.37480

94.8

Cu

286

9

4.00

75.00

36.4545

10.09202

17.3

Ni

286

9

26.00

140.00

69.0350

20.43214

37.3

Pb

286

9

13.00

1800.00

31.8916

105.13443

32.6

Sb

286

9

0.50

28.00

2.9084

2.69343

1.04

V

286

9

50.00

190.00

109.4161

22.38291

68.1

Zn

286

9

35.00

200.00

80.0035

18.74679

60.9

Valid N (list wise)

286


Figure 4

Box plot for outlier determination.

Table 2

The number of modified and element outlier data for studied heavy metals

Element

Cr

Ni

V

Zn

Cd

As

Co

Cu

Sb

F

Fe

Pb

The number of outliers

5

3

10

5

6

12

6

3

16

9

5

11

The number of modified data

2

1

2

3

3

4

2

3

5

1

2

6

Table 3

One-sample Kolmogorov-Smirnov test results about the concentration (in mg/kg) of the studied heavy metals in Hamadan Province, Iran



As

Cd

Fe

Co

Cr

Cu

Ni

Pb

Sb

V

Zn

N

286

286

286

286

286

286

286

286

286

286

286

Normal parameters (a,b)

Mean

15.49

.1457

3.9479

18.9458

96.6783

36.1612

69.0000

25.8392

2.702

109.241

79.5839



Std. Deviation

7.34

.0720

.67360

3.84308

25.9820

9.75556

20.3185

7.22292

1.30851

21.8781

16.9531

Most extreme differences

Absolute

.15

.242

.070

.098

.096

.037

.078

.176

.180

.116

.052



Positive

.15

.242

.049

.098

.096

.037

.078

.176

.180

.116

.052



Negative

-.10

-.220

-.070

-.064

-.050

-.029

-.038

-.116

-.106

-.087

-.039

Kolmogorov- Smirnov Z

2.561

4.088

1.176

1.661

1.623

.624

1.324

2.978

3.052

1.954

.875

Asymp. Sig. (2-tailed)

.000

.054

.126

.008

.010

.831

.060

.000

.000

.064

.428

Figure 5

Normalized data histogram using logarithm method (As, Pb, Cr, Sb and Co).

Table 4

Pearson’s correlation coefficients between the heavy metals



LnCo

LnSb

LnPb

LnCr

LnAs

Zn

V

Ni

Cu

Cd

Fe

LnCo

1



LnSb

.616(**)

1



LnPb

.108

.093

1



LnCr

.159(**)

.085

.396(**)

1



LnAs

.018

-.069

.098

.043

1



Zn

.704(**)

.491(**)

.093

.168(**)

.031

1



V

.860(**)

.553(**)

.160(**)

.224(**)

.023

.709(**)

1



Ni

.020

-.014

.146(*)

.472(**)

.058

-.003

.072

1



Cu

.082

-.042

.171(**)

.294(**)

.196(**)

.100

.109

.521(**)

1



Cd

.005

.008

.072

.196(**)

-.098

.055

.064

.263(**)

.218(**)

1



Fe

.899(**)

.608(**)

.116(*)

.129(*)

.006

.729(**)

.851(**)

.007

.062

.014

1

*Correlation is significant at the 0.05 level (two-tailed).

**Correlation is significant at the 0.01 level (two-tailed).

Analysis of variance on the mean concentrations of heavy metals in soil did not prove any significant difference between the three different kinds of land use (agricultural, urban-industrial, and non-agricultural uses).

PCA

The appropriateness of data for PCA is assessed based on Kaiser-Mayer-Olkin (KMO) index, i.e. the test is recommended only if KMO > 0.70. Since KMO index was calculated as 0.84 in the current research, PCA was applied on the primary data and 11 factors were found necessary for explaining 100% of variance. However, as a mere four out of the 11 factors could explain 71.36% of variance, the low importance of the other seven factors was deduced.

Factor loading was used to determine the relationships between the variables and each factor (Table 5). The first factor explained 39.25% of variance and its factor load was roughly the same for Fe, Zn, Co, Cr, Ni, and V. High correlation between these elements can indicate their common origin. The second factor explained 13.12% of the total variance of element distribution and suggested similarity between Cd and Cu (factor load: 0.85 for Cu and 0.65 for Cd). The third factor could only explain 9.55% of variance. According to the table of eigenvalues, Pb had a factor load of about 0.75 and was the only element in this factor. The fourth factor explained no more than 9.44% of variance and included As and Sb with factor loads of 0.49 and 0.89, respectively. The remaining factors did not have a significant role in increasing the total variance.
Table 5

Load factors of the studied variables in Hamadan Province, Iran

Heavy metal

Component

1

2

3

4

As



0.897

Cd



0.848



Fe

0.901



Co

0.943



Cr

0.898



Cu



0.647



Ni

0.833



Pb



0.749



Sb

0.496



0.491

V

0.882



Zn

0.705



Spatial distribution of components in PCA

In order to prepare the zoning maps of factors obtained from the PCA, spatial correlation analysis was conducted for each factor in SPSS (SPSS Inc., Chicago, IL, USA) and the most suitable method of interpolation was selected. Table 6 shows fitted models and the most appropriate methods of interpolation. Geostatistical analyses (Table 7) revealed the exponential model to be the best fitted model for the factors (Figure 6).
Figure 6

The first factor zoning maps (Zn, V, Ni, Cr, Co, Sb and Fe); The second factor (Cu and Cd) zoning maps; The third factor (Pb) zoning map; and the fourth factor (As and Sb).

Table 6

Models fitted for factors obtained from principal component analysis and selecting the best interpolation method

Factors

Interpolation method

Model

Nugget

Partial sill

Sill

Mean range

Mean

Root mean square

Factor 1

Ordinary kriging

Exponential

0

1.009

1.009

21035.1

0.027

0.853

Factor 2

Radial basis functions

-

-

-

-

-

0.015

1.003

Factor 3

Radial basis functions

-

-

-

-

-

0.001

0.874

Factor 4

Radial basis functions

-

-

-

-

-

0.002

0.785

Table 7

Results of spatial correlation analysis and the fitted models

Element

No. sample

Interpolation method

Model

Nugget (C0) (mg/kg)

Partial sill (C) (mg/kg)

Sill (C0+C) (mg/kg)

Major range

(km)

Mean

RMS

Root- mean standardized

Trend

MAE (mg/kg)

MBE (mg/kg)

Anisotropy



Isotropy

As

286

Disjunctive kriging

Exponential

0.4

0.8

1.2

106

0.076

7.085

1.16

no

5.13

0.076



344.5

Zn

286

Disjunctive kriging

Exponential

0.36

0.54

0.9

29.39

−0.059

14.6

1.046

no

11.48

0.059

*



Cu

286

Radial basis function

-

-

-

-

-

.068

9.3

-

-

7.42

0.045

-

-

V

286

Disjunctive kriging

Exponential

0.31

0.6

0.91

16.919

−0.92

19.22

1.003

no

14.85

.094

*



Ni

286

Ordinary kriging

Spherical

177.29

437.7

614.99

178

.034

15.98

1.068

no

12.54

.34

*



Co

286

Ordinary kriging

Exponential

7.89

10.67

18.56

178.01

0.0005

3.21

1.025

no

2.53

0.005

*



Pb

286

Disjunctive kriging

Exponential

0.39

0.49

0.88

13.49

0.018

6.68

1.09

no

4.06

0.018

*



Cd

286

Radial basis function

-

-

-

-

-

0.002

0.097

-

-

0.67

0.002

-

-

Fe

286

Disjunctive kriging

Exponential

0.52

0.7

1.22

123.97

0.0005

0.58

1.05

no

0.46

0.00005

*



Cr

286

Ordinary kriging

Exponential

241

669

910

178

0.006

20

1.11

no

16.25

0.006

*



Sb

286

Ordinary kriging

Exponential

0.086

0.111

0.197

178

0.042

0.35

1.14

-

0.74

0.0048



325.5

Geostatistical analysis

Kriging and radial basis function (RBF) were employed to investigate the spatial variations of heavy metals. All such analyses were performed in ArcGIS 9.3 (Esri, CA, USA). The precision of the methods was compared using the jack-knife technique and root mean square error (RMSE), mean bias error (MBE), and mean absolute error (MAE) which are all valid indices (Table 7). Based on the results, the most appropriate methods were disjunctive kriging for Fe, Zn, As, and Pb, ordinary kriging for Cr, Ni, Sb, and Co, and RBF for Cd and Cu (Figure 7).

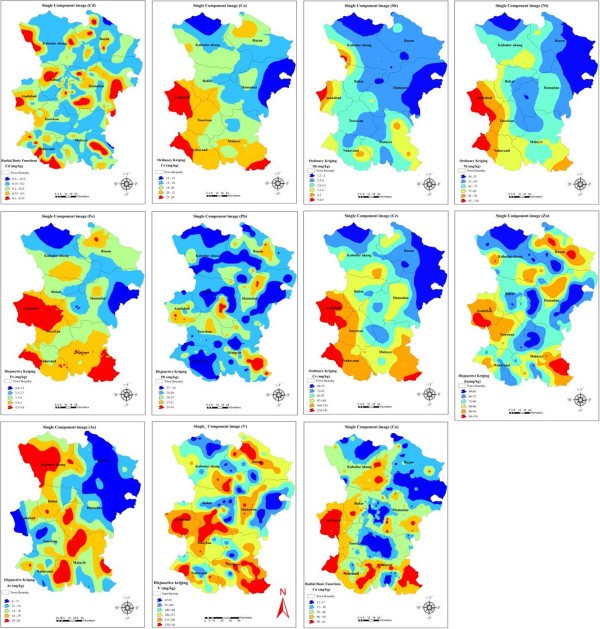

Figure 7

Single-component image of the study area (index values in PPw).

FCC

According to Pearson’s correlation analysis (Table 4), the elements were divided into four groups: Fe, V, and Co; Cu, Ni, and Cr; Pb and Zn; and Sb and Cd. Single-component images were standardized (0–255) to prepare the FCC map. Two-three elements were then combined based on the above-mentioned classifications and using the FCC method (Figure 8a and b). As the prepared images did not yield information about more than three elements in recognizing the hot-spots, after standardization of single-component images, the elements were categorized into two groups based on their correlation level. Consequently, Fe, V, Co, Cu, Ni, and Cr were allocated to the first category and Pb, Zn, As, Sb, and Cd were placed in the second. The two groups were then combined using weighted linear combination (Figure 8c). This process simplified the analysis of hot-spot positions. In other words, to identify the anomalies of the elements (combined distribution of elements in each area), weighted linear combination and overlaying were applied on single-component images and the heavy metal hot-spots were recognized. Red and blue areas in Figure 8c have high and low anomalies, respectively.

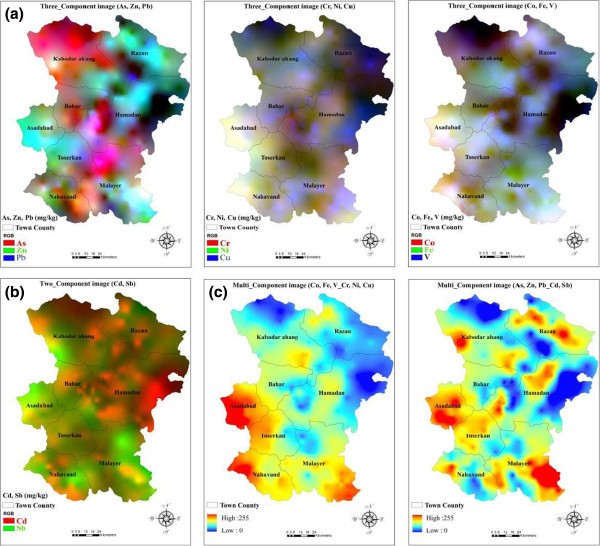

Figure 8

Three-component (a), Two-component (b) and Multi-component (c) color composition of the study area.

Discussion

Correlation analysis

The results of spatial correlation analysis (Table 4) showed that the mean estimation error and RMSE for all variables were close to the ideal values (zero and one, respectively). This suggests high precision of our estimations. There was also a great spatial correlation between the concentrations of elements (especially As, Fe, Co, Ni, and Cr) in the samples. In other words, the concentrations of elements in closer samples were more similar to each other probably due to the effects of natural factors such as parent material, topography, and soil type. However, human factors (e.g. fertilizing) might have been responsible for weak spatial structure of Zn, V, and Pb.

MAE and MBE indices were calculated to assess the precision and deviation of interpolation models, respectively (Table 7). As these indices measure the difference between the measured and the estimated values, values closer to zero indicate higher spatial precision of the model and lower deviation, respectively (Hassani-pak 1998; Mohammadi 2006).

Zoning maps

According to the distribution map of As (Figure 7), the element had the highest concentrations (20–50 mg/kg) in the northwest, two spots in the southwest and some spots in the center of the province. The geological structure of these areas comprised metamorphic rocks, shale, marl, and limestone.

The distribution maps showed the highest concentrations of Fe, Ni, Cr, and Co to be 4.0-5.9, 90–130, 140–160, and 20–30 mg/kg, respectively. These hot-spots were detected in the form of some red spots in the west, southwest, and northwest of the province. Furthermore, the bedrock was shale, igneous and alluvial rocks, and sandstone for Fe and Ni, limestone and igneous rocks for Cr, and shale-marl, sandstone, limestone, and metamorphic rocks for Co.

The highest concentration of Cd in the studied soils varied between 0.30 and 0.35 mg/kg (Figure 7) and was demonstrated as some spots throughout the province. It was found on geological structure of shale-marl, limestone, and alluvial rocks.

The distribution map of Zn suggested the maximum level of the element (100–130 mg/kg) to exist in the west, southeast, northeast, and partly in the center of the province on limestone, metamorphic rocks, and shale bedrocks.

The greatest concentration of Sb ranged from 5.0 to 9.8 mg/kg (Figure 7) and was seen in the form of two spots on igneous stones and shale bedrocks.

Overlaying of the distribution maps of As, Fe, Cd, Zn, Cr, Ni, and Sb, land use maps, and geological strata of the studied area revealed that the distribution pattern of the elements did not conform to the land use pattern of the area. On the other hand, since the concentration of each element is naturally high in its bedrock (Table 8) (De vos et al. 2005), the most important factor affecting the concentration of the mentioned elements in soil must have been the geological structure (bedrock).
Table 8

The mean concentrations of elements in different bedrocks



Cu

Fe

Zn

Cr

Pb

Ni

V

Sb

Cd

Co

Ultramafic

40

9.6

50

1600

1

-



0.09

Sandstone

-

0.5



35

10

20



<1



Shale

50

4.7

50-90

90

23

90

90-260

1.5



0.8

Limestone

-

0.98

50

11

-

<5



0.15



As Figure 7 illustrates, areas with Pb concentration higher than 30 mg/kg were located in the southeast, center, and west of the province on igneous, metamorphic sandstone, shale, and limestone. Irrigated agriculture, pasture, and mining land use in these areas results in overuse of fertilizers and chemical herbicides in them. Moreover, sandstone and shale naturally have high concentrations of Pb (Table 8) (De vos et al. 2005).

Maximum Cu and V content of soil was 50–63 and 120–160 mg/kg, respectively (Figure 7). These values were detected in the west, southwest, and southeast of the province as well as some spots in the center. The bedrocks were shale and limestone for Cu and shale, igneous rocks, sandstone, and limestone for V. The concentration of these two elements is generally high in shale (Table 8). Meanwhile, overlaying of their distribution maps and the area’s land use map showed excessive use of fertilizers and chemical herbicides in the agricultural activities performed in these lands. Hence, although the high concentration of Cu and V can be mainly justified by natural factors such as shale, lime, and alluvium bedrock, the accumulation of these elements in agricultural lands with unwarranted use of chemical fertilizers (the mean annual use of urea, potash, and phosphate fertilizers is about 500–700, 200–230, and 300–558 kg per hectare, respectively) can be expected.

Comparisons between our findings and the mean values in Europe and the world (Table 9) led to the conclusion that excluding Cd (which had a concentration lower than that in Europe and the world) and Pb (whose level was lower than the mean level in Europe), all elements had higher values in the studied area compared to Europe and the world.
Table 9

Comparison of the concentrations of elements in the studied area with the values from the region, Europe, and the world (Facchinelli et al., 2001 ; Franco-Uria et al., 2009 )



Europe mean

Area mean

World median

Area median

As

11.6

15.79

5

12.5

Cu

17.3

36.2

25

35.5

Fe

2.17

2.94

4

4

Cd

0.284

0.15

0.3

0.11

Zn

60.9

80.03

70

76

Cr

94.8

96.81

80

94

Co

8.91

18.95

10

19

Pb

32.6

25.66

17

24

Ni

37.3

69.03

50

68

V

68.1

109.41

90

110

Sb

1.04

2.9

0.5

2.5

Facchinelli et al. (2001) concluded that while Cu, Ni, Cr, and Co concentrations are controlled by bedrock, and Pb and Zn content of soil is influenced by human factors. Similarly, Leo et al. (2007) found Cu, Ni, Zn and Cr levels and Zn and Cd levels to depend on bedrock and human factors, respectively. Mico et al. (2006) reported that the amounts Cu, Fe, Ni, Zn, Cr, and Co are affected by bedrocks, but Cd content changes based on human factors such as the use of phosphate fertilizers. Lado et al. (2008) assessed heavy metals in the soils of Europe and concluded that Cu, Pb, Cd, and Zn have high correlations with agriculture and limestone, whereas Cr and Ni levels are related to bedrocks. Inácio et al. (2008) evaluated the soils of Portugal to prepare a geochemical atlas. They suggested revealed that while the concentrations of As and Cr are controlled by parent material, the amount of V depends on mining activities (precipitation of ores). Likewise, Jiachun et al. (2004) indicated As content to be controlled by bedrock but to also be relatively dependent on human resources. They found the concentration of Cd to be affected by not only natural factors but also human activities.

Factor analysis

As it can be seen in the zoning map of factor 1, correlation coefficients of variables in each sample ranged from −0.93 to +2.76. High positive correlations existed between the seven elements in the southeast, southwest, and west where igneous and shale bedrocks were present. In contrast, high negative correlations were seen between the seven elements in the east and northwest on shale bedrocks.

Zoning map of factor 2 shows the correlations between the variables of each sample to vary between −1.24 and +4.40. High positive correlations between Cu and Cd were detected as four blue spots in the north and center of the province on alluvium bedrock. High negative correlations were demonstrated as orange spots throughout the province on shale, igneous, metamorphic, and limestone bedrock.

According to the zoning map of factor 3, correlations of variables in each sample took values between −1.31 and +4.20. High positive correlations were observed between Pb and F on shale and lime bedrocks in the southeast of the province. On the other hand, high negative correlations between the two elements were clear in the west and south (on alluvium bedrock) where agriculture is the most common land use. Other areas had values between these figures.

For factor 4, correlations between variables ranged from −0.84 to +4.14. High positive correlations between Sb and As were observed on shale, lime, igneous, and metamorphic bedrocks in the southeast, northwest, and partly center of the province. High negative correlations occurred on alluvium bedrock in the east of the province where the land is dominantly used for agricultural purposes. Values in other areas lay between these two figures.

Correlations between these metals can indicate their common source, i.e. bedrock. Factor analysis maps can generally yield useful results about the source of heavy metals. In fact, negative and positive correlations mainly suggest the effects of human activities and geological sources, respectively.

In a study on heavy metal (Zn, Cd, As, Pb, Ni, Cu, and Hg) pollution and landscape patterns, Pin Lin et al. (2002) categorized the metals using factor analysis and then prepared the zoning maps of four factors. They concluded that the first (Ni, Cd, and Cr) and second factors (Pb, Zn, and Cu) were transferred to soil as a direct result of human activities. Similarly, studies in Italy (Facchinelli et al. 2001), northern Spain (Gallego et al. 2002), and other parts of Spain (Rodriguez Martin et al. 2006) classified Cr, Co, and Ni in the same factor and found them to be controlled by parent material of soil.

Moller (2005) reported that Cu in urban areas is produced following human activities. Mico et al. (2006) and Franco-Uria et al. (2009) suggested Cd, Cu, Pb, and Zn concentrations to change mainly through human activities. Rodriguez Martin et al. (2006) mentioned transportation and traffic as the main factors contributing to high levels of Zn and Pb in the soils of Spain. Mico et al. (2006) claimed that Pb is transferred to agricultural soils of Spain via atmospheric deposition and use of chemical fertilizers. On the contrary, Fe, Cr, and Co levels are basically controlled by parent material (Franco-Uria et al. 2009).

FCC analysis

FCC colors the three elements in each group as red, green, and blue. For instance, in a composition of As, Zn, and Pb, blue, red, and green will represent high concentrations of As, Zn and Pb, respectively. High levels of all elements will result in white areas. Black, on the other hand, shows minimum concentrations of all three elements. Therefore, as Figure 8 suggests, these three element had maximum levels in the southeast, northwest, west, and southwest of the province. Cd, Fe, and Vas well as Cr, Ni, and Cu (Figure 8a) had the highest concentrations in the west, southwest, and southeast of the province. In Figure 8b, the green and red areas correspond high levels of Sb and Cd, respectively.

In the maps produced by combining single-component images through weighted linear combination (Figure 8c), red areas (e.g. area number 1) illustrate high amounts of all five elements (As, Zn, Pb, Cd, and Sb). These areas were located on shale, alluvium, and igneous bedrocks and indicate the hot-spots of the mentioned elements. Areas 2 and 3 (in purple) have a layer with maximum content and a layer with minimum content. In other words, area 2 contained high concentrations of As, Pb, and Zn but low levels of Cd and Sb which is consistent with its shale, igneous, and alluvium bedrocks. However, the opposite was true in area 3. Blue areas suggested low values in both layers. In Figure 8c, the elements are at their maximum values in the west, southwest, and southeast. Based on our findings, FCC could clearly depict areas with high and relatively low concentrations of heavy metals.

Conclusions

The current research aimed at locating the hot-spots of pollution with heavy metals. Its most significant findings are summarized below:

Comparison of the mean levels of heavy metals in Hamadan Province and other parts of Iran, suggested higher concentrations of As, Zn and V in the studied area than in Isfahan. The mean level of Zn was higher than that in Mashhad but lower than the value in Sepahanshahr. The mean concentrations of Cd and Pb were lower than the levels in Isfahan and Sepahanshahr, respectively.

Comparisons between the obtained levels and the mean values in Europe and the world (Table 8) revealed that except for Cd and Pb, the concentrations of all other elements were higher in Hamadan Province than in Europe and the world. Overlaying of land use maps and those obtained from sampling revealed that higher concentrations of some elements in their bedrocks compared to standard levels existed in the agricultural lands where high amounts of chemical fertilizers are used.

Overlaying of zoning maps of the elements and land use and geological layer maps showed that the distribution pattern of the studied elements did not fully conform to the existing land use pattern. On the other hand, as the level of each element is naturally high in its bedrock, it seems that the main factor affecting the concentrations of heavy metals in the studied soils must have been the geological structure (bedrock). However, excessive use of chemical fertilizers and industrial pollution (in case of Pb) should not be ignored.

According to factor analysis, the studied heavy metals lay in four factors. This strong correlation can be caused by a common source of transfer to soil through agricultural activities, atmosphere, or parent material of soil. Moreover, while the measured elements had maximum levels in shale, igneous stone, limestone, and sandstone bedrocks, their concentration was minimum in alluvium.

The zoning maps of pollution probability showed 99.65% of the area to have Cd values under the threshold. Meanwhile, 100% of the area had Co and Sb concentrations higher than the threshold. Levels of As, Zn, Cu, V, Ni, Pb, Fe, and Cr were higher than the determined threshold in 80%, 90%, 98%, 99.7%, 70%, 98.8%, 85%, and 90% of the studied area. It can thus be concluded that the area had a more appropriate situation regarding Cd compared to other heavy metals. Greater management and filtering programs are essential to control the transfer of Co, Sb, As, Zn, V, Ni, Pb, Fe, and Cr.

Our findings indicated FCC to be an appropriate and fast method for analyzing heavy metal pollution hot-spots. Weighted linear combination could also locate the hotspots by clear depiction of areas with high and relatively low levels of heavy metals.

Declarations

Authors’ Affiliations

(1)
Department of Natural Resources, Isfahan University of Technology
(2)
Environmental Sciences, Department of Natural Resources, Isfahan University of Technology
(3)
Department of Agriculture, Payam-e-Noor University

References

  1. (2007). investigation of sludge disposal positioning in Hamadan province, meteorological reports, hydrology, geology, pedology, tectonic seismic prone and integrating to GIS. University of Shahid Beheshti research assistant; 2007.Google Scholar
  2. Blom HA: Heavy metal contamination of soils. Norway: Agri Univ; 1985.Google Scholar
  3. Bonham-carter GF, Rogers PJ, Ellwood DJ: Catchment basin analysis applied to surficial geochemical data, Cobequid highlands, Nova Scotia. J Geochem Explor 1987, 29: 259–278. 10.1016/0375-6742(87)90081-1View ArticleGoogle Scholar
  4. Bowen HJM: The environmental chemistry of elements. London, New York: Academic press; 1979.Google Scholar
  5. De vos W, Batista MJ, Demetriades A, Duris MJ, Lexa J, Lis J, Sina K, O’ c PJ: Metallogenic mineral provinces and world class Ore deposits in Europe. In Geochemical Atlas of Europe: part 1 background information, methodology and maps. Edited by: Salminen R, Batista MJ, Bidovec M, Demetriades A, De Vivo B, De Vos W, Duris M, Gilucis A, Gregorauskiene V, Halamic J, Heitzmann P, Lima A, Jordan G, Klaver G, Klein P, Lis J, Locutura J, Marsina K, Mazreku A, O’Connor PJ, SÅ O, Ottesen RT, Petersell V, Plant JA, Reeder S, Salpeteur I, Sandström H, Siewers U, Steenfelt A, Tarvainen T. Geological Survey of Finland; 2005.Google Scholar
  6. Eastman JR: Idrisi Andes - tutorial, Clark Labs. Worcester, MA: Clark University; 2006.Google Scholar
  7. Facchinelli A, Sacchi E, Mallen L: Multivariate statistical and GIS-based approach to identify heavy metal sources in soils. Environ Pollut 2001, 114: 313–324. 10.1016/S0269-7491(00)00243-8View ArticleGoogle Scholar
  8. Franco-Uria A, Lopez-Mateo C, Roca E, Fernandez-Marcos ML: Source identification of heavy metals in pastureland by multivariate analysis in NW Spain. J Hazard Mater 2009, 165: 1008–1015. 10.1016/j.jhazmat.2008.10.118View ArticleGoogle Scholar
  9. Gallego JLR, Ordonez A, Loredo I: Investigation of trace. “Element sources from an industrialized area (A viles, northern Spain) using multivariate statistical methods”. Environ 2002, 27: 589–596.Google Scholar
  10. Hassani-pak A: “geo statistic”, the second edition. Iran: University of Tehran press; 1998:286–314.Google Scholar
  11. Inácio M, Pereira V, Pinto M: The soil geochemical Atlas of Portugal:overview and applications. J Geochem Explor 2008, 98: 22–33. 10.1016/j.gexplo.2007.10.004View ArticleGoogle Scholar
  12. Jiachun S, Haizhen W, Jiaming X, Jianjun W, Xingmei L, Haiping Z: Spatial distribution of heavy metal in soils: a case study of changing. China. Environ Goel 2004, 52: 1–15.Google Scholar
  13. Lado LR, Hengel T, Reuter HI: Heavy metals in European soils: a geostatistical analysis of the FOREGS geochemical database. Geoderma 2008, 148: 189–199. 10.1016/j.geoderma.2008.09.020View ArticleGoogle Scholar
  14. Lame B, Leenaers L: International ash working group. Brussels: EEA; 1997. 1999 1999Google Scholar
  15. Lindsay WL: Chemical equilibria in soils. New York: John Wiley & Sons; 1979.Google Scholar
  16. Mico C, Recatala L, Peris M, Sanchez J: Assessing heavvy metal sources in agricultural soils of an European Mediterranean area by multivariate analysis. Chemosphere 2006, 56: 863–872. doi:810.1016/J.Chemosphere. 2006.1003.1016View ArticleGoogle Scholar
  17. Mohammadi J: “Pedometry”, the second volume, spatial statistic. pelk press; 2006:262–279.Google Scholar
  18. Moller A: Urban soil pollution in Damascus, Syria: concentrations and patterns of heavy metals in the soils of the Damascus Ghouta. Geoderma 2005, 124: 63–71. 10.1016/j.geoderma.2004.04.003View ArticleGoogle Scholar
  19. Pin Lin Y, Teng TP, Chang TK: Multivariat analysis of soil heavy metal pollution and landscape pattern in Changhua county in Taiwan. Landscape Urban Plan 2002, 62: 19–35. 10.1016/S0169-2046(02)00094-4View ArticleGoogle Scholar
  20. Rodriguez Martin JA, Lopez Arias M, Grau Corbi JM: Heavy metal contents in agricultural topsoils in the Ebro basin (Spain): application of multivariate geostatistical methods to study spatial variations. Environ Pollut 2006, 144: 1001–1012. 10.1016/j.envpol.2006.01.045View ArticleGoogle Scholar
  21. Romic M, Hengl T, Romic D, Husnjak S: Representing soil pollution by heavy metals using continous limitation scores. Comput Geosci 2007, 33: 1316–1326. 10.1016/j.cageo.2007.05.002View ArticleGoogle Scholar
  22. Suyash Kumar KD, Shirke N, Pawar J: GIS-based colour composites and relays to delineate heavy metal contamination zones in the shallow alluvial aquifers, Ankaleshwar industrial estate, south Gujarat, Ipdia. Environ Geol 2007, 54: 117–129.View ArticleGoogle Scholar

Copyright

© Soffianian et al.; licensee Springer. 2014

This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
