Spatial distribution of non-point source nitrogen in urban area of Beijing City, China

Environmental Systems Research20132:12

https://doi.org/10.1186/2193-2697-2-12

Received: 30 November 2013

Accepted: 20 December 2013

Published: 28 December 2013

Abstract

Background

Non-point source (NPS) pollution, has been dominant in many urban areas, causing nutrient loss, water body pollution and aqueous systems damaging. Among the pollutants, nitrogen is a key nutrient which can cause eutrophication of rivers, lakes and reservoirs. Beijing, the capital of China, has a booming economy and a huge population. Various human activities have affected nitrogen accumulation deeply and caused considerable NPS pollution. This research calculated the annual load of NPS nitrogen in urban area of Beijing City (UABC) in 2005 and simulated its spatial distribution, which may be useful for environmental planning and pollution control of the UABC and cities with intensive human activities.

Results

The total NPS nitrogen load of the UABC was is 1083.09 t in 2005. The load of agricultural land, construction land and unused land were 92.04 t, 969.29 t and 21.77 t. As far as spatial distribution is concerned, construction land was with heavy pollution. Chaoyang district, Haidian district and Fengtai district were the most major export regions of NPS nitrogen loads. The loads of them were 376.88 t, 286.87 t and 249.92 t. As for load intensity of NPS nitrogen, the high-load sources were distributed in the Xicheng district and Dongcheng district, of which the load intensities were 1.10 km2/t and 1.11 km2/t respectively. Among agricultural land, construction land and unused one, the high-load source was distributed in construction land.

Conclusions

Therefore, exhaust gas emission should be reduced, and roof greening as well as road sweep should be improved.

Keywords

Spatial distribution Non-point source Nitrogen Urban area of Beijing city

Background

With the effective control of point source pollution, Non-point source (NPS) has become the major cause of water pollution in many countries, such as the UK (Whitehead et al. 2007), China (Ding et al., 2010) and the USA (Emili and Greene 2013). For rivers and lakes in urban areas, NPS pollution in the form of runoff from urban areas has contributed greatly to the degradation of flow in the receiving water bodies (Sartor et al. 1972; Kang et al., 2013). NPS pollution in urban areas has become an important issue for aquatic environments and has therefore received increased attention in recent years (Rossi et al., 2006; Kang et al., 2013). NPS pollution in urban areas is not easily identified and characterized which adds significantly to the issues of source analysis, load calculation, and distribution simulation. Spatial distribution simulation in the typical urban area has its great importance of revealing the impact method of human activities on water pollution quantificationally.

Therefore, researches on NPS pollution in urban areas have been done in the fields of the runoff monitoring (Wada et al., 2006; Krometis et al., 2007), load simulation (Ward & Dudding, 2004; Brown & Peake, 2006; Duzgoren et al., 2006), and pollution control (Chimney & Pietro, 2006; Kang et al., 2006). Beijing City is the capital of China, in which water pollution caused by NPS pollution is increasingly outstanding (Jing, 2008; Wang, 2011). The Urban area of Beijing City (UABC) is the core zone of Beijing and with very intensive human activities. Intensive human activities together with torrential rains cause NPS become a major pollution source of receiving water bodies in the UABC. Studies on NPS pollution in the UABC have been also done on pollutant monitoring, component analysis and water quality assessment of runoff, as well as strategies on stormwater use and pollution control. The result indicated that NPS has become an important factor affecting urban water environment due to heavy rains and increasing impervious surface areas during the process of urbanization (Jin, 2008; Wang, 2011). Main NPS pollutants in the UABC were organic pollutants, nutrients and suspended solids (Che et al., 2002). Pollutant concentrations in rainfall-runoff were high in the early stage, especially in the first 40 minutes. Then the pollutant concentrations decreased, and reached stable values finally (Wang, 2004). Water qualities in rainfall-runoffs of various land use types were in different levels. That of grassland was better than that of land for roofed buildings, which was also superior to that of road (Liu et al., 2008). Pollution control of initial stormwater was significant for water environmental protection and stormwater utilization in the UABC (Liao et al., 2007).

It can be found that researches have been done mainly focus on field monitoring, establishing the relation between rainfall-runoff and pollution, and putting forward countermeasures and suggestions. Temporal scales of the researches focused on single or multiple storms, and spatial scales were only several monitoring sites. Researches on numerical calculation of annual load, its spatial simulation and its characteristic analysis of the UABC have not been reported. However, numerical simulation and distribution analysis in macro spatial-temporal scale is significant, which may provide more efficient and feasible decision support for pollution control and stormwater use.

Methods

Study area

Urban area of Beijing City, covering an area of 1368.32 km2, is located in the northwest of the Huabei Plain, and accounts for 8.14% of the entire area of Beijing City (See Table 1 and Figure 1). The administrative region of UABA contains Xicheng district, Dongcheng district, Chaoyang district, Haidian district, Shijingshan district and Fengtai district (See Figure 1). It is the most developed area in the city and has a very high population density (8562 per square kilometer). About 59.74 percent of the city’s population lives in UABC even though it accounts for much less percent of the city’s area. Due to its special geographic location and atmospheric circulation pattern, torrential rain occurs frequently in summer over the UABC. Moreover, rainfall is the main driving force of NPS contamination, which leads to serious NPS pollution occurrence in the study area.
Table 1

Area and population of the UABC in 2010 (Leading group office of Beijing sixth national population census, Beijing Municipal Bureau of Statistics, Beijing survey office of National Bureau of Statistics of China 2011 )

No.

Administrative region

Area (km2)

Percent of the area (%)

Population (million person)

Percent of the population (%)

1

Dongcheng district

50.53

0.30

0.92

4.69

2

Xicheng district

41.86

0.25

1.24

6.34

3

Chaoyang district

455.08

2.71

3.55

18.08

4

Haidian district

430.73

2.56

3.28

16.73

5

Shijingshan district

84.32

0.50

0.62

3.14

6

Fengtai district

305.80

1.82

2.11

10.77

7

UABC

1368.32

8.14

11.72

59.74

8

Beijing city

16807.80

100.00

19.62

100.00

Figure 1

Map of the research area.

Model description

The export coefficient model (ECM), which is based on the idea that the nutrient loads exported from a watershed equals the sum of the losses from individual sources, has been used in many studies. The model allows accurate estimation and analysis of nutrient pollutants (Johns, 1996). The ECM is outlined as:
L = i = 1 n E i A i I i + p
(1)

where L is loss of nutrients (kg), E i is export coefficient for nutrient source i (t/km-2 year-1), A i is area of the catchment occupied by land use type i (km2), I i is the input of nutrients to source i (kg), and p is the input of nutrients from precipitation (kg). The ECM model has been applied in several watersheds, but no research is reported for a total urban area.

Data collection and preparation

Taking into account the research needs and data availability, the database for this research is as presented in Table 2. The land use map of 2005 was interpreted from the Thematic Mapper image provided by Beijing municipal people's government, China. The interpreted land use of the UABC was classified into agricultural land (plough, garden plot, woodland, grassland, and other farmland), construction land (land for roofed buildings, road, independent industrial and mining area, land for transport, and land for water conservation facilities), as well as unused land. The area of the UABC occupied by various land use types were obtained from the interpreted land use map which was digitized and evaluated in each grid (see Table 3). The input of nitrogen from precipitation was determined by monitoring data which was considered as an average value in the different land use types. The layer of export coefficient was related to each spatial unit and those coefficients were determined.
Table 2

Available data for the UABC

Type

Scale

Source

Land use

1:1 500 000

RS image digitalizing and interpreting, Beijing municipal people's government, China

Landform

1:250 000

National geomatics center of China

Administrative division

1:1 500 000

Beijing municipal bureau of statistics

Social economics

Each district

Beijing municipal bureau of statistics

Export coefficient

Each nitrogen source

Literature, statistical data, and field monitoring

Table 3

Areas of various land use types in the UABC

No.

District

Areas of various land use (km2)

Agricultural land

Construction land

Unused land

1

Xicheng

0.00

50.53

0.00

2

Dongcheng

0.00

41.86

0.00

3

Chaoyang

146.60

299.27

9.21

4

Haidian

207.93

215.46

7.34

5

Shijingshan

32.84

48.37

3.12

6

Fengtai

88.67

193.25

23.87

7

UABC

476.03

848.75

43.54

Determination of the export coefficient

The export coefficients were derived from literature sources as well as calibration using the hydrology and water quality data. An approach has been developed based on the mass balance of the pollutant to determine the export coefficients of different land use types (Ding et al., 2010).

First, the export coefficient of a specific land use type was defined as E i , (i =1, 2, 3, …, n), with n land use types. Next, m small sub-watersheds (m > n) are chosen from the entire research area and the NPS pollution yield equation for each sub-watershed is established as follows:
L = PS + i 1 E A i I i i + p
(2)

where L is the loss of nitrogen (kg), PS is the point source pollution load (kg), E i is export coefficient of land use type i (kg/km2 · yr), A i is area of land use type i (km2), and I i is annual input load of the NPS pollutants from land use type i (kg).

The left side of Eq. (2) can also be expressed as:
L = C Q k
(3)

where C is the annual mean observed concentration of the NPS pollutants in the outlet of the sub-watershed (g/L), Q is the annual total stream flow measured in the outlet (m3), and k is the loss coefficient of the NPS pollutants in the sub-watershed.

With E i set as unknown, the other parameters on the right side of Eq. (2) can be calculated as follows:
PS = C d Q d D a k × 365
(4)

where C d is mean observed concentration of the NPS pollutants during the dry season in the outlet of the sub-watershed (g/L), Q d is total flow volume during the dry season at the outlet (m3), and D d is the number of days in the dry season.

Then, Eq. (2) can be transformed to:
C Q k = C d Q d D d k × 365 + i = 1 n E i A i I i + p
(5)
With the analysis described above, we can obtain m equations for the m sub-watersheds, and the following equation group is established:
C 1 Q 1 k 1 = C d 1 Q d 1 D d 1 k 1 × 365 + i = 1 n E i A i 1 I i 1 + p 1 C 2 Q 2 k 2 = C d 2 Q d 2 D d 2 k 2 × 365 + i = 1 n E i A i 2 I i 2 + p 2 C m Q m k m = C dm Q dm D dm k m × 365 + i = 1 n E i A im I im + p m
(6)
The export coefficient, E i , for the different land use types can be deduced through optimization using the Genetic Algorithm (GA) and are listed in Table 4.
Table 4

Export coefficients of NPS nitrogen sources in the UABC (t/km 2 · yr)

Land use

Nitrogen source

Export coefficient

Agricultural land

Plough

0.23

Garden plot

0.08

Woodland

0.20

Grassland

0.30

Other farmland

0.15

Construction land

Land for roofed buildings

1.09

Road

1.33

Independent industrial and mining area

1.31

Land for transport

1.41

Land for water conservation facilities

1.10

Unused land



0.50

Results and discussion

Annual load of NPS nitrogen

Annual load of NPS nitrogen pollution was 1083.02 ton in 2005 and most of it occurred with urban storm. In terms of the hydrological term scale, 80 percent of the NPS nitrogen pollution concentrated in wet period (June, July and August). Therefore, it can be found that nitrogen loss is positive correlation with the rainfall, which indicates that NPS nitrogen pollution accumulates in dry seasons and occurs in wet seasons with rainfall and soil erosion.

Spatial distribution of NPS nitrogen in different regions

By geographic information system (GIS), the spatial distribution of NPS nitrogen load in the UABC in 2005 is simulated as Figure 2 shows.
Figure 2

Spatial distribution of NPS nitrogen pollution of the UABC (2005).

The spatial distribution of NPS nitrogen load in different administrative regions is shown in Table 5. The percentages of NPS nitrogen loads of different administrative regions are shown in Figure 3. It can be found that Chaoyang district, Haidian district and Fengtai district are major regions carrying NPS nitrogen loads, while the NPS nitrogen loads in other districts are relatively low. The main reason is that the areas of the three districts are much larger than the other ones.
Table 5

Spatial distribution of NPS nitrogen in different administrative regions (2005)

No.

District

NPS nitrogen load (t)

Percent of the total load of UABC (%)

1

Xicheng district

55.62

5.14

2

Dongcheng district

46.35

4.28

3

Chaoyang district

376.88

34.80

4

Haidian district

286.87

26.49

5

Shijingshan district

67.46

6.23

6

Fengtai district

249.92

23.07

7

UABC

1083.09

100.00

Figure 3

Percentages of NPS nitrogen loads of different regions in the UABC (2005).

Spatial distribution of NPS nitrogen in various land use types

As for various land use types, spatial distributions of NPS nitrogen loads in them are shown in Table 6. The percentages of NPS nitrogen loads of various land use types are shown in Figure 4. It can be found that NPS nitrogen export varies in different land use types. The loads of agricultural land, construction land and unused land in the research area in 2005 were 92.04 t, 969.28 t, and 21.77 t. It can be seen that the region with heavy NPS nitrogen pollution is construction land which accounted for 89.49% of the total load of the UABC. Large area and the high NPS nitrogen export are the reasons of heavy pollution in construction land. In the research, land for roofed buildings mean the land in which residential buildings, office buildings, or any other roofed buildings are constructed. Among the various types of construction lands, land for roofed buildings is the one output the most dominant pollution for its largest area and relatively high NPS nitrogen export. The pollution source of land for roofed buildings is the roof, which can’t be swept routinely. NPS nitrogen accumulates in roofs during dry seasons and loses in rainfall events during wet seasons. Especially in the course of the first rainfall in a wet season, nitrogen pollutants accumulated for several months are scoured by roof runoff, which causes serious NPS nitrogen pollution in the UABC.
Table 6

Spatial distribution of NPS nitrogen loads in different land use types (2005)

Type of land use

NPS nitrogen load (t)

Percent of the total load of UABC (%)

Agricultural land

Plough

29.47

2.72

Garden plot

4.47

0.41

Woodland

43.93

4.06

Grassland

6.62

0.61

Other farmland

7.55

0.70

Construction land

Land for roofed buildings

743.24

68.62

Road

40.01

3.69

Independent industrial and mining area

68.01

6.28

Land for transport

112.17

10.36

Land for water conservation facilities

5.85

0.54

Unused land

21.77

2.01



UABC

1083.09

100.00

Figure 4

Percentages of NPS nitrogen loads of various land use types.

As for various land use types, spatial distributions of NPS nitrogen loads in them are shown in Table 6. The percentages of NPS nitrogen loads of various land use types are shown in Figure 4.

Spatial distribution of load intensity of NPS nitrogen

An important index of NPS pollution analyzing is load intensity, which means pollution load per unit area (such as t/km2) and can mitigate the effect of areas on loads). As for various administrative regions, spatial distribution of load intensity of NPS nitrogen is shown in Table 7. Load intensity of NPS nitrogen is as shown Figure 5.
Table 7

Spatial distribution of load intensity of NPS nitrogen in various regions

No.

District

Load intensity of NPS nitrogen (km2/t)

Ratio to the average value of UABC

1

Xicheng district

1.10

1.39

2

Dongcheng district

1.11

1.41

3

Chaoyang district

0.83

1.05

4

Haidian district

0.67

0.85

5

Shijingshan district

0.80

1.01

6

Fengtai district

0.82

1.04

7

UABC

0.79

1.00

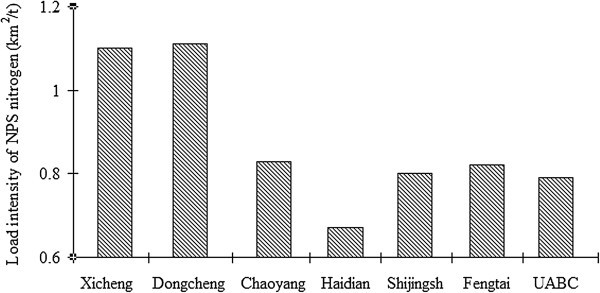

Figure 5

Load intensity of NPS nitrogen in various administrative regions.

The high-load sources were distributed in the Xicheng district and Dongcheng district, human activities in which are much more intensive than those of other districts. The land use of the two districts include construction land exclusively, so it can be deduced that accumulated nitrogen pollutants in roofs and those in roads caused by exhaust gas emission are the main sources of NPS nitrogen. The lowest-load source is distributed in Haidian district. This could be explained by the fact that the percent of construction land in the total district area is 49.98%, which is lower than that of any other districts. The load intensities of NPS nutrogen in other districts (i.e., Chaoyang district, Fengtai district and Shijingshan district) are in the middle level.

As for load intensity of NPS nitrogen in various land use types, the high-load source is distributed in construction land, which is the dominant one in the UABC. Large quantities of nitrogen pollutants are accumulated in building roofs and urban roads, which causes high load intensity of NPS nitrogen in construction land. The lowest-load source is agricultural land which could be explained by the fact that nitrogen export of it is relatively low due to the positive effect of soil and water conservation.
